Soundproof Aluminium Sliding Doors with Tempered Glass

Soundproof Aluminium Sliding Doors with Tempered Glass

$75-150 /Square Meter

Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-SD029

Brand: Wendou

Warranty Service: More Than 5 Years

Place Of Origin: China

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

Thermal Break Aluminum Sliding Doors Structural Advantages

Broken Bridge Insulation Design

PA66 nylon insulation strips separate the inner and outer cavities of the aluminum alloy profile, blocking the heat conduction path. When used with insulating glass (e.g., 5+12A+5mm), the overall heat transfer coefficient (K value) can be reduced to 1.8-2.5W/(m²·K), saving over 40% energy compared to ordinary single-glazed doors.

Multi-chamber Sealing System

Three EPDM sealing strips are installed between the door frame and the glass, combined with hidden drain holes, achieving national standard airtightness level 8 and watertightness level 6, effectively blocking wind and rain intrusion while reducing noise penetration.

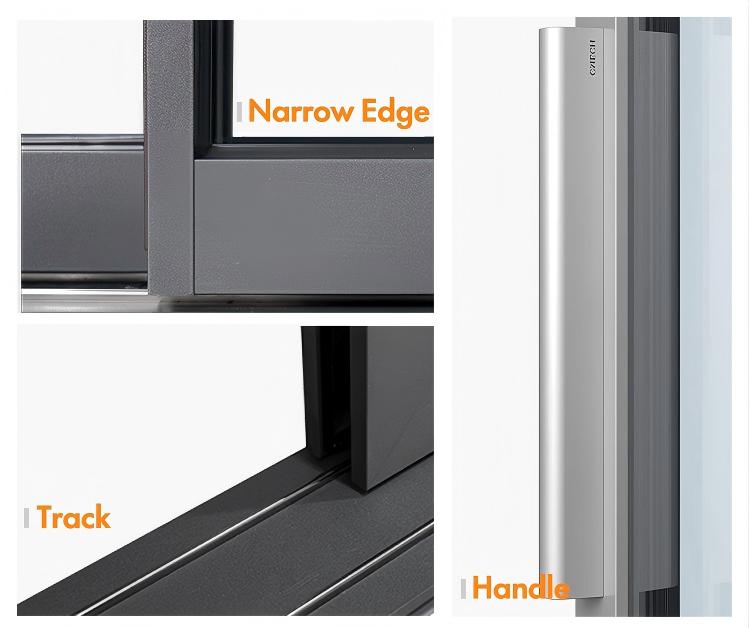

Silent Slides and Buffers

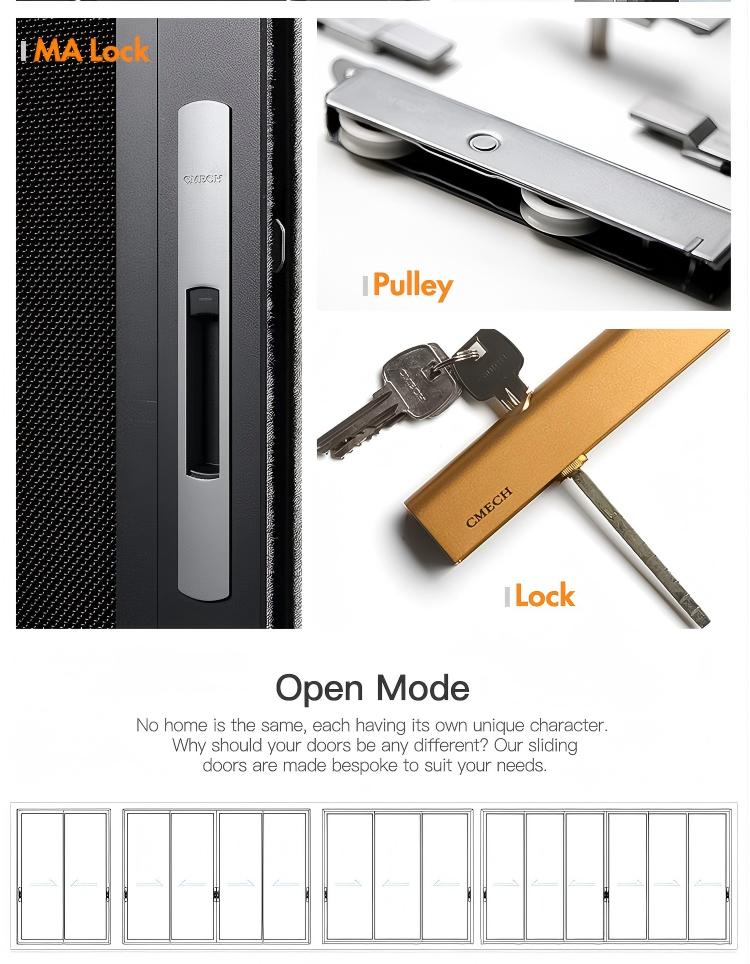

The tracks feature built-in high-precision rollers (bearing diameter ≥ 15mm), anti-jump devices, and cushioning pads, resulting in an operating noise level of ≤35dB. The electric drive system also enables remote control and intelligent sensor-based opening and closing.

Aluminum Sliding Doors Material Features

High-strength aluminum alloy profiles

Using 6063-T5/T6 alloy with a wall thickness of 1.6-2.0mm, they offer wind pressure resistance up to a Category 12 typhoon. The surface is anodized or fluorocarbon-coated for salt spray corrosion resistance and a service life exceeding 25 years.

Safety tempered glass

Glass is 6-12mm thick and undergoes a 695°C high-temperature quenching treatment. Its impact strength is five times that of ordinary glass, and it shatters into small, blunt-angled particles, reducing the risk of personal injury. Optional Low-E coating reflects over 80% of infrared radiation, reducing air conditioning load.

Environmentally friendly and recyclable materials

Both the aluminum alloy and glass are 100% recyclable, and the energy consumption during production is only 5% of that of virgin aluminum, meeting LEED green building certification standards.

Exterior Patio Panoramic Aluminum Sliding Doors Applications

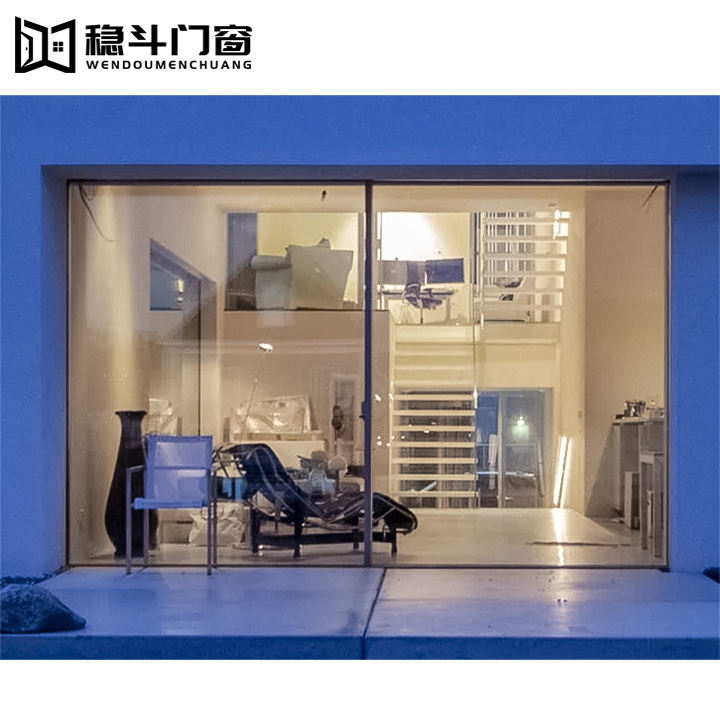

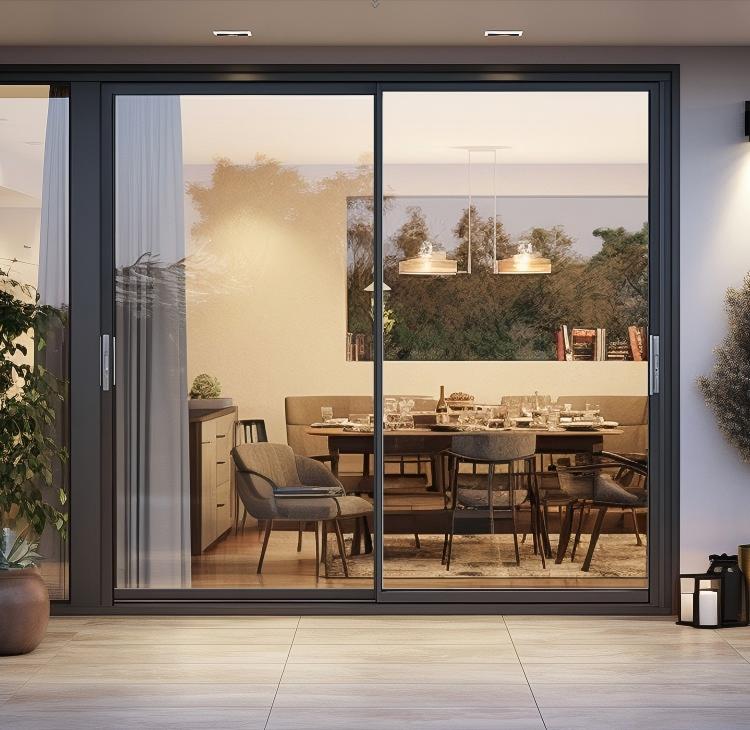

Residential

As entrances to balconies, terraces, or courtyards, they provide unobstructed views and soundproofing. It can reduce indoor temperatures by 3-5°C in summer and improve insulation efficiency by 40% in winter. Combined with electric sliding rails, it enables unmanned operation.

Commercial and Public Buildings

In hotel lobbies, restaurant outdoor areas, or shared office spaces, extra-wide sliding doors (up to 6 meters wide) allow for quick transitions between indoor and outdoor settings, improving space utilization and overall luxury.

Extreme Climate Regions

In coastal areas, the wind-resistant structure and anti-corrosion treatment can withstand force 14 winds. In cold regions, the thermally insulated design and double-glazed glass ensure condensation-free operation in temperatures as low as -30°C, ensuring operational operation.
