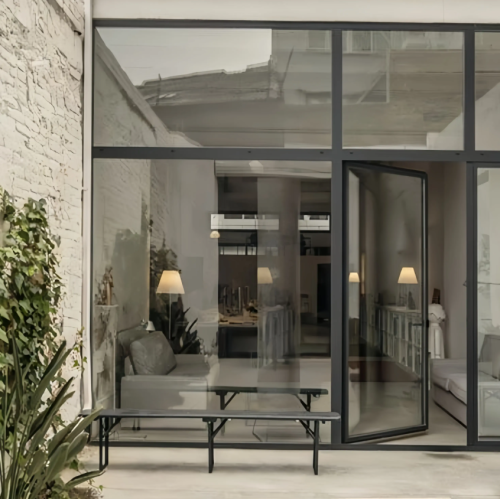

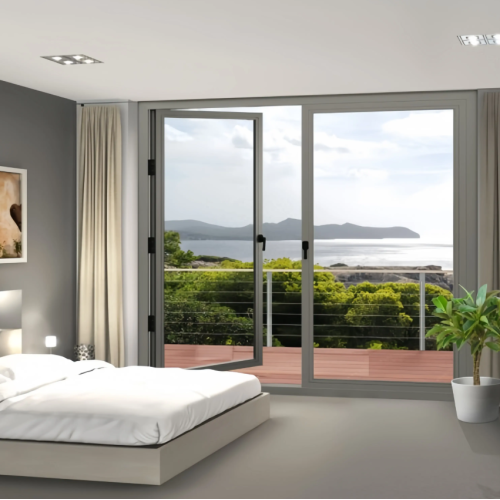

Slimline Aluminum Casement Doors

$75-150 /Square Meter

Frame material	Aluminum Alloy
option
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,EXW,CIF
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-CD028

Brand: Wendou

Warranty Service: More Than 5 Years

After-sales Service: Online Technical Support, Onsite Installation, Onsite Inspection, Onsite Training

Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects

Application Scenario: Hotel, Villa, Apartment, Hospital, Supermarket, Warehouse, Farmhouse

Design Style: Traditional, Modern, Farmhouse, Industrial, European, Transitional, Japanese, Chinese, French

Place Of Origin: China

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T

Incoterm: FOB,CFR,EXW,CIF

Product Description

1. Structural features of Aluminum Casement Doors

Narrow frame design

The width of the door frame is usually controlled below 25mm. Some high-end models can achieve a 2mm hidden frame design, which greatly reduces visual barriers and enhances the sense of space transparency. The aluminum keel and aluminum crossbar structure are used, and the thickness of the door leaf is 4.5cm, which not only ensures strength but also achieves a light and thin appearance.

Multi-point locking system

A multi-point locking structure is configured between the door frame and the door leaf, combined with hidden hinges (such as floor hinges or side hidden hinges) to achieve all-round sealing. This design not only enhances the anti-theft performance, but also effectively blocks noise, dust and rainwater penetration.

High-strength glass configuration

8mm explosion-proof glass or 8.38mm laminated float glass is standard, and some models support Low-E coating or double-layer insulating glass, taking into account safety and insulation requirements. The large-material casement windows used in the project use powder coating technology to achieve long-term non-fading, while meeting the requirements of anti-rust, waterproof and anti-termite.

Modular hardware system

Integrated with top German or Chinese brand hardware (such as magnetic locks, damping hinges), supports two-way damping push-pull or flat opening functions, smooth operation and life of more than 10 years. Some models are also equipped with smart lock systems to enhance user experience.

2. Data features of Aluminium Casement Swing Doors

Dimensional flexibility

The maximum size of a single door can reach 1500mm in width × 3500mm in height, which can meet the needs of large-span openings. Some models achieve a balance between load-bearing and lightweight through 1.4mm-2.0mm profile thickness.

Thermal performance

The U value (heat transfer coefficient) ranges from 0.24-0.6 W/(m²·K), and with warm edge spacers and argon filling, it can reduce energy consumption by more than 30%. Under the Australian AS2047 standard certification, the air leakage rate is as low as 0.3 m³/(m·h), meeting harsh climatic conditions.

Acoustic performance

Through double-glazing and sealed structure, the noise reduction capacity reaches 35-40 decibels, which is suitable for noise-sensitive areas such as airports and viaducts. After the commercial complex adopts this type of door, the indoor noise is reduced from 75 decibels to below 40 decibels.

Durability index

The aluminum alloy profile is treated by anodizing or powder spraying, and the corrosion resistance reaches the AAMA 2605 standard, with a service life of more than 20 years. The hardware has passed the 100,000 opening and closing test to ensure long-term stable operation.

3. Design advantages

Space optimization

The narrow frame design reduces the space occupied by the door leaf and increases the effective use area. The folding door model can save more than 50% of the opening space, which is suitable for small apartments or public areas.

Style adaptability

A variety of surface treatments (metal primary color, wood grain transfer, fluorocarbon spraying) and customized colors are available to match modern minimalist, industrial style or retro architectural styles. The minimalist narrow frame door is finished with smoked wood veneer to achieve the collision of natural texture and metal texture.

Enhanced security performance

Multi-point locking system combined with anti-pry design, it cannot be opened violently from outside. Some models have passed the European RC2 anti-theft certification to meet the security needs of high-end residences.

Sustainability

Aluminum alloy is 100% recyclable and meets the LEED green building standards. With Low-E glass and energy-saving hardware, it can reduce the building's carbon footprint.

4. Applicable buildings for High Quality Aluminium Casement Door Waterproof

High-end residences

Applicable to scenes such as villas and large flats, introducing natural light through large-size glass and narrow frame design to create a transparent living experience. High-end projects use this type of door as the main entrance door to improve the overall grade.

Commercial buildings

Shopping centers, office buildings and other places use its high light transmittance and modern design to create open commercial spaces. In the renovation of historical buildings, the steel-gray aluminum alloy swing doors are used to achieve a fusion of classic and modern.

Public facilities

Hospitals, schools and other places use its sound insulation and dustproof performance to ensure the quality of the indoor environment. Some models support fireproof design and meet the requirements of fire protection regulations.

Cultural venues

Museums, art centers, etc. integrate cultural elements into door design through customized carving or hollowing technology, becoming the visual focus of the building.
