Modern Design Home Casement Window Door

$75-150 /Square Meter

option
Contact Now

Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-CD034

Brand: Wendou

Warranty Service: More Than 5 Years

Place Of Origin: China

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CFR,CIF,EXW

Product Description

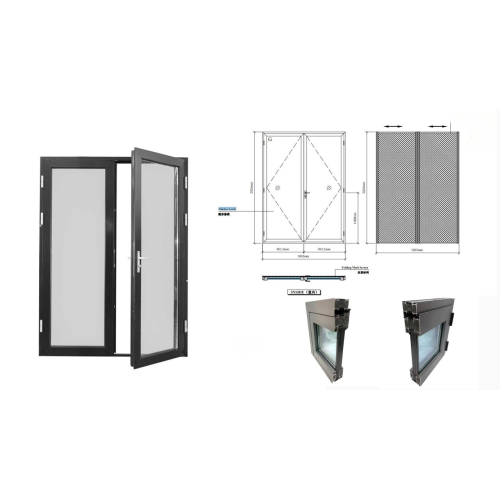

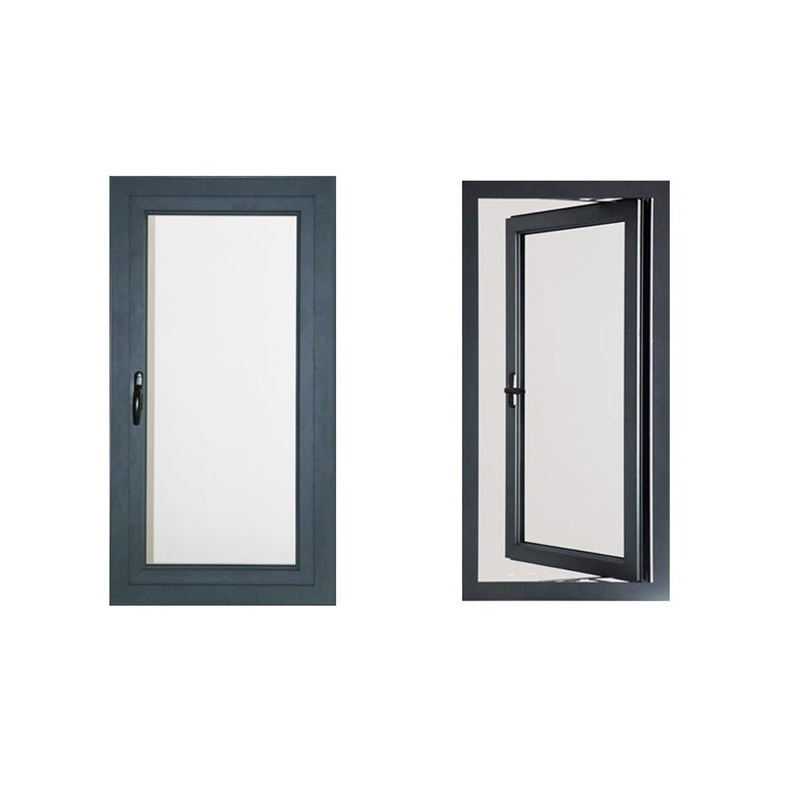

Modern Design Home Casement Window Door

1. Appearance Features: The Fusion of Minimalist Lines and Transparent Views

Modern-designed Aluminum Casement Doors embody the "less is more" philosophy, creating a simple and fluid visual effect through ultra-narrow frames, concealed hardware, and integrated glass design.

Appearance features include:

Frameless design: Aluminum Doors use high-strength aluminum alloy or fiber-reinforced materials, compressing the frame width to less than 3 cm. Combined with large-area double-glazed glass, this creates a nearly frameless, transparent effect, enhancing the connection between indoor and outdoor spaces.

Geometric line cutting: The window frame contours mainly feature right angles or slightly curved lines, eliminating complex decorations and enhancing the modern feel through metallic luster or matte texture. Some high-end products use beveled frame technology to enhance the three-dimensional layering.

Concealed opening system: Through embedded hinges and concealed handle design, the window sash fits perfectly with the frame when opened, preventing traditional protruding hardware from disrupting the overall aesthetics.

2. Material Types and Performance Advantages

Aluminum Alloy Frame

Advantages: Strong corrosion resistance, suitable for coastal or humid environments; low thermal conductivity, achieving excellent energy-saving effects with thermal break strips; lightweight and high strength, supporting large-span designs.

Technological breakthrough: Using 6063-T5 aerospace-grade aluminum, the surface hardness reaches over 6H through anodizing or fluorocarbon spraying, improving scratch resistance by 30%.

Fiber-Reinforced Composite Materials

Advantages: Thermal expansion coefficient is close to glass, reducing sealing failure caused by temperature differences; impact resistance is twice that of aluminum alloy, suitable for high-rise buildings' wind pressure requirements; recyclability rate reaches 95%, meeting green building standards.

Application example: A certain brand of fiber window frame passed extreme environment tests from -40℃ to 80℃, with a deformation rate of less than 0.2% within 5 years.

Glass Configuration Upgrade

Triple-glazed double-cavity structure: The hollow layer is filled with argon gas and equipped with warm-edge spacers, resulting in a heat transfer coefficient as low as 0.6W/(㎡·K), saving 40% more energy than double-glazed windows.

Smart dimmable glass: The light transmittance can be adjusted electronically, achieving a balance between privacy protection and lighting, with a response time of less than 0.1 seconds.

3. Core Application Scenarios

Passive Buildings: In conjunction with fresh air systems, micro-ventilation design achieves 24-hour air exchange while maintaining indoor thermal stability.

Seaside View Apartments: Utilizing anti-salt spray coatings and optimized drainage design to address the corrosion and water leakage problems of traditional windows.

Urban High-Rise Residences: Enhanced hardware systems withstand wind pressure exceeding level 12, and anti-fall devices improve safety.

Commercial Space Renovation: Modular design supports rapid installation, with single window sizes up to 3m × 2.5m, meeting the needs of lobbies, exhibition halls, and other scenarios.

4. Target Procurement Groups

High-End Residential Developers: Focus on product premium capabilities, requiring products certified by German PHI or LEED Gold standards to enhance project quality.

Renovation Project Contractors: Prefer lightweight, easy-to-install fiber composite windows to reduce transportation and construction costs.

Smart Home Integrators: Require electrically operated window systems that support IoT control, enabling linkage with central air conditioning and security systems.

Users in Extreme Climate Regions: Choosing ultra-low U-value windows in cold regions and composite windows with integrated shading functions in tropical regions.

5. Selection Decision

Performance Parameter Prioritization

Northern Regions: Air tightness (National Standard Level 8 or higher) > Thermal insulation (K value ≤ 1.0) > Wind pressure resistance

Southern Regions: Water tightness (National Standard Level 6 or higher) > Ventilation volume (single window ≥ 0.5 m³/s) > Sound insulation

Certification System Verification

Domestic Projects: Check the "Building Doors and Windows Energy Saving Performance Label Certificate" and CCC mandatory certification.

Export Projects: Confirm EU CE certification, US AAMA certification, or Australian AS2047 standard.

Detailed Design Review

Drainage System: Check the isobaric chamber design and hidden drainage hole layout.

Hardware Lifespan: Require hinges to complete 50,000 opening tests without failure.

Sealing Solution: Confirm the use of EPDM rubber strips + siliconized wool strips for double sealing.

Cost Optimization Strategies

For bulk purchases, the unit price of Aluminum Alloy Windows can be reduced. Prioritize standard sizes; Custom Aluminium Doors will incur an additional 15%-25% cost.

Considering the total life cycle cost, high-quality products reduce maintenance costs by 40% over 25 years compared to ordinary products.

6. Industry Trend Insights

The market will show two main trends in 2025:

Performance iteration: Vacuum glass technology is gradually maturing, and the heat transfer coefficient is expected to break through 0.3 W/(㎡·K).

Intelligent integration: Automatic window opening systems with built-in temperature and humidity sensors can be seamlessly integrated with smart home platforms.
