Australia Standard Aluminium AS2047 Sliding Door

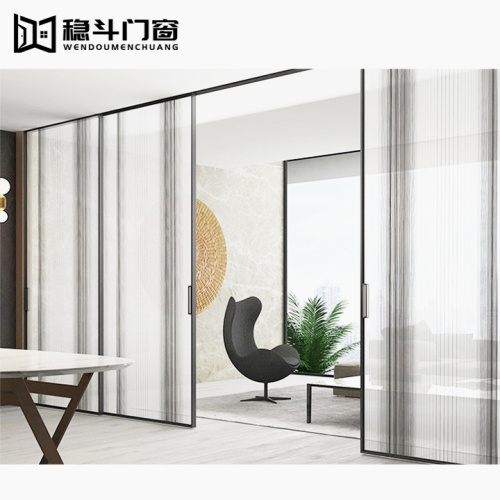

Australia Standard Aluminium AS2047 Sliding Door

$75-150 /Square Meter

Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-SD032

Brand: Wendou

Warranty Service: More Than 5 Years

Place Of Origin: China

Variety: Sliding Doors

Door Material: Aluminum Alloy

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

WENDOU WD-SD019 meets Australia AS2047 & BAL-40 standards, featuring 6063-T6 aluminum frames. Withstands 17-level typhoons (60m/s wind), K-value ≤1.8 W/(m²·K) saves 40% energy. 3000h salt spray resistance, 38dB soundproofing. CE/LEED certified, 5+ year warranty, 12,000 units/month supply. Ideal for Australian coastal villas, matching Thermal Break Aluminum Sliding Doors.

Product Overview

WENDOU AS2047 Aluminium Sliding Door (WD-SD019) is tailored for Australia’s extreme climates. Its BAL-40 certification ensures typhoon resistance, while 6063-T6 aluminum (tensile ≥215MPa) outperforms ordinary 6063-T5 profiles. The sliding design balances panoramic vision and sealing, complementing Custom Aluminum Windows to create integrated building solutions for residential and commercial projects.

Technical Specifications

Model: WD-SD019;

Material: 6063-T6 aluminum (2.0-2.5mm) + 5mm+16Ar+5mm double-glazed glass;

Standard: AS2047, BAL-40;

Wind resistance: 6000Pa (transient), 4000Pa (continuous); Size: 1.2-2.0m(W)×2.2-3.0m(H);

K-value: ≤1.8 W/(m²·K); Soundproofing: ≥38dB;

Hardware: 150kg-load pulley (150,000 cycles);

Corrosion resistance: 3000h salt spray;

Lock: RC3 anti-theft;

Warranty: 5+ years;

Output: 144,000 units/year.

Product Features & Advantages

1. BAL-40 Typhoon Resistance: Withstands 60m/s winds (17-level typhoon), door leaf deflection only 32mm (≤50mm standard).

2. Super Energy Efficiency: 6-chamber profile + PA66 strips reduce thermal conductivity by 70%, saving 40% HVAC costs vs ordinary doors.

3. Durable Coating: Fluorocarbon spray (≥60μm) resists 50℃ heat, 20-year no-fading.

4. High Security: RC3 lock resists vandalism for 30 mins, laminated glass withstands 50mm hailstones. 5. Quiet Sliding: Pulley resistance ≤1.2N/m, operation noise ≤30dB, better than Soundproof Glass Aluminum Sliding Windows.

How to Use

1. Unlock: Rotate handle to disengage multi-point lock.

2. Slide: Push/pull door along tracks (sliding force ≤50N).

3. Safety Lock: Turn handle 180° to activate child lock.

4. Maintenance: Clean tracks monthly with a brush; lubricate pulleys yearly with silicone oil; check seals every 2 years.

Application Scenarios

Australian Coastal Villas (Gold Coast): BAL-40 certification withstands typhoons, reducing exterior damage by 90%.

Airports: Electric sensor version handles 10,000 daily uses, 200kg load capacity.

Hospitals: Antimicrobial coating meets hygiene standards, paired with Aluminum Casement Windows for quiet wards.

Desert Areas (Dubai): Sealing blocks sand, cutting cleaning costs by 60%.

Certifications & Compliance

Meets Australia AS2047, BAL-40, EU CE, LEED, and GB/T 7106 Class 9. Aluminum passes 3000h salt spray (AA25 grade); glass complies with EN 12600 1B1. Fire-resistant variant meets GB 50016, compatible with Aluminum Sunrooms for green buildings.

Customization Options

Size: 1.2-2.0m width (custom for large openings);

Coating: Fluorocarbon/anodizing (RAL 300+ colors);

Glass: Double-glazed/Low-E/laminated (hail-resistant);

Functions: Electric sensor, wind-sensing auto-lock;

Style: Narrow frame (modern) matches Thermal Break Aluminum Casement Windows.
