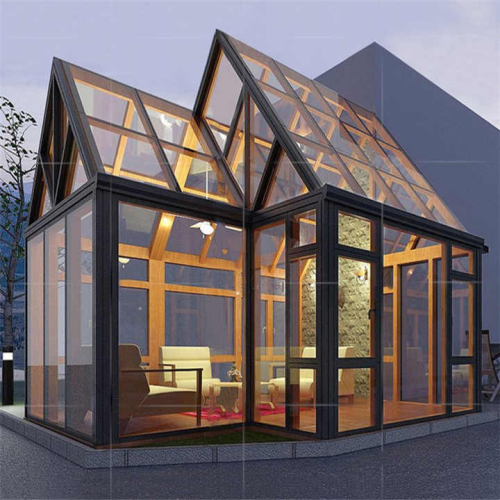

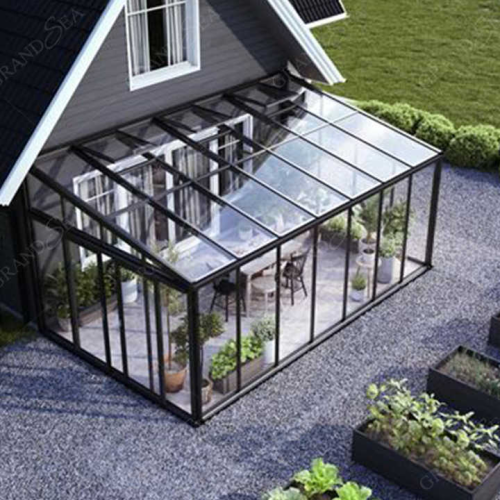

Custom Size Aluminum Conservatories

$75-150 /Square Meter

Frame material	Aluminum Alloy
option
Contact Now

Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-AS012

Brand: Wendou

Warranty Service: 5 Years

After-sales Service: Free Spare Parts, Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection

Application Scenario: Villa, Outdoor, Exterior

Design Style: Contemporary, Modern, European, Asian, Chinese, French

Place Of Origin: China

Roof Material: Insulating Glass, Sun Sheets &Amp; Pc Embossed Sheets, Tempered Glass

Application: Villa

Color: Customized Color

Frame Material: Aluminum Alloy Material

Size: Customized Size

Usage: Enjoy Harmless Sunshine

Structure: Aluminium Alloy Structure Frame

Material: Aluminum Alloy Profile+Tempered glass+Hardware

Glass: Tempered glazing+Laminated glazing+Low-E glazing+Reflective glazing+Frosted glazing

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: China

Supply Ability: 10000㎡/ per month

Certificate: NFRC/CE/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA

Product Description

Custom-Sized Aluminum Conservatories (Customized Aluminum Conservatories) utilize an aluminum alloy frame as their core structure, utilizing a modular design to achieve complete customization of space size, shape, and functionality.

1. Aluminum Sunrooms Core Features

Full-Size Customization: Supports spans from 3m x 3m to 12m x 6m, with heights exceeding the 4.5-meter limit, meeting the needs of uniquely shaped spaces such as villa courtyards and commercial terraces. For example, a private estate has created a 15-meter curved sunroom, utilizing segmented splicing technology for seamless integration.

Ultra-Thin Frame Design: The aluminum alloy profile can be as small as 40mm x 60mm, 60% thinner than traditional steel frames. Combined with double-layer insulating glass (6mm + 12A + 6mm), it achieves 82% light transmittance and a heat transfer coefficient of 0.8W/(m²·K).

Intelligent Integrated System: Optional electric sunshades (adjustable transmittance from 10% to 90%), a fresh air ventilation system (air exchange rate up to 300 m³/h), and a photovoltaic glass roof (power generation efficiency of 18%) create a self-circulating ecological space.

2. Material Advantages of Aluminum Alloy Frame

Structural Performance:

Using 6063-T6 aluminum alloy, the yield strength reaches 215 MPa, three times that of PVC, and can withstand a snow load of 1.2 kN/m² (compliant with EN 1991-1-3).

The thermal expansion coefficient is 23.2 × 10⁻⁶/K, six times more stable than wood, effectively preventing seal failure caused by seasonal deformation.

Durability:

The surface treatment utilizes a three-coat, two-bake process (epoxy primer + polyester topcoat + fluorocarbon clearcoat), with a film thickness of ≥ 80 μm. It has passed a 2000-hour salt spray test (ISO 9227) and has a service life exceeding 30 years. The modular node design reduces the cost of replacing individual components, saving on overall replacement costs.

Environmental Benefits:

The aluminum alloy recycling rate is 95%, and production energy consumption is only 60% of that of PVC, meeting LEED v4.1 certification requirements.

The insulating glass spacers utilize warm edge technology (heat transfer coefficient ≤ 0.007 W/(m·K)), achieving 15% energy savings compared to aluminum spacers.

3. Customized Aluminium Sunroom Option Matrix

Geometry: Single-pitch/Double-pitch, Curved, Gothic-style, and Polyhedron Combination Structures

Door Systems: Lift-and-slide Doors (Maximum Width 4m), Electric Folding Doors (Opening Angle 180°), and Pivoting Doors (Diameter 3.6m)

Glass Configurations: Low-E Coated Glass (Shading Coefficient 0.32), Electrochromic Glass (Response Time ≤ 5min), and Laminated Safety Glass

Details: Imitation Wood Grain Transfer (Color Chart Covering RAL 8000 Series), Bronze Anodized, and Recessed LED Light Strips (Color Temperature 2700K)

4. Aluminium Glass Solarium Sunroom Application Scenarios

High-End Residences:

This project features a custom curved sunroom, equipped with a ground-source heat pump system, maintaining a 22°C indoor temperature without heating in winter.

The villa's electric folding doors allow for a seamless transition between indoor and outdoor spaces in just 30 seconds.

Commercial Spaces:

Michelin restaurants utilize transparent sunrooms to create "open-air dining pods." Combined with HEPA filtration systems, these facilities maintain PM2.5 levels below 10μg/m³ even on smoggy days.

Shopping malls utilize photovoltaic glass-roofed sunrooms, generating 120,000 kWh annually and meeting 30% of their electricity needs.

Public Facilities:

The botanical garden's tropical greenhouse utilizes a double-layer aluminum alloy frame structure, with the outer layer capable of withstanding wind pressures up to 12kPa and the inner layer maintaining a constant temperature of 28°C.

Community libraries utilize openable sunrooms for natural ventilation, reducing mechanical ventilation energy consumption by 45% annually.

5. Core Purchasing Group

High-End Developers:

Demand Characteristics: They seek premium pricing for projects and are willing to pay a 15%-20% cost premium for customization.

Decision Factors: Frame color matching with the building facade, glass U-value (must be ≤1.0W/(m²·K)), and wind pressure resistance (must pass a level 10 wind pressure test).

Commercial space operators:

Demand characteristics: They prioritize space utilization and operational efficiency, requiring a product lifespan of 25 years or longer and an annual maintenance cost of 0.5 yuan/㎡ or less.

Five-star hotels use bulletproof glass sunrooms for VIP reception areas, certified to EN 1063 BR4.

Private property owners:

Demand characteristics: They have a strong desire for customization, with 70% of clients requesting non-standard dimensions (width > 6 meters or height > 3.5 meters).

Decision factors: Compatibility with intelligent control systems, sound insulation performance (Rw ≥ 35dB), and the presence of emergency escape devices.
