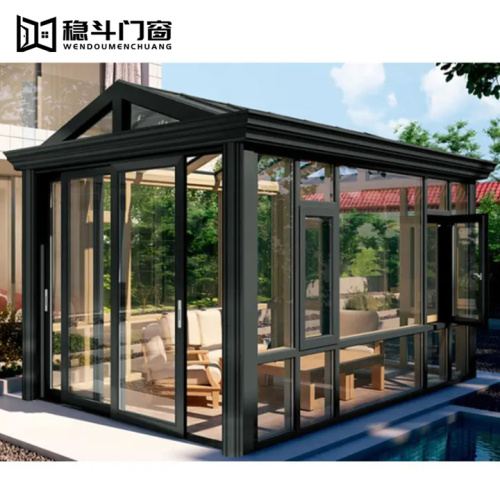

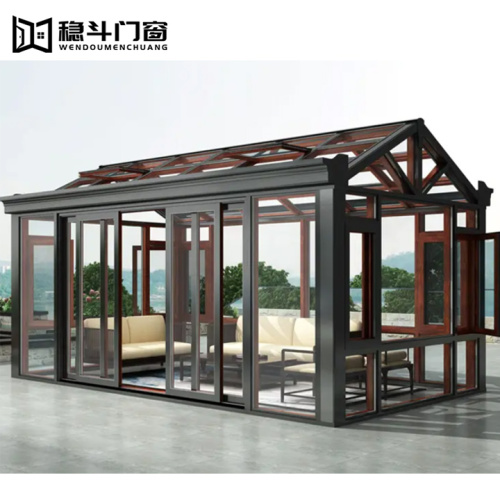

Freestanding Aluminum Garden Rooms

$75-150 /Square Meter

Frame material	Aluminum Alloy
option
Contact Now

Payment Type: L/C,T/T,Paypal
Incoterm: FCA,FAS,EXW,CIF,CFR,FOB
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-AS014

Brand: Wendou

Warranty Service: 5 Years

After-sales Service: Online Technical Support, Free Spare Parts, Onsite Installation, Onsite Training, Onsite Inspection

Application Scenario: Villa, Outdoor, Exterior

Design Style: Contemporary, Modern, European, Asian, Chinese, French

Place Of Origin: China

Roof Material: Insulating Glass, Sun Sheets &Amp; Pc Embossed Sheets, Tempered Glass

Application: Villa

Color: Customized Color

Frame Material: Aluminum Alloy Material

Size: Customized Size

Usage: Enjoy Harmless Sunshine

Structure: Aluminium Alloy Structure Frame

Material: Aluminum Alloy Profile+Tempered glass+Hardware

Glass: Tempered glazing+Laminated glazing+Low-E glazing+Reflective glazing+Frosted glazing

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: China

Supply Ability: 10000㎡/ per month

Certificate: NFRC/CE/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T,Paypal

Incoterm: FCA,FAS,EXW,CIF,CFR,FOB

Product Description

Freestanding aluminum garden rooms utilize a high-strength aluminum alloy frame as their core structure, combined with insulated glass, a retractable roof, and a modular design to create year-round outdoor space.

1. Core Features

Freestanding Layout: Without attachment to a main building, they can be flexibly placed in courtyards, terraces, or gardens, increasing space utilization by 40%.

All-season Adaptability: Double-glazed insulating glass (K value ≤ 1.2W/(m²·K)) and a motorized sunshade system improve insulation efficiency by 35% in winter and 30% in summer.

Smart Control: Integrated wind and rain sensors, a photovoltaic-driven ventilation system, and app-based remote control automatically adjust the indoor environment.

2. Aluminum Alloy Frame Material Properties

Structural Strength and Durability

Selected from 6063-T5 aluminum alloy, it boasts a yield strength of 180MPa, wind pressure resistance tested to a force 12 typhoon (wind pressure ≥ 3.5kPa), and can withstand a snow load of 1.2kN/m². The profile surface is coated with fluorocarbon spray (film thickness ≥ 40μm), offering 20 years of weather resistance and passing 1500 hours of salt spray testing, making it suitable for coastal areas.

Optimized Thermal Performance

The thermal insulation strips utilize a PA66 + 25% glass fiber composite material with a thermal conductivity of ≤0.3W/(m·K), effectively preventing thermal bridging.

The modular design supports multi-cavity profiles (≥4 chambers). Combined with a 1.5mm wall thickness, the profiles offer 50% greater stiffness than traditional aluminum.

Environmental Protection and Recyclability

The aluminum alloy recycling rate reaches 95%, and production energy consumption is only 60% of that of PVC, meeting LEED v4.1 certification requirements.

The lightweight design (frame weight ≤ 35kg/m²) reduces transportation emissions and increases installation efficiency by 30%.

3. Energy-Saving Advantages and Technological Breakthroughs

Glass System Innovation

Low-E insulating glass: K value ≤ 1.0W/(m²·K), reducing winter heating energy consumption by 25%. Electrochromic glass: Transmittance adjustable from 10% to 80%, reducing energy consumption for artificial shading by 40%.

Photovoltaic integrated glass: Annual power generation covers 20% of the project's electricity needs (the Dubai project generates 11,000 kWh annually).

Intelligent climate control

Four-layer waterproofing: Weather-resistant adhesive, EPDM sealant, watertight tape, and an internal drainage system ensure no leakage during the rainy season.

EIB bus technology: Integrated wind, rain, and temperature sensors automatically control sunshades and skylights, achieving an 85% energy self-balancing rate.

Thermal Performance Quantification

Sunrooms With Aluminum Windows have an overall heat transfer coefficient of ≤1.0 W/(m²·K), meeting Passivhaus standards.

Insulation efficiency is improved by 35% in summer and 40% in winter, resulting in 50% energy savings compared to traditional sunrooms.

4. Application Scenarios and Functional Expansion of Aluminum Sunrooms

High-end Residential Project: 4m x 6m detached garden rooms with curved aluminum frames and a ground-source heat pump system maintain a constant temperature of 22°C year-round, reducing energy consumption by 55% compared to traditional buildings.

Villa: Electric folding doors allow for seamless transitions between indoor and outdoor spaces, and the photovoltaic roof's annual power generation meets 25% of electricity needs.

Commercial Space

Michelin-starred restaurant: Transparent garden rooms equipped with a HEPA filtration system maintain PM2.5 levels below 10μg/m³ on smoggy days, becoming "zero-energy dining pods."

Shopping Mall: The double-skin aluminum frame structure of the Aluminum Commercial Sunrooms withstands wind pressures of 12kPa, maintaining a constant inner temperature of 28°C and reducing mechanical ventilation energy consumption by 40% annually.

Public Facilities

Botanical Garden Tropical Greenhouse: Aluminum garden rooms equipped with intelligent sunshades automatically adjust light intensity, shortening plant growth cycles by 20%.

Library: Openable garden rooms allow for natural ventilation, reducing mechanical ventilation energy consumption by 35% annually and achieving LEED Platinum certification.

5. Advantages and User Value of Customized Aluminium Sunrooms

Quick Installation and Modular Design

Standardized components enable quick installation within 48 hours, reducing construction time by 60%.

Retractable roofs (such as the Gibus system) open and close in 30 seconds, adapting to changing weather conditions.

Low Maintenance and Long Lifespan

The aluminum alloy frame requires no paint or maintenance, and the self-cleaning coating on the glass reduces cleaning frequency by 80%.

Overall lifespan exceeds 30 years, reducing maintenance costs by 70% compared to wooden structures.

Return on Investment and Asset Appreciation

For example, a 30-square-meter garden room with an initial investment of approximately 120,000 yuan can be recouped within six years through energy savings and property appreciation.

A study by the Royal Institution of Chartered Surveyors (RICS) shows that residential properties with garden rooms experience a 15%-20% increase in valuation.

6. Industry Data and Market Trends

Market Growth: The global market for freestanding aluminum garden rooms has a compound annual growth rate of 12.5%, with Europe accounting for over 45% of the market. Cost Structure: Aluminum alloy profiles account for 40% of the manufacturing cost, glass 30%, the intelligent system 20%, and the remainder is installation.

Technical Direction: AI climate prediction, transparent photovoltaic glass, and self-healing coatings will become the core selling points of next-generation products.
