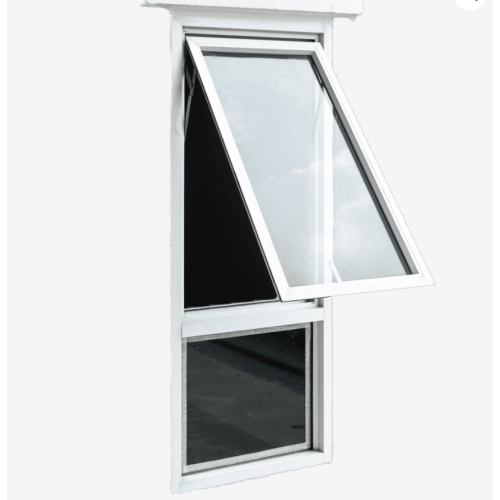

Australian Standards Profile PVC Awning Windows

$45-85 /Square Meter

Variety	Awning Windows
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: shenzhen

Description

Product Attributes

Model No.: WD-PVCA009

Brand: Wendou

Warranty Service: More Than 5 Years

Place Of Origin: China

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/ per month

Certificate: NFRC/CE/AS2047

HS Code: 7610100000

Port: shenzhen

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

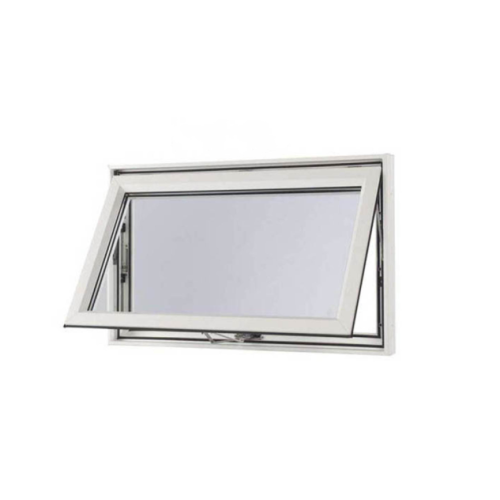

Australian Standards Profile PVC Awning Windows

1. Core Standards

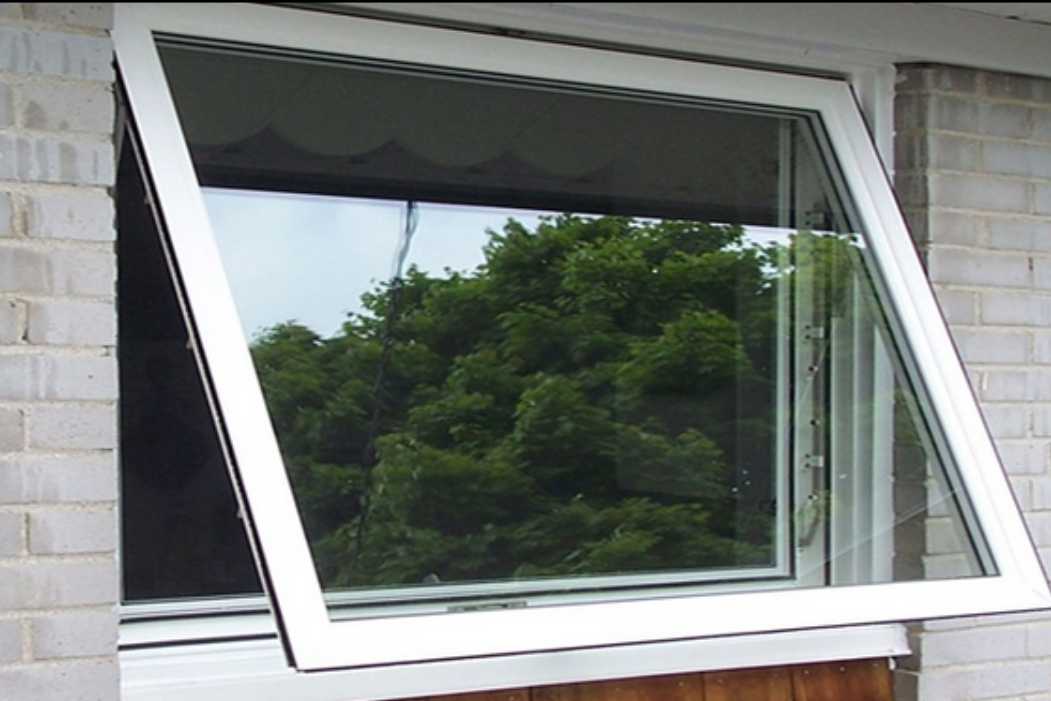

The Australian Standards Profile PVC Awning Windows are window and door systems specifically designed for the Australian climate, strictly complying with AS2047 (Building and Windows Performance Standard) and AS1288 (Glass Installation Standard). Its core design logic involves connecting the window sashes via top hinges, allowing for upward and outward opening, forming a natural rain barrier while simultaneously meeting ventilation, lighting, and energy-saving requirements.

2. Structural Features: Function-Oriented Precision Design

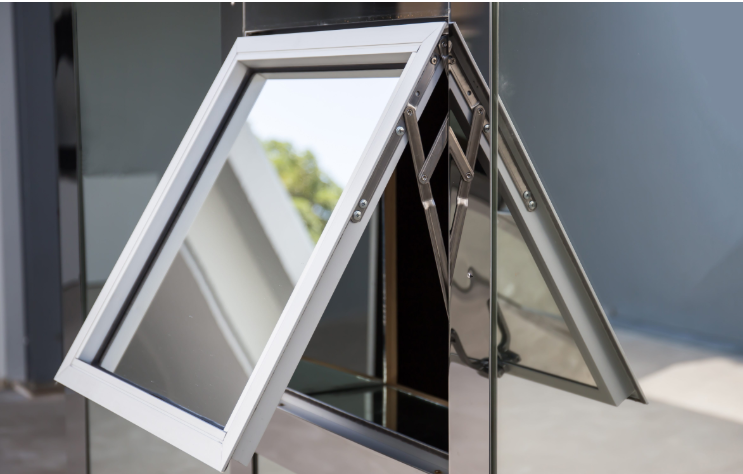

Top Hinge System

Uses stainless steel or high-strength alloy hinges with a load-bearing capacity ≥80kg/sash. PVC Awning Windows support window sash opening angles up to 45°, ensuring stable operation even in windy conditions.

Example: The hinges have passed 100,000 opening and closing tests (equivalent to 20 openings and closings per day for 13 years) without deformation or loosening.

Multi-chamber PVC Profiles

PVC Profile Windows typically have a width of 65-80mm and feature 3-7 independent internal chambers, forming an air insulation layer. Combined with a 1.2-2.0mm galvanized steel lining, they withstand wind pressure exceeding 700Pa (equivalent to a Category 12 typhoon).

Data: The heat transfer coefficient (U-value) of 6-chamber profiles can be as low as 1.3 W/(m²·K), saving 40% more energy than ordinary Aluminum Alloy Windows.

Concealed Drainage System

Integrated concealed drainage holes at the bottom of the window frame, along with a sloping design, ensure rapid rainwater drainage and prevent leakage.

Case Study: In Sydney, where annual rainfall exceeds 2000mm, this design reduces the water accumulation rate inside the window frame by 90%.

3. Material Advantages: Synergistic Effect of PVC and Tempered Glass

PVC Profile Performance

Weather Resistance: Surface coated with an anti-UV coating, passed a 6000-hour salt spray test, suitable for coastal or high-humidity areas.

Environmental friendliness: 100% recyclable, with 60% lower carbon emissions over its lifecycle than aluminum alloy windows, meeting Australian Green Star standards.

Maintenance costs: No painting or anti-corrosion treatment required; sealing strips replaced every 5 years.

Tempered glass configuration:

Safety standards: Tempered glass is mandatory for single glass panes larger than 1.5㎡, offering 5 times the impact resistance and producing blunt-angled fragments upon breakage, reducing the risk of injury.

Energy-saving options: Optional Low-E double glazing (5mm+12A+5mm), with a window U-value ≤1.8 W/(m²·K). Combined with PVC profiles, it prevents condensation by ensuring an indoor surface temperature ≥17℃ in winter.

Sound insulation: Laminated glass (6mmPVB+12mm+6mm) can reduce noise by 10dB, suitable for buildings near airports or busy commercial areas.

4. Applicable Buildings: Covering all scenarios from residential to public facilities

Residential Sector

Villas/Townhouses: Large windows (maximum 3m x 2.5m) paired with stone or wood exterior walls, creating a classic European style.

High-Rise Apartments: Small to medium-sized windows (1.2m x 1.5m) with double-glazed tempered glass, meeting the wind pressure and fire resistance requirements of the Australian Building Code (BCA).

Commercial Buildings

Hotels/Clubs: Narrow-frame design (visible profile thickness ≤ 50mm) increases the glass ratio, enhancing indoor lighting and visual transparency.

Schools/Hospitals: Antibacterial PVC surface treatment inhibits bacterial growth, meeting hygiene standards; child safety locks (opening limit ≤ 100mm) are optional.

Special Environments

Coastal Areas: Xtreme® fire-resistant option tested to AS1530.8.1, capable of withstanding BAL-40 bushfires (compliant with AS3959-2009 standards).

In cold regions: Triple-glazed, double-cavity structure (Ug value ≤ 0.6 W/(m²·K)) combined with PVC profiles reduces winter energy consumption by 35%.

5. Selection Guide: Five Steps to Match Needs

Size Customization: Custom PVC Windows can be selected according to the opening size, either standard (width ≤ 1.5m) or customized (width ≤ 3m), requiring a 5-10mm installation gap.

Example: A 2.4m wide opening can use two 1.2m windows, with a 20mm opening gap between them.

Glass Configuration

Energy Saving Requirements: Select Low-E double-glazed windows with PVC profiles; overall window U value ≤ 1.5 W/(m²·K).

Sound Insulation Requirements: Select laminated glass; noise reduction effect improved by 10dB.

Safety Requirements: Tempered glass is mandatory for large areas or high-rise buildings.

Hardware System: Hinges must be AS2047 certified, with a load-bearing capacity ≥ 80kg/window and an opening/closing cycle of over 50,000 times.

The handle can be equipped with a multi-point locking system (such as 12-point locking), improving airtightness by 30%.

Color and Surface Treatment: Standard colors are white/beige; custom colors (such as dark gray and coffee) are available from the RAL color chart.

Surface treatments include coating (low cost) and co-extrusion (scratch-resistant). Co-extrusion extends the product's lifespan by 5 years.

Certifications and After-Sales Service: Confirm product certifications (AS2047, AS1288) and check the WERS (Window Energy Efficiency Rating Scheme) label.

Prioritize suppliers offering after-sales service and warranties to reduce long-term maintenance costs.
