Double Glazed PVC Awning windows for Home

Double Glazed PVC Awning windows for Home

$45-85 /Square Meter

Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: shenzhen

Description

Product Attributes

Model No.: WD-PVCA011

Brand: Wendou

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/ per month

Certificate: NFRC/CE/AS2047

HS Code: 7610100000

Port: shenzhen

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

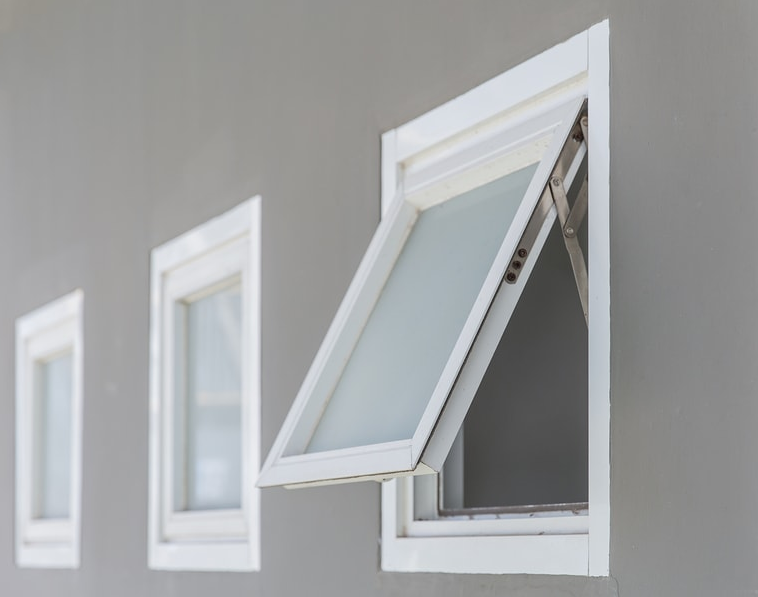

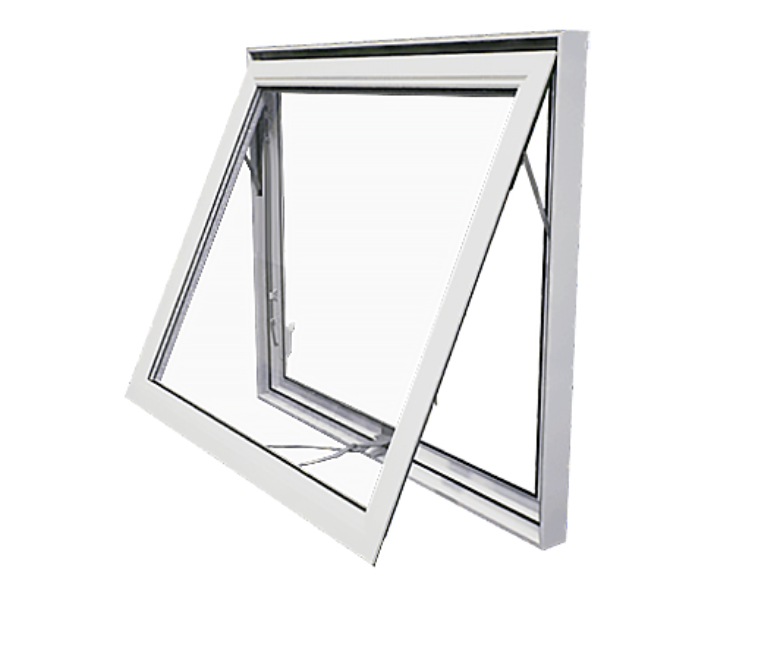

Double Glazed PVC Awning Windows for Home

1. Core Definition: A Dual Innovation in Function and Design

Double Glazed PVC Awning Windows are a type of window that is fixed at the top with hinges and opens outwards at the bottom. Combining double-glazed glass with a PVC (polyvinyl chloride) frame, they achieve a balance of ventilation, heat insulation, sound insulation, and safety. Inspired by modern European architecture, their "top-fixed + bottom-opening" mechanical structure solves the contradictions of traditional window types regarding ventilation in rainy weather, space occupation, and sealing, making them a popular choice in the global residential market.

2. Structural Features: Precision Design Enables Multi-Scenario Applications

Top Hinge System

Utilizes high-strength stainless steel hinges with a load-bearing capacity of over 50kg, ensuring the window sash remains stable and does not wobble when open. Some brands, through double-hinged designs, increase the load-bearing capacity to 80kg, suitable for large window sashes (such as living room windows exceeding 1.5 meters in width).

Double-Glass Structure

Double-glazed PVC Awning Windows consist of two 4mm panes of glass with a 16mm hollow layer (standard configuration 4/16/4). The hollow layer is filled with argon gas to reduce the thermal conductivity (U-value ≤ 1.6 W/m²·K), resulting in energy savings of over 40% compared to single-glazed windows. Some high-end models employ a triple-glazed, two-chamber design (e.g., 4/12/4/12/4), achieving a U-value as low as 0.8 W/m²·K, meeting passive house standards.

Multi-Cavity PVC Frame

The frame features 5-7 independent chambers. Thermal bridges are blocked by an air insulation layer, and German-imported sealing strips (such as EPDM material) achieve an airtightness rating of 8 (EN 12207 standard), a watertightness rating of 6 (EN 12208 standard), and a wind pressure resistance rating of 9 (EN 12210 standard).

Concealed Drainage System

Concealed drainage holes are integrated at the bottom of the window frame, along with sloping drainage channels, allowing for rapid drainage even in heavy rain and preventing backflow. Some models feature a dual drainage hole design, improving drainage efficiency by 30%.

3. Material Advantages: Synergistic Effect of PVC and Double-Layer Glass

PVC Frame: A Balance of Durability and Environmental Friendliness

Weather Resistance: By adding calcium-zinc stabilizers and UV absorbers, PVC frames have a lifespan exceeding 20 years in areas with high UV radiation (such as Australia and the Middle East), extending it by 33% compared to Aluminum Alloy Windows (15 years).

Thermal Insulation: The thermal conductivity of PVC (0.16 W/m·K) is only 1/1250 that of aluminum alloy. Combined with a multi-chamber design, the frame's heat loss is reduced from 30% of traditional windows to below 10%.

Environmental Friendliness: 100% recyclable, with no heavy metal pollution during production, compliant with EU RoHS standards, and reducing VOC emissions by 80% compared to aluminum alloy windows (which require painting).

Double-glazed windows: The key to performance upgrades

Sound insulation: The insulated glass effectively blocks mid-to-high frequency noise (such as traffic noise), reducing noise by 35-40 decibels (RW value), 20 decibels higher than single-glazed windows.

Security: The double-glazed structure enhances impact resistance. Combined with a multi-point locking system (such as a 5-point lock), the anti-theft rating reaches RC2 (EN 1627 standard), twice that of ordinary windows.

Anti-condensation: The insulated glass is filled with a desiccant, and with a warm edge spacer, no condensation occurs on the window frame surface when the indoor and outdoor temperature difference reaches 30℃ in winter.

4. Applicable Buildings: Covering all scenarios from residential to commercial

Residential Scenarios

Small Apartments: Sliding top-hung windows (such as the 600mm wide model) save space and are suitable for kitchens and bathrooms; combined with frosted glass, they protect privacy.

Villas/Large Apartments: Large casement top-hung windows (such as the 2000mm wide model) provide panoramic views; combined with Low-E glass, they improve indoor lighting quality.

Passive Building: Triple-glazed, double-cavity top-hung windows with a fresh air system achieve an annual energy consumption of ≤15 kWh/m², meeting the certification standards of the Passive House Institute (PHI) in Germany.

Commercial Scenarios:

Offices: Top-hung windows with an electric opening system enable remote-controlled ventilation, improving office efficiency.

Shops: Folding top-hung windows (such as a 3-pane design) maximize display area and attract customers.

Hotels: Customized curved top-hung windows with an intelligent shading system enhance the customer experience.

5. Customization Options: Precisely Meeting Personalized Needs

Size Customization: Custom PVC Windows support non-standard sizes from 300-3000mm in width and 300-2500mm in height, adapting to irregular window openings (such as arches and trapezoids).

Colors and Surface Treatments:

Solid Color Series: Offers 10 standard colors including white, gray, and brown, and supports RAL color card customization.

Wood Grain Transfer: Uses German Renolit brand transfer film to simulate the textures of oak, walnut, etc., providing a realistic feel.

Metallic Texture: Achieves metallic effects such as champagne gold and bronze through fluorocarbon coating, complementing modern minimalist styles.

Glass Configuration

Functional Glass: Optional Low-E glass (heat insulation), laminated glass (safety), and smart glass (privacy).

Decorative Glass: Offers options such as frosted glass, tempered glass, and art glass to enhance the aesthetics of the space.

Smart Integration

Electric Opening: Comes with a motor and remote control, supports mobile app control, and is compatible with smart home systems.

Sensor Linkage: Integrated wind and rain sensor automatically closes windows in rainy weather; works with temperature and humidity sensors to automatically adjust ventilation.
