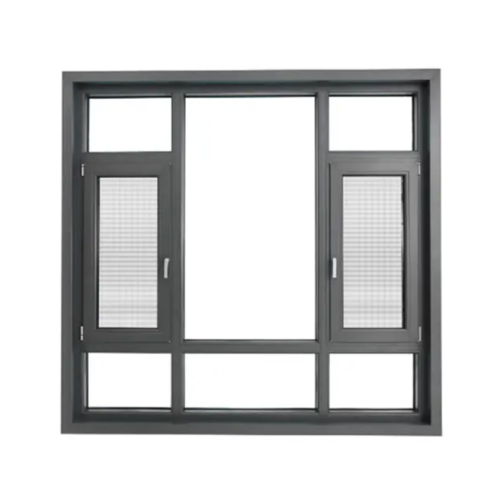

High impact resistant hurricane windows

$75-150 /Square Meter

Variety	Casement Windows
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: Shenzhen

Description

Product Attributes

Model No.: WD-CW33

Brand: Wendou

Warranty Service: More Than 5 Years

After-sales Service: Online Technical Support, Free Spare Parts, Onsite Installation, Onsite Training, Onsite Inspection

Application Scenario: Hotel, Villa, Apartment, Hospital, Supermarket, Workshop, Courtyard, Bathroom

Design Style: Modern, French, Contemporary, European, Chinese

Place Of Origin: China

Border Material: Aluminum Alloy

Additional Functionality: Soundproof, Windproof

Material: Aluminum, Aluminum Alloy

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: China

Supply Ability: 10000㎡/ per month

Certificate: NFRC/CE/AS2047

HS Code: 7610100000

Port: Shenzhen

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

High impact resistant hurricane windows are a type of building window and door product designed to withstand extreme weather (such as hurricanes, tornadoes, etc.). Its core feature is to achieve wind pressure resistance, impact resistance and waterproof performance through strengthened glass and frame structure.

Aluminum Casement Windows Double Glazed

Technical Features and Data

Impact Resistance

The use of laminated glass (such as 6mm+0.76PVB+6mm) or tempered glass can withstand the impact of flying objects exceeding 200 kilometers per hour. The product has passed the ASTM E1886 and ASTM E1996 tests and can withstand the impact of 9 kg of wood at a speed of 54 meters per second without breaking.

Wind Pressure Resistance

The frame adopts aluminum alloy profiles with a thickness of more than 2.0mm, combined with a multi-locking point hardware system, and the wind pressure resistance can reach more than 4500Pa. It has been verified through wind tunnel testing that the window deformation is ≤2mm under a level 12 typhoon (wind speed 32.7-36.9 meters per second).

Waterproof and airtightness

Three EPDM rubber sealing strips and hidden drainage design, watertightness ≥600Pa, airtightness reaches national standard level 8 (≤0.5m³/(m·h)). Coastal projects were measured in heavy rain, and the windows had no leakage and the indoor humidity change was ≤5%.

Heat insulation and sound insulation

Insulating glass (such as 6mm+12A+6mm) with Low-E coating, the U value can be as low as 0.26 W/(m²·K), and the sound insulation performance is 45dB. Hotel projects use this configuration, and summer air conditioning energy consumption is reduced by 30%, and indoor noise is reduced from 75dB to 30dB.

Aluminum Windows application scenarios

Hurricane-prone areas

In Florida, the Gulf Coast and the Caribbean, the building code requires doors and windows to be certified by Miami-Dade County. Residential projects use hurricane windows that have passed TAS 201, 202, and 203 tests, with a wind pressure resistance level of DP50.

Typhoon-prone areas

In the southeastern coastal areas of China and Okinawa, Japan, hurricane windows must meet the GB/T 29738-2013 standard. The sea view villa project uses casement windows with a wind pressure resistance level of ≥5000Pa and has passed the 16-level typhoon simulation test.

Extreme climate zone

In the desert areas of the Middle East (such as the UAE and Saudi Arabia), hurricane windows must take into account both wind and sand resistance and thermal insulation performance. The project uses laminated insulating glass (6mm+1.52PVB+6mm+12A+6mm), with a SHGC value of 0.18 and a U value of 0.24 W/(m²·K).

High-rise and super-high-rise buildings

In high-rise buildings with high wind pressure, hurricane windows must meet the standard of wind pressure resistance ≥4500Pa. The city building uses customized hurricane windows, which have been verified by wind tunnel tests and can still maintain sealing at a height of 300 meters and a wind speed of 40 meters/second.

Custom Aluminum Windows are suitable for building types

Residential buildings

High-end villas, sea view houses and retirement communities often use large-size (such as 1500mm×3500mm) hurricane casement windows to take into account both lighting and safety. Residential projects use casement windows with an impact resistance rating of DP50, and the annual insurance premium is reduced by 15%.

Commercial buildings

Hotels, resorts and shopping centers need to meet the dual needs of dense traffic and wind pressure resistance. Hotel projects use sliding windows with an impact resistance rating of DP60, combined with electric shading systems to achieve a balance between energy saving and safety.

Public facilities

Schools, hospitals and government buildings must meet strict wind resistance specifications. School projects use hurricane windows that have passed the TAS 203 test, with a wind pressure resistance rating of DP70 and LEED Gold certification.

Industrial buildings

Chemical plants, warehouses and logistics centers need to withstand strong winds and splashes. Chemical plants along the Gulf Coast use fixed windows with an impact resistance rating of DP50, combined with explosion-proof membranes, to meet ATEX explosion-proof standards.

Aluminum Alloy Windows Procurement Recommendations

Budget-limited projects: Choose 1.4mm profile + laminated glass configuration, impact resistance level DP35.

High-end customized projects: Use 2.0mm profile + three-glass two-cavity laminated glass, impact resistance level DP60.

Certification and warranty: Prioritize products certified by Miami-Dade County, ASTM or GB, with a warranty period of ≥10 years.
