Aluminum Double Swing Commercial Entrance Doors

Aluminum Double Swing Commercial Entrance Doors

$75-150 /Square Meter

option
Contact Now

Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: Shenzhen,Guangdong

Description

Product Attributes

Model No.: WD-CD018

Brand: Wendou

Warranty Service: More Than 5 Years

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: Shenzhen,Guangdong

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CFR,CIF,EXW

Product Description

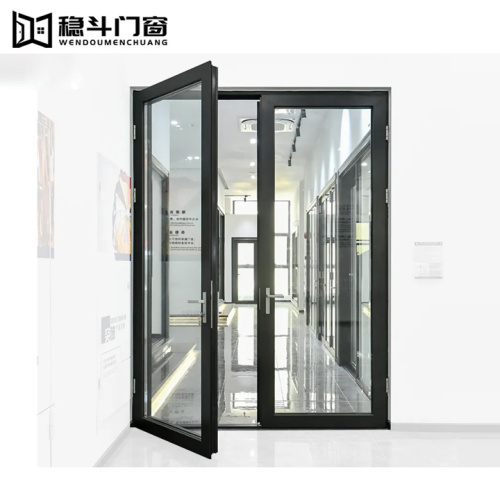

Aluminum Double Swing Commercial Entrance Doors

1. Appearance Features: A Fusion of Modern Aesthetics and Functionality

Aluminum double swing commercial entrance doors are based on a minimalist design language, creating a visual focal point through smooth lines and transparent glass elements.

Their appearance exhibits three main characteristics:

Narrow Frame Design: Using 1.4-2mm thick aluminum alloy profiles, the minimum visible frame width can be reduced to 30mm. Combined with large areas of tempered or laminated glass, this achieves a light transmittance of over 85%. For example, the product utilizes hidden drainage grooves and integrated corner bracket technology, resulting in a door surface without exposed screws and a mirror-like flatness.

Diverse Surface Treatments: More than 10 surface treatment processes are available, including fluorocarbon spraying, anodizing, and wood grain transfer printing, covering the entire RAL international standard color chart. A commercial complex project selected deep space gray fluorocarbon sprayed doors, creating a material echo with the aluminum panel curtain wall of the building's facade, enhancing overall coordination.

Humanized Detail Design: A 304 stainless steel kick plate is embedded at the bottom of the door leaf, with a height of 150mm, effectively resisting collisions from trolleys; an adjustable hidden door closer is installed at the top, supporting 0-180° stepless positioning, meeting fire escape requirements.

2. Material Type Advantages: A Balance of Strength and Durability

Aluminum Alloy Frame

Structural Performance: 6063-T5 aluminum alloy, after T6 heat treatment, has a tensile strength of 180MPa and a yield strength of 135MPa, capable of withstanding a wind pressure of 12 levels (approximately 3.5kPa). A coastal hotel project showed that the door body showed no blistering or peeling after 5 years of continuous salt spray corrosion.

Energy Efficiency: Thermal break profiles combined with Low-E double-glazed glass (6mm+12A+6mm) result in a whole-door heat transfer coefficient as low as 1.8W/(㎡·K), saving more than 50% energy compared to ordinary single-glazed doors.

Glass Configuration

Safety Performance: Optional 12mm thick laminated glass (PVB film thickness 0.76mm) passes the ASTM E1886 impact test and can withstand impacts from flying objects at a speed of 130 km/h. A bank branch successfully passed Miami-Dade hurricane certification after adopting this configuration.

Privacy Protection: Options include frosted, coated, and smart dimmable glass. A high-end office building lobby uses electrochromic glass, allowing for adjustable light transmittance (10%-90%) via a mobile app, balancing lighting and privacy needs.

Hardware System

Load-bearing Capacity: Utilizing German Roto NT series hardware, each door leaf can bear up to 150kg and supports 200,000 opening and closing cycles. A logistics center project showed that doors with an average daily traffic of over 5000 people showed no sagging or deformation after 3 years of continuous use.

Anti-theft Performance: Equipped with multi-point locks (≥5 locking points) and anti-pry steel bolts, it passed the EN 1627 RC3 anti-theft test, delaying illegal entry time to more than 15 minutes.

3. Core Application Scenarios

High-Traffic Commercial Spaces

Retail Stores: A fast-fashion brand's nationwide stores uniformly use 2.2-meter wide double doors with automatic sensing systems, increasing customer traffic efficiency by 40%.

Restaurants: A chain restaurant's kitchen passage uses doors with 9-inch x 14-inch observation windows, maintaining visibility while preventing the spread of cooking fumes.

Public Building Entrances

Hospitals: A top-tier hospital's emergency entrance uses fire-resistant rock wool filled doors with a fire resistance rating of 1.5 hours, meeting the GB 8624-2012 B1 fire safety standard.

Schools: An international school's main entrance features ADA-compliant doors with a clear opening width of 900mm, meeting wheelchair accessibility requirements.

Industrial and Logistics Fields

Warehouses: An e-commerce warehousing center uses 14-gauge (2.0mm) thick Aluminum Doors with adjustable floor springs, maintaining sealing performance even after frequent forklift impacts.

Cleanrooms: A semiconductor factory uses cleanroom-specific doors with silicone sealing strips embedded in the door frame, achieving a national standard level 4 airtightness (leakage rate ≤1.5m³/(m·h)).

4. Target Customer Groups

Cost-Sensitive Customers

Developers: Bulk purchases of standard-sized doors (e.g., 2100mm × 1200mm) qualify for a 15%-20% discount, combined with fast delivery (15-20 days) to shorten project cycles.

Chain Brands: Unified procurement reduces per-store costs; a chain of convenience stores uses the same door design across all its national branches, reducing per-store procurement costs by 35%.

Design-Driven Projects

Architectural Firms: Support 3D modeling and BIM collaborative design; a landmark building project used BIM models to simulate door and curtain wall connections in advance, reducing on-site rework.

Interior Designers: Offer customized colors (e.g., Pantone color matching) and unconventional designs (e.g., curved, arched); an art center project used a 270° corner double door, becoming a visual focal point of the space.

Safety-Oriented Locations

Financial Institutions: Best Aluminium Doors are equipped with bank-specific locks (e.g., UL certified lock cores) and explosion-proof glass; a bank branch passed the GA38-2021 "Bank Security Requirements" inspection.

Government Institutions: Use CCC-certified fire doors; a government building project's doors have a fire resistance rating of 2 hours, meeting the requirements of the "Code for Fire Protection Design of Buildings".

5. Customization Options: Full-Service from Size to Smart Features

Size Customization

Custom Aluminium Doors support non-standard sizes, up to 3000mm × 4000mm, meeting the needs of large commercial spaces. A convention center project customized 2.8-meter-wide double doors, combined with an automatic sliding track system for concealed door storage.

Function Expansion

Smart Integration: Optional unlocking methods include fingerprint recognition, facial recognition, and Bluetooth sensing; an office building project uses a mobile app for remote authorization and access record inquiries.

Energy-Saving Upgrades: Adding photovoltaic glass panels; an eco-friendly hotel project's doors generate an average of 500Wh of electricity per day, meeting internal lighting needs.

Service Guarantee

Installation Support: Provide on-site measurement, installation guidance, and commissioning services; a multinational company's China headquarters project used VR technology for remote acceptance, shortening the delivery cycle.

After-Sales Maintenance: 5-year warranty, with a 24-hour emergency response team; a door at an airport project was replaced within 4 hours of malfunction.
