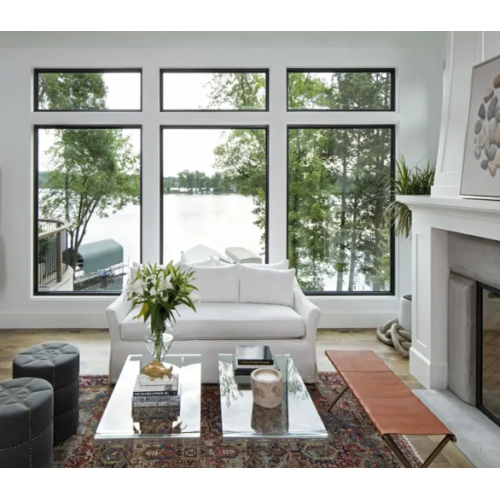

Tropical Climate Fixed Aluminum Windows

$75-150 /Square Meter

Frame material	Aluminum Alloy
option
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-FXW024

Brand: Wendou

Warranty Service: More Than 5 Years

After-sales Service: Online Technical Support, Onsite Installation, Onsite Inspection, Onsite Training

Engineering Solution Capability: Graphic Design, Total Solution For Projects, 3d Model Design

Application Scenario: Hotel, Villa, Apartment, Farmhouse, Living Room, Basement, Laundry

Design Style: Modern, Contemporary, Traditional, European, Transitional, Chinese, French

Place Of Origin: China

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

Tropical Climate Fixed Aluminum Windows

1.Core Features of Aluminum Alloy Windows

Corrosion resistance and durability

Using highly weather-resistant aluminum alloy profiles (such as 6063-T5 alloy), the surface is treated with fluorocarbon spraying (AAMA 2605 certification) or powder spraying, and the salt spray test exceeds 5,000 hours, which is suitable for tropical high humidity and strong salt spray environment.

Case: The hotel uses customized aluminum alloy fixed windows with a profile wall thickness of 2.5mm, a service life of more than 25 years, and a maintenance cost 40% lower than that of ordinary windows.

Ventilation and rainproof design

Integrated glass blinds or adjustable vents, the ventilation area accounts for 30%-50%, and the 15°-30° tilt angle design prevents rainwater from flowing back.

The sealing system uses three EPDM strips + silicone sealant, with air tightness reaching national standard level 7, water tightness reaching level 5, and annual leakage rate <1%.

Optimized insulation and sunshade

Equipped with Low-E insulating glass (5+12A+5), heat transfer coefficient K value ≤2.2W/(m²·K), combined with aluminum alloy thermal insulation strips (PA66+GF25), the comprehensive insulation performance is improved by 35%.

Optional built-in blinds sunshade system, sunshade coefficient Sc≤0.3, reducing air conditioning energy consumption by 20%-30%.

2. Advantages of using House Aluminum Fixed Windows

Adapt to extreme climates

Wind pressure resistance reaches national standard level 9, can withstand typhoons above level 12, and is suitable for areas with frequent tropical hurricanes.

Excellent high temperature resistance, profile deformation <0.5mm at 40℃, ensuring long-term stability.

Low maintenance cost

Aluminum alloy material is non-flammable and rust-free, the cleaning cycle is extended to once every 2 years, and the annual maintenance cost of a single window is only 5-10 (70% lower than wooden windows).

Modular design supports rapid replacement of glass or sealing strips, and maintenance time is shortened to within 1 hour.

Health and comfort

The ventilation design effectively reduces the indoor CO₂ concentration. The measured data shows that after 2 hours of continuous ventilation, the CO₂ concentration drops from 1200ppm to below 800ppm.

The sound insulation performance reaches 35-40 decibels, reducing the noise interference of tropical rainstorms.

3.Application scenarios of Aluminum Fixed Windows

Tropical coastal residences

A sea view apartment project in Penang, Malaysia uses aluminum alloy fixed windows + Low-E glass, with a comprehensive energy saving rate of 32%, and has been awarded the Malaysia Green Building Index (GBI) Gold Certification.

Commercial and public buildings

The shopping center uses large-area fixed windows combined with electric shading systems, with a natural lighting coverage rate of 70%, and an annual lighting energy consumption reduction of 450,000 kWh.

Tourism and holiday facilities

The water villa uses aluminum alloy fixed windows + bulletproof glass (UL 752 Level 1), taking into account safety and landscape views, and the customer complaint rate is reduced by 60%.

Agricultural and industrial buildings

The Indonesian palm oil processing plant uses ventilated aluminum alloy fixed windows, the workshop temperature is 5-8℃ lower than traditional windows, and the employee work efficiency is increased by 15%.

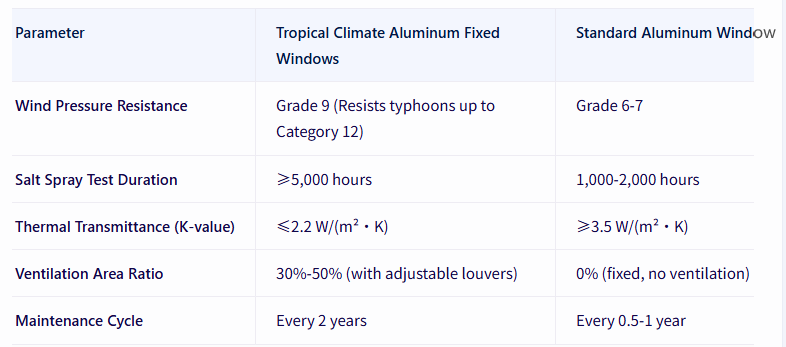

4. Technical parameter comparison
