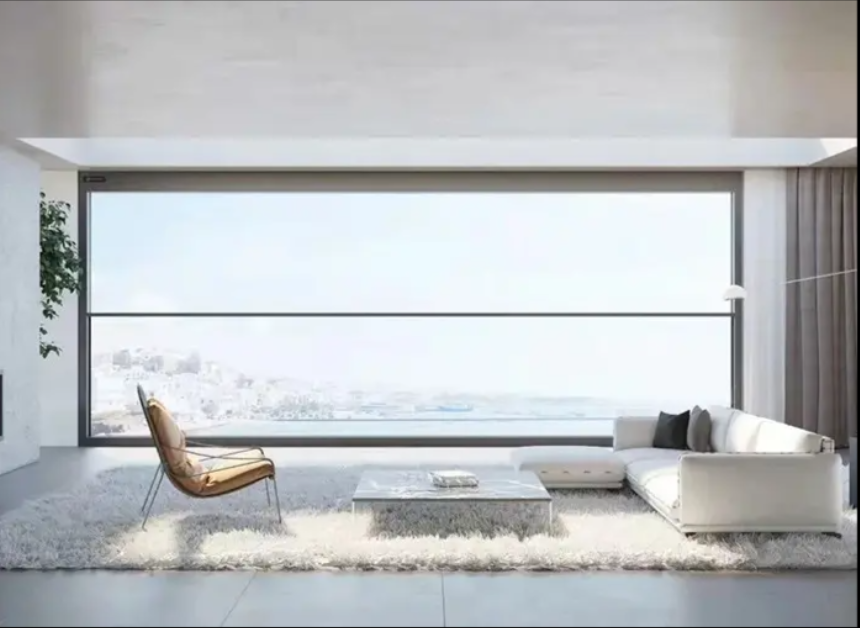

Penthouse Panoramic Fixed Windows

$75-150 /Piece/Pieces

Frame material	Aluminum Alloy
option
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Piece/Pieces
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-FXW025

Brand: Wendou

Warranty Service: More Than 5 Years

After-sales Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection

Engineering Solution Capability: 3d Model Design, Total Solution For Projects, Graphic Design

Application Scenario: Hotel, Villa, Apartment, Farmhouse, Living Room, Basement, Laundry

Design Style: Modern, Traditional, Contemporary, European, Transitional, Chinese, French

Place Of Origin: China

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

1. Core features

Super large size and transparency

The size of a single window can reach 3m×2.5m, and the glass proportion of the entire wall exceeds 80%, providing a 270°-360° panoramic view (such as the top floor project of Dubai Princess Tower).

Using 12mm ultra-white tempered glass (light transmittance ≥91%), with a frameless design, visual obstruction is reduced by 60%.

Wind pressure resistance and safety performance

The wall thickness of the aluminum alloy profile is 3.0-4.0mm, and the wind pressure resistance level reaches the national standard level 10 (can withstand a level 14 typhoon), and passed the ASTM E330 dynamic wind tunnel test.

The glass configuration can be optional laminated insulating glass (6+1.52PVB+12A+6), the adhesion rate of broken fragments is ≥99%, and the safety factor is increased by 3 times.

Insulation and energy-saving optimization

Equipped with Low-E coating (visible light transmittance 70%, infrared blocking rate 90%), combined with warm edge spacers, the heat transfer coefficient K value ≤1.8W/(m²·K).

The Binhai Shengjing luxury housing project has a comprehensive energy saving rate of 40%, reducing air conditioning energy consumption by 120,000 kWh per year.

2. Advantages of using House Aluminum Fixed Windows

Maximize the value of space

Eliminate the traditional window frame division, and increase the integration of indoor and outdoor spaces by 50%, which is suitable for top duplexes, observation decks and other scenes.

The natural lighting area is increased by 3 times, and the daytime lighting energy consumption is reduced by 70% (data from the U.S. Department of Energy).

Low maintenance and long life

The aluminum alloy surface is sprayed with fluorocarbon (AAMA 2605 certification), with corrosion resistance of more than 20 years, and the maintenance cycle is extended to once every 5 years.

The modular design supports the rapid replacement of a single piece of glass, and the maintenance time is shortened to within 2 hours.

Acoustic and privacy balance

The double-layer hollow glass structure (5+12A+5) is matched with sound insulation strips, which can reduce noise by 35-40 decibels and meet the privacy needs of the city center.

Optional electrochromic glass (transmittance 10%-60% adjustable), one-click switch to privacy mode.

3. Application scenarios of Aluminum Fixed Windows

High-end residences and hotels

Ultra-high-rise luxury houses use panoramic fixed windows to increase the premium rate of real estate by 20%-30%.

Hotel penthouses use curved panoramic windows to increase the average customer price.

Commercial and public buildings

Consumer electronics flagship stores use panoramic glass facades, with a natural light utilization rate of 90% and a reduction of artificial lighting by 40%.

Airport observation deck projects use panoramic windows to achieve seamless connection between the terminal and the apron.

Cultural and tourist facilities

Using panoramic fixed windows to display the internal structure, the number of visitors increased by 150%.

Underwater restaurants use curved panoramic windows, and the passenger flow increased compared to traditional restaurants.

4. Options for Custom Aluminum Windows

1. Shape and curvature design

Optional types:

Flat fixed windows: standard rectangular or special-shaped cuts, suitable for right-angle building structures.

Single curved glass: minimum bending radius ≥500mm, suitable for curved corner walls (such as the top floor of Dubai Princess Tower). Hyperbolic glass: 3D modeling and hot bending process are required, error control ≤0.5mm, used for streamlined landmark buildings (such as Apple flagship stores).

Technical support:

Curved glass adopts physical tempering + chemical strengthening composite process, and its impact resistance is 25% higher than that of flat glass.

2. Glass type and performance

Basic configuration:

Single-layer ultra-white tempered glass: thickness 12mm, light transmittance ≥91%, suitable for tropical areas without sunshade requirements.

Laminated insulating glass: structure is 6+1.52PVB+12A+6, safety level reaches EN 12600 Class 3, and sound insulation performance is 38 decibels.

Intelligent upgrade:

Electrochromic glass: light transmittance 10%-60% stepless adjustment, response time ≤3 seconds, power consumption <5W/㎡.

Thermochromic glass: automatically adjust infrared transmittance according to temperature, and increase heat insulation efficiency by 40% in summer.

3. Opening and ventilation function

Fixed design:

Completely sealed structure, air tightness reaches GB/T 7106 Grade 8, suitable for scenes without ventilation requirements (such as underwater restaurants).

Micro ventilation system:

Top hidden opening and closing window, maximum angle 15°, ventilation volume 0.2-0.5m³/s, equipped with rain sensor automatic closing function.

Case: Singapore Marina Grand View Mansion adopts this design, and the indoor CO₂ concentration is reduced by 35% compared with fully enclosed windows.

4. Surface treatment and color

Aluminum alloy profile:

Fluorocarbon spraying: film thickness ≥60μm, weather resistance over 20 years, support RAL color card full series customization (such as champagne gold, matte black).

Wood grain transfer: texture fidelity ≥95%, suitable for retro style buildings (such as London Hyde Park One).

Glass coating:

Nano self-cleaning coating: contact angle ＞150°, stain residue rate after rain washing ＜5%, maintenance cycle extended to 3 years.

5. Intelligent integrated system

Environmental response control:

Integrated temperature, humidity and PM2.5 sensors, automatically adjust the sunshade angle and ventilation volume, and optimize energy consumption by 30%.

Safety protection:

The IoT alarm is triggered when the glass is broken, with a positioning accuracy of ≤1 meter and a response time of <5 seconds.
