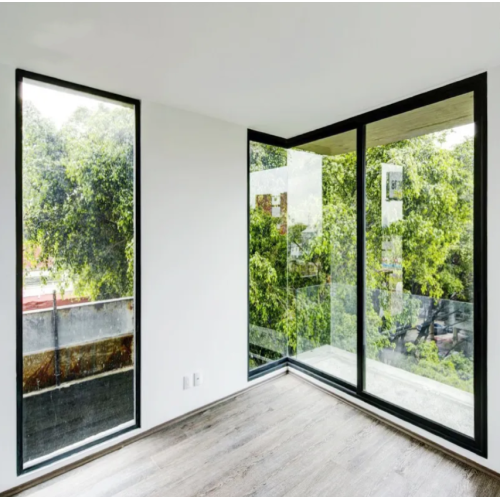

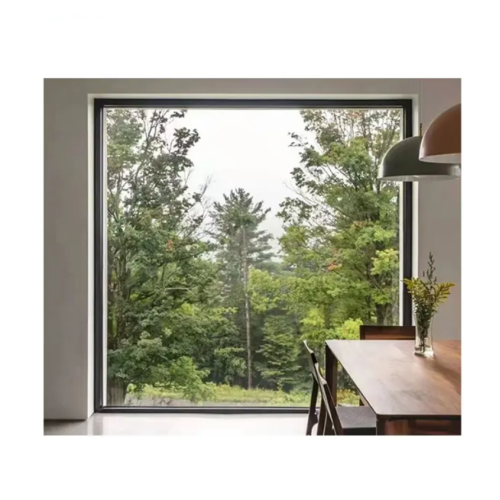

Approved Customized Size Aluminium Frame Windows

Approved Customized Size Aluminium Frame Windows

$75-150 /Square Meter

Frame material	Aluminum Alloy
option
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-FXW026

Brand: Wendou

Warranty Service: More Than 5 Years

After-sales Service: Online Technical Support, Onsite Training, Onsite Inspection, Onsite Installation

Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects

Application Scenario: Hotel, Villa, Apartment, Farmhouse, Living Room, Basement, Laundry

Design Style: Transitional, European, Modern, Traditional, Contemporary, Chinese, French

Place Of Origin: China

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

Approved Customized Size Aluminum Frame Windows are energy-saving window and door systems that utilize precision design, customized dimensions, and rigorous quality certification.

I. Core Features of Aluminum Fixed Windows

Precise Dimensional Fit: Customized to the exact dimensions of the building opening (width 500mm-900mm, height 600mm-1500mm), they eliminate the gap between traditional standard windows and the wall, reducing installation tolerances to within ±1mm.

Material Performance Certification: Utilizing 6000 series aluminum alloy (such as 6063-T5), with a tensile strength ≥160MPa and a yield strength ≥110MPa, they comply with AS/NZS 1866 and are certified by the American Building Manufacturers Association (AAMA).

Functional Modularity: Integrated thermal insulation, anti-theft hardware, and concealed drainage systems are available. They support single-glazed (4-19mm), double-glazed (5+12A+5mm to 6+19A+6mm), and laminated glass configurations.

II. Material Features

Aluminum Alloy Base

6000 Series Aluminum Alloy: With magnesium and silicon as the primary alloying elements, it offers high strength (tensile strength 160-200 MPa), lightweight (density 2.7 g/cm³), excellent processability, and the ability to accommodate complex cross-sectional designs.

Surface Treatment:

Powder Coating: Thickness 60-120 μm, weather resistance 25+ years, customizable in over 60 standard and RAL color palettes.

Fluorocarbon Spraying: Thickness ≥ 35 μm, corrosion resistance meets AAMA 2605 standards, suitable for coastal or highly polluted environments.

Anodizing: Film thickness 10-25 μm, strong metallic finish, and superior wear resistance compared to spray coating.

Thermal Insulation Material: PA66 + GF25 Insulation Strip: Thermal conductivity 0.3 W/(m·K), width 14.8-34 mm. Combined with the multi-cavity structure, the overall window heat transfer coefficient (K) is ≤ 1.8 W/(m·K).

Glass Configuration

Double-glazed insulated glass: Standard configuration: 5+12A+5mm; optional triple-glazed, two-chamber glass (6+9A+6+9A+6mm). Sound insulation performance: RW31-35dB.

Functional glass: Supports Low-E coating (emissivity ≤ 0.15), laminated safety glass (PVB thickness ≥ 0.76mm), and smart dimming glass (transmittance adjustable from 10% to 80%).

III. Advantages

Energy-saving performance

The thermally-insulated aluminum and insulated glass configuration achieves a U-value of ≤0.8W/(m2·K) for the entire window, meeting Passive Building standards (Nathers 8 stars) and reducing annual air conditioning energy consumption by 30%-40%.

Security

German-imported multi-point locking system (locking point spacing ≤ 300mm), achieving an RC2 security rating (AS/NZS 4131 standard) and an impact resistance exceeding 3000N. Built-in 304 stainless steel mosquito screen (pore size ≤ 0.8mm) with a 99% barrier rate, ensuring both ventilation and insect protection.

Durability and Maintenance

The aluminum alloy meets AS2047 corrosion resistance standards, boasting a service life of over 50 years and maintenance costs at only 30% of those of traditional doors and windows.

EPDM rubber sealing strips and a concealed drainage system ensure airtightness up to AS2047 Class 4 and IP65 waterproofing.

IV. Aluminum Windows Production Process

Design Phase

BIM technology is used for 3D modeling to simulate the window's fit within the building structure and optimize drainage paths and hardware layout.

Profile Processing

A 6,000-ton extruder produces aluminum alloy profiles with a dimensional accuracy of ±0.1mm. Two-component glue injection corner brackets are used for corners, achieving a strength of 3200N.

Glass Processing

Insulating glass is assembled using a fully automated production line. The aluminum strip bending process reduces gas leakage. The argon filling purity is ≥95%, ensuring a service life of over 15 years.

Assembly and Certification

The window frame and glass are bonded together using structural adhesive and mechanical fastening for dual protection. Airtightness, watertightness, and wind pressure resistance are tested using AAMA-certified testing equipment.

V. Application Environment

High-end Residential

Villas and large apartments prefer narrow frames (visible width 35-65mm) and large glass (maximum single window 2480mm x 1200mm) to enhance the sense of transparency.

Commercial Buildings

Public buildings such as hospitals and schools use an antibacterial powder coating (compliant with ISO 22196) and 304 stainless steel mosquito nets to meet hygiene and safety requirements.

Passive Building

Triple-glazed, dual-chamber windows with Low-E coating, combined with a fresh air system, achieve zero-energy ventilation. The overall window heat transfer coefficient (K) is ≤0.8W/(m2·K).

VI. Aluminum Alloy Windows Customization Options

Size and Shape

Custom shapes such as arcs, triangles, and trapezoids are supported, with a minimum radius ≥300mm and an angle tolerance ≤0.5°.

Colors and Finishes

Available in standard colors (matte black, white, dark gray) and over 60 custom colors. Supports wood grain transfer printing (color difference ΔE ≤ 1.5) and fluorocarbon spray coating (20-year warranty).

Functional Modules

Intelligent Control: Integrated electric window opener, wind and rain sensor, and support for remote control via mobile app.

Security Upgrade: Optional bulletproof glass (thickness ≥ 25mm) and fingerprint lock hardware system with impact resistance up to 5000N.
