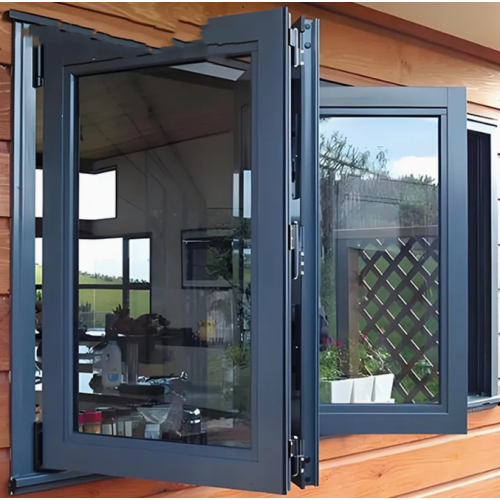

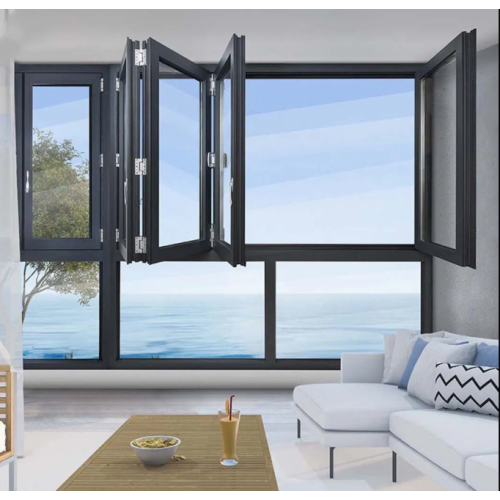

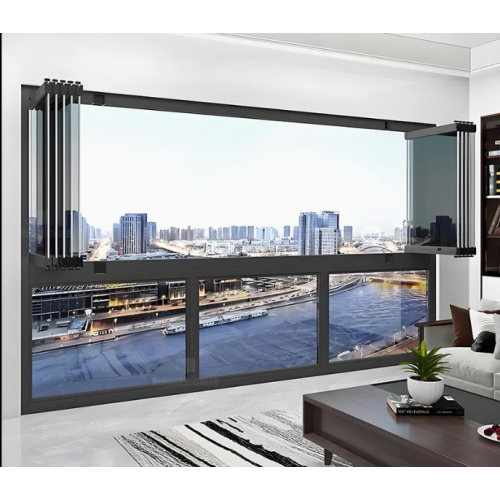

Insect Screen Integrated Folding Windows
$75-150 /Square Meter
option Contact Now - Payment Type: L/C,T/T
- Incoterm: FOB,CFR,CIF,EXW
- Min. Order: 1 Square Meter
- Transportation: Ocean
- Port: Shenzhen
DescriptionProduct AttributesModel No.: WD-FW031
Brand: Wendou
Warranty Service: More Than 5 Years
After-sales Service: Free Spare Parts, Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection
Application Scenario: Hotel, Villa, Hospital, Leisure Facilities, Supermarket, Kitchen, Bathroom, Home Office, Living Room, Outdoor, Exterior, Entry, Hall
Design Style: Modern, Contemporary, French
Place Of Origin: China
Border Material: Aluminum Alloy
Switch Way: Folding
Mesh Material: Stainless Steel
Additional Functionality: Dust-Proof, Heat Insulation
Material: Aluminum, Aluminum Alloy
Packaging & DeliverySelling Units: Square Meter Package Type: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate Picture Example:
Supply Ability & Additional InformationPackaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Productivity: 150000㎡/year
Transportation: Ocean
Place of Origin: Made in China
Supply Ability: 10000㎡/M
Certificate: NFRC/CE/AS2047
HS Code: 7610100000
Port: Shenzhen
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Product DescriptionInsect Screen Integrated Folding Windows is a building window system that integrates folding windows with insect screens.Core Features of Aluminum Alloy Sliding Folding WindowsEfficient use of space: The window sash can be folded to one side or both sides, with a maximum opening area of 80% of the total area, realizing the switch between "barrier-free ventilation" and "panoramic view". Frameless folding window system, the width of a single window can reach 1 meter, and the thickness after folding is only 15 cm, which is suitable for large-span openings.Invisible screen design: The screen adopts a foldable structure, which is completely hidden in the window frame when closed and does not block the view. The screen unit is linked with the window body, and the screen is automatically retracted into the hidden track when folded, keeping the appearance minimalist.Both insect prevention and ventilation: The screen mesh density is ≥16 mesh, which can block more than 90% of mosquitoes while maintaining air circulation efficiency. Test data shows that its wind pressure ventilation coefficient is 0.7-0.8, which is better than traditional casement windows (0.4-0.5).
Material advantages and performance data of Aluminum Alloy WindowsAluminum alloy frame:Tensile strength ≥160N/mm², corrosion resistance of more than 15 years, suitable for coastal or high humidity areas.Surface treatment adopts fluorocarbon spraying or anodizing, weather resistance meets GB/T 5237.4-2017 standard, salt spray test ≥1000 hours without corrosion.Screen material:Fiberglass mesh: tensile strength ≥800MPa, high temperature resistance (no deformation at 300℃), service life exceeds 10 years.Stainless steel mesh: stronger impact resistance, suitable for high-rise buildings or strong wind areas, mesh density 16-20 mesh optional.Glass configuration:Three-glass two-chamber insulating glass (U value ≤0.8 W/(m²·K)), sound insulation performance Rw=42dB, meeting the energy-saving requirements of green buildings.Laminated safety glass (impact resistance meets GB 15763.3-2009), thickness 6-12mm optional, safety increased by 30%.
Application scenarios of Aluminium Alloy Bi-Folding WindowHigh-end residences and villas:Applicable to balconies, terraces and other scenes, to achieve seamless connection between indoor and outdoor spaces. The luxury villa project uses snow-proof thin ventilation and smoke exhaust skylights (integrated screen folding window variants) to keep the indoor cool at 50℃ high temperature, while achieving 180° barrier-free viewing through folding design.Commercial buildings and public facilities:Large-span spaces such as shopping malls, hotels, and gymnasiums meet the ventilation and evacuation needs of large traffic groups. The gymnasium is equipped with a sunken horizontal skylight integrated system, which introduces natural wind in summer to reduce the air conditioning load by 30%, and improves the insulation performance by 40% after closing in winter.Industrial and agricultural facilities:In factories, warehouses, and farms, folding windows can quickly adjust the ventilation volume and reduce energy consumption. The farm uses this system to control the ventilation volume through folding windows in winter, reducing the incidence of livestock respiratory diseases by 25%.Care and maintenanceDaily cleaning:Screen: Clean dust with a soft brush every month, wipe with a neutral detergent every quarter, and avoid using strong acid and alkali solutions.Window frame: Wipe with a damp cloth, check the sealing strip for aging every year, and replace it in time (recommended service life of 5-8 years).Hardware maintenance:Lubricate hinges, slide rails and other parts every six months to ensure smooth folding.Electric models need to check the motor circuit every year and clean the dust on the wind and rain sensor probe.Safety inspection:Regularly check whether the screen mesh is damaged and whether the frame connection is loose.Close the window before extreme weather (such as typhoon) and fix the windproof buckle.The file is encrypted. Please fill in the following information to continue accessing it
