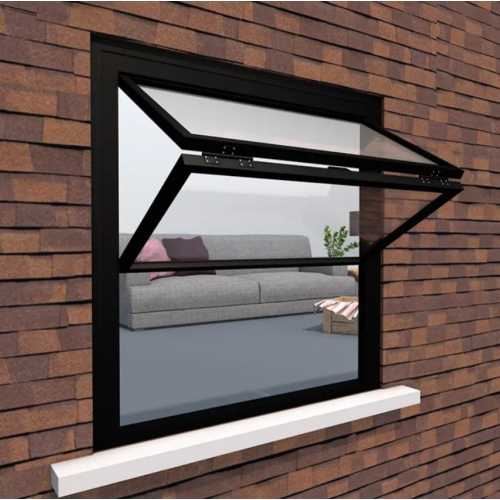

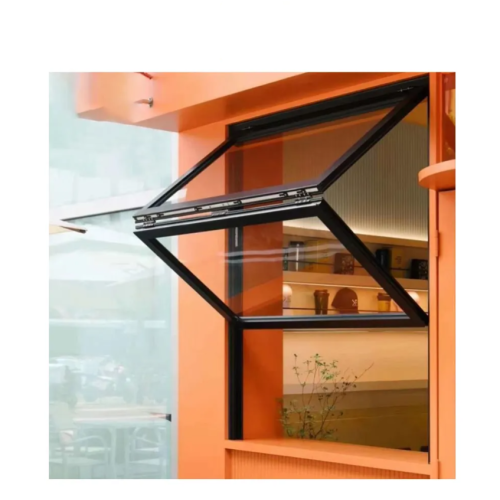

Impact Resistant Safety Folding Windows
$75-150 /Square Meter
option Contact Now - Payment Type: L/C,T/T
- Incoterm: FOB,CFR,CIF,EXW
- Min. Order: 1 Square Meter
- Transportation: Ocean
- Port: Shenzhen
DescriptionProduct AttributesModel No.: WD-FW032
Brand: Wendou
Warranty Service: More Than 5 Years
After-sales Service: Free Spare Parts, Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection
Application Scenario: Hotel, Villa, Leisure Facilities, Supermarket, Kitchen, Bathroom, Home Office, Exterior, Hall, Entry
Design Style: Modern, Contemporary, French
Place Of Origin: China
Border Material: Aluminum Alloy
Switch Way: Folding
Mesh Material: Stainless Steel
Additional Functionality: Dust-Proof, Heat Insulation
Material: Aluminum Alloy, Aluminum
Packaging & DeliverySelling Units: Square Meter Package Type: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate Picture Example:
Supply Ability & Additional InformationPackaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Productivity: 150000㎡/year
Transportation: Ocean
Place of Origin: Made in China
Supply Ability: 10000㎡/M
Certificate: NFRC/CE/AS2047
HS Code: 7610100000
Port: Shenzhen
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Product DescriptionImpact-resistant safety folding windows are a building window system that integrates windproof, explosion-proof and anti-theft functions.Core material features of Tempered Glass Aluminum Folding WindowsHigh-strength aluminum alloy frame:Tensile strength ≥160N/mm², corrosion resistance of more than 15 years, suitable for coastal or high-humidity areas.The frame structure adopts a multi-cavity design, optimized by finite element analysis, and can withstand wind pressure of more than 5.0kPa (equivalent to a level 12 typhoon), in line with Class 9 standards (GB/T 7106-2019).Impact-resistant glass configuration:Laminated safety glass: composed of two layers of tempered glass sandwiched with PVB film, the impact resistance meets the GB 15763.3-2009 standard, and can block the impact of a 10kg iron ball falling freely from a height of 3 meters.Bullet-proof glass (optional): suitable for high-security scenarios, such as banks and embassies, and can withstand shooting from a Type 79 light submachine gun.Invisible screen integration:The screen uses 304 stainless steel mesh, mesh density 16 mesh, tensile strength ≥ 800MPa, life span of more than 15 years, while maintaining ventilation efficiency (wind pressure ventilation coefficient 0.7-0.8).
Advantages and performance data of Aluminum Folding WindowsAdaptability to extreme environments:Wind pressure resistance: In the gymnasium project, the folding window successfully resisted a wind speed of 50m/s (equivalent to a level 15 typhoon), and the thermal insulation performance increased by 40% after closing.Impact resistance: In the hurricane test, the window was not damaged under an impact force of 200kg/m², far exceeding the ASTM E1886 standard.Safety protection capability:Anti-theft: Passed European RC2 certification, can withstand prying with professional tools for more than 30 minutes.Explosion-proof: In the oil field project, the window withstands 1kg TNT equivalent explosion impact, and there is no splashing of glass fragments.Energy saving and sound insulation:Three-glass two-chamber hollow glass (U value ≤ 0.8 W/(m²·K)), with hidden drainage groove design, sound insulation performance reaches Rw=45dB, meeting the energy-saving requirements of green buildings.Intelligent integration:Electric models are equipped with wind and rain sensors, with a response time of ≤3 seconds, and support fire linkage smoke exhaust (smoke exhaust volume 2.5m³/s·m²).
Application scenarios of Thermal Break Aluminum Folding WindowsHigh-security demand buildings:Banks, prisons, embassies and other scenes use bulletproof glass + anti-theft lock system to achieve physical protection and intelligent monitoring linkage.Extreme climate areas:Coastal villa projects: The window has passed the Cyclone Rating C4 certification to resist salt spray corrosion and strong winds.Desert oil fields: High-temperature resistant glass (temperature range -40℃ to 120℃) with anti-sand and dust sealing strips to ensure stable operation of equipment.Public facilities and industrial buildings:Gymnasiums, airport terminals: large-span folding windows (single-leaf width up to 2 meters) for rapid ventilation and evacuation.Factory warehouses: Electric folding windows with smoke sensors automatically open and exhaust smoke in case of fire to reduce losses.
Care and maintenance guideDaily cleaning:Glass: Wipe with neutral detergent every month, avoid using strong acid and alkali solutions.Frame: Check the sealing strips every quarter and replace them in time when they are aged (recommended life of 5-8 years).Hardware maintenance:Lubricate hinges and slide rails every six months to ensure smooth folding.Electric models check the motor circuit every year and clean the dust on the wind and rain sensor probe.Safety inspection:Regularly test the integrity of the PVB film of explosion-proof glass, and replace it immediately if bubbles or debonding are found.Close the window and fix the windproof buckle before the typhoon, and check whether the lock is firm.Response to extreme environments:Clean the dust on the track after the sandstorm to avoid folding jams.In salt spray environments (such as coastal areas), the frame should be treated with rust prevention every year.The file is encrypted. Please fill in the following information to continue accessing it
