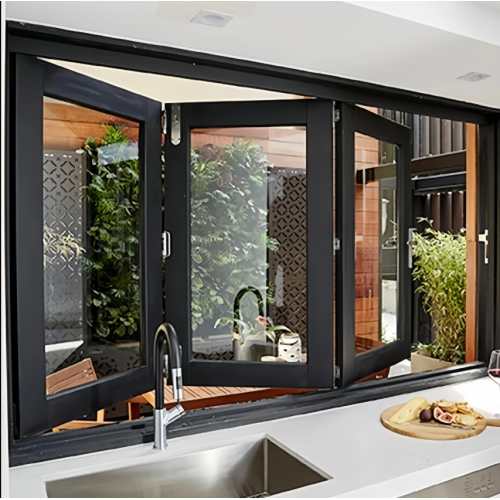

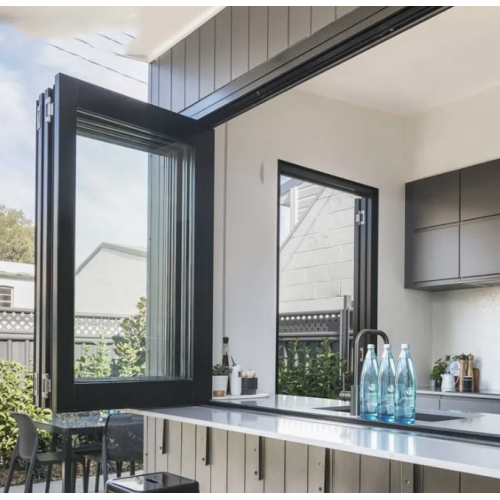

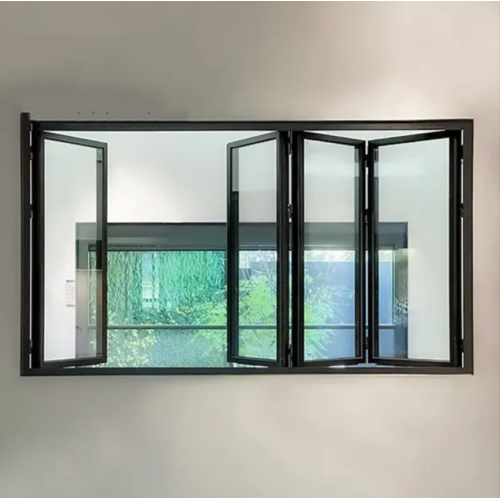

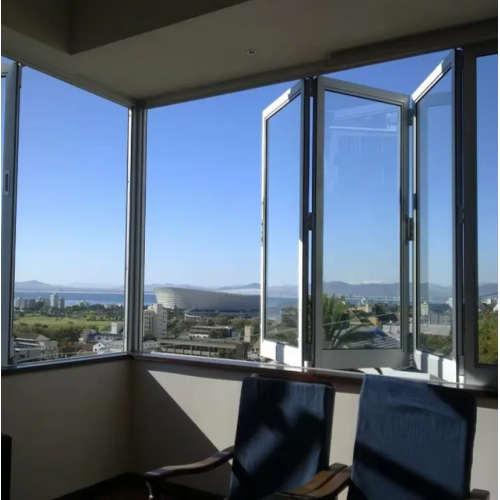

Modern Floding Design Aluminum Window
$75-150 /Square Meter
option Contact Now - Payment Type: L/C,T/T
- Incoterm: FOB,CFR,CIF,EXW
- Min. Order: 1 Square Meter
- Transportation: Ocean
- Port: SHENZHEN
DescriptionProduct AttributesModel No.: WD-FW033
Brand: Wendou
Warranty Service: More Than 5 Years
After-sales Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts
Application Scenario: Hotel, Villa, Hospital, Leisure Facilities, Supermarket, Kitchen, Home Office, Bathroom, Living Room, Exterior, Outdoor, Entry, Hall
Place Of Origin: China
Material: Aluminum Alloy, Aluminum
Design Style: Modern, Contemporary, French
Switch Way: Folding
Mesh Material: Stainless Steel
Additional Functionality: Dust-Proof, Heat Insulation
Packaging & DeliverySelling Units: Square Meter Package Type: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate Picture Example:
Supply Ability & Additional InformationPackaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Productivity: 150000㎡/year
Transportation: Ocean
Place of Origin: Made in China
Supply Ability: 10000㎡/month
Certificate: NFRC/AS2047
HS Code: 7610100000
Port: SHENZHEN
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Product DescriptionModern Folding Design Aluminum Window1.Aluminum Folding Windows FeaturesMinimalist Aesthetics and Transparent VisionNarrow Frame Design: The aluminum profile width is typically 40-60mm, combined with a large expanse of glass (accounting for 80%-90%), creating a "frameless" visual effect and blurring the boundary between indoor and outdoor.Concealed Track: The bottom track height is ≤15mm, and the top pulley system is completely embedded in the aluminum frame, resulting in a smooth, unobtrusive surface that avoids the dust accumulation problems associated with traditional window tracks.Diverse Colors and Finishes: Available in powder coatings (60-80μm thickness) such as matte black, pearl white, and champagne gold, or imitation wood grain transfers (such as oak and walnut), perfect for modern, industrial, or natural-style architecture.
2. Aluminum Windows Material and Structural AdvantagesHigh-Strength Aluminum Alloy Base6063-T5 Alloy: Tensile Strength ≥160MPa, Yield Strength ≥110MPa, Can withstand wind pressure level 12 (≥3.0kPa), Suitable for high-rise buildings and coastal areas.Broken-Bridge Thermal Insulation Technology: Built-in PA66 + GF25 insulation strips (14-24mm width) break the thermal bridge between the aluminum frame and the window frame, keeping the temperature difference between the window frame surface and the indoor temperature ≤3°C, and achieving a U-value (thermal conductivity) as low as 1.8-2.5 W/(m²·K).High-Performance Glazing SystemDouble-glazing: Standard configuration: 5mm + 15mm argon barrier + 5mm, K-value ≤2.0 W/(m²·K); Optional triple-glazing, double-chamber configuration (5mm + 12A + 5mm + 12A + 5mm, K-value ≤1.2 W/(m²·K)). Functional coating: Low-E glass (70%-85% transmittance) blocks 80%-90% of infrared rays, while heat-reflective coated glass (30%-50% reflectivity) reduces summer air conditioning loads.Precision hardware and sealing systemConcealed hinges: Bear a load of up to 150kg, support 180° of seamless opening, and offer multi-point locking with 3-5 locking points. They offer RC2 pry resistance (European standard).EPDM sealing strips: Weather-resistant from -40°C to +80°C, with a compression set of ≤25% and a watertightness of 600Pa (equivalent to heavy rain-proof).
3.Aluminum Alloy Sliding Folding Windows: Suitable Building ApplicationsResidentialLarge-span spaces: Single windows can reach up to 3m x 2.5m, suitable for villa living rooms, balconies, or corner windows. They fold open fully, achieving "indoor-outdoor integration." Passive Houses: Combined with fresh air systems and ground-source heat pumps, high insulation (U-value ≤ 0.8 W/(m²·K)) reduces energy consumption and meets PHPP certification standards.Commercial BuildingsRestaurants and Cafés: Fully openable design creates an "open dining area," allowing for natural ventilation in summer and double-glazing for insulation in winter, reducing air conditioning energy consumption by 25%-30%.Office Building Curtain Walls: Wind pressure resistance reaches Level 9 (national standard), capable of withstanding wind speeds of 300 km/h (equivalent to a Level 17 typhoon), while also meeting fire escape requirements (single-sash opening width ≥ 0.8m).Public FacilitiesSchools and Hospitals: Laminated glass (6mm + 1.52 PVB + 6mm) with a multi-point locking system achieves EN12600 1B1 impact resistance for safety.Museums and Archives: Low-E glass with a UV blockage rate of ≥ 99% is used to protect exhibits from UV damage.4.Customization OptionsCustom Aluminum Windows Sizes and ShapesNon-standard customization is supported (minimum 300mm x 300mm, maximum 6m x 3m). Curved, trapezoidal, or polygonal windows can be designed to meet the needs of unique architectural shapes.Opening MethodsOne-way Folding: The window sash folds to one side, saving space and suitable for narrow balconies or corridors.Two-way Folding: The window sash folds to both sides, creating a central passageway, suitable for open-plan dining rooms or living rooms.Motorized Control: Integrated motor and sensor, supports mobile app or voice control, enabling automatic opening/closing and wind/rain sensing.Glass and Functionality UpgradesSmart Dimming Glass: Adjustable light transmittance from 10% to 80%, with one-touch switching between privacy and daylighting modes.Self-Cleaning Glass: The surface coating decomposes organic matter, reducing cleaning frequency by 50%. Suitable for high-rise buildings or heavily polluted areas.Fire-Resistant Glass: Fire resistance ≥ 60 minutes, meets GA165 standards, suitable for fire escapes or equipment rooms.Color and FinishMetallic Texture: Anodized (AA15 grade), creating matte finishes like champagne gold and rose gold.Stone-like Texture: 3D-printed to simulate marble or concrete textures, perfect for industrial-style architecture.
