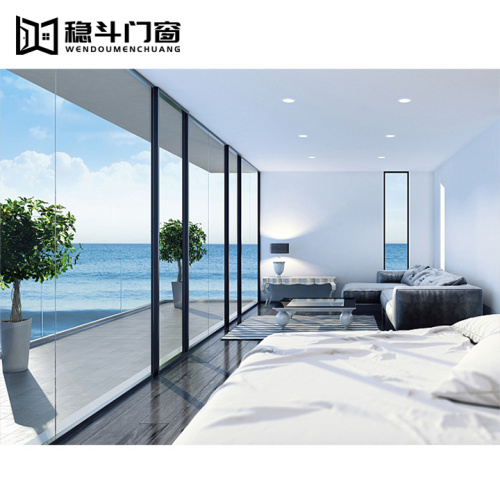

Glass Sliding Doors Aluminum Frame

$75-150 /Square Meter

Frame material	Aluminum Alloy
option
Contact Now

Payment Type: T/T,L/C
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean,Land
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-SD027

Brand: Wendou

Warranty Service: More Than 5 Years

After-sales Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection

Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects

Application Scenario: School, Hospital, Office Building, Apartment, Villa, Hotel, Warehouse

Design Style: Modern, Traditional, Farmhouse, Industrial, European, Transitional, Mid-Century Modern, French, Chinese

Place Of Origin: China

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: T/T,L/C

Incoterm: FOB,CFR,CIF,EXW

Product Description

1. Core Features and Data of Aluminum Sliding Doors

High Space Utilization:

Aluminum-framed glass sliding doors open horizontally, eliminating the need for a predetermined opening radius and saving over 50% of space. For example, at a 3-meter-wide balcony entrance, a traditional swing door would occupy 1.5 meters of space, while a sliding door only requires a 10-centimeter track width.

Excellent Lighting Performance:

With a glass ratio of 80%-90% and a light transmittance of 85% or higher, they significantly improve indoor brightness. For example, in a 10-square-meter room, using aluminum-framed glass sliding doors can increase natural lighting efficiency by 40% and reduce artificial lighting energy consumption by 30%.

Outstanding Thermal and Sound Insulation:

Using insulating glass (e.g., a 5+12A+5mm configuration) and thermally insulated aluminum profiles, the thermal conductivity coefficient (K) is as low as 2.0-2.8 W/(m²·K) and sound insulation reaches 32-35 decibels. In temperate climates, these doors and windows can increase indoor temperatures by 3-5°C in winter and reduce air conditioning energy consumption by 25% in summer.

Strong Wind Pressure Resistance:

The aluminum profile wall thickness is ≥1.8mm, and the multi-chamber design can withstand wind pressures of 2500-3000Pa, meeting the requirements of high-rise buildings and coastal areas. For example, in a level 12 typhoon, a 1.5m x 2.2m sliding door would deflect ≤2mm.

2. Material Composition and Processing of Aluminum Alloy Windows

Aluminum Profile Frame:

Base Material: 6063-T5 aluminum alloy with a tensile strength of ≥160MPa, a yield strength of ≥110MPa, and an elongation of ≥8%.

Surface Treatment: Fluorocarbon spray coating or electrostatic powder coating with a film thickness of ≥40μm is used. Weather resistance is over 15 years, and the salt spray test is ≥1000 hours without corrosion. Structural Optimization: A multi-chamber design (e.g., a 5-chamber structure) combined with insulation strips (PA66+GF25) reduces thermal bridging, achieving a thermal conductivity of only 0.16 W/(m·K).

Glass Configuration:

Single-layer tempered glass: 5-8mm thick, with impact resistance 3-5 times that of ordinary glass, resulting in blunt-angled shattered particles, and safety compliance with GB 15763.2.

Insulating glass: A common configuration is 5+12A+5mm (argon-filled), improving thermal insulation by 30% and UV rejection ≥99%.

Laminated glass: Utilizing 0.76mm PVB film, it achieves sound insulation of 35dB and meets EN 356 P2A penetration resistance.

Hardware:

Pulley system: Utilizing high-strength nylon and stainless steel bearings, with a load capacity ≥100kg, sliding resistance ≤1.5N/m, and a service life exceeding 100,000 cycles. Locks: Multi-point locking design with a pry-resistant deadbolt, offering a vandal-resistant opening time of 15 minutes or longer.

3. Application Scenarios and Selection Recommendations for Custom Aluminum Windows

Residential Sector:

Balcony Partitions: Utilize 12mm insulating glass and thermally insulated aluminum profiles to achieve a balance of daylighting and thermal insulation. High-rise residential projects have seen indoor temperatures increase by 4°C in winter and air conditioning energy consumption reduced by 28% in summer.

Indoor Partitions: Utilize wired glass or Changhong glass to achieve a balance between transparency and privacy. In loft-style apartments, this design can increase space utilization by 35%.

Commercial Buildings:

Shopping Mall Entrances: Utilize automatic sensor sliding doors with 12mm tempered glass, with a load capacity of 150kg per door and an average daily opening and closing frequency of over 5,000 times without failure.

Office Partitions: Utilize electrically atomized glass with dynamically adjustable light transmittance between 5% and 60%, meeting privacy requirements for meetings.

Public Facilities:

Hospital Corridors: Utilize antimicrobial-coated aluminum profiles and fire-resistant glass, achieving a fire resistance rating of ≥60 minutes and complying with the GB 50016 fire protection standard.

School Classrooms: Equipped with soundproof laminated glass, achieving a sound insulation of 40 decibels, effectively reducing external noise interference.

Adaptation for Special Environments:

Coastal Areas: Utilize 316 stainless steel hardware with corrosion-resistant fluorocarbon coating, achieving a salt spray test of ≥2000 hours without corrosion.

Alpine Areas: Utilize Low-E glass and warm-edge spacers, achieving a heat transfer coefficient as low as 1.8 W/(m²·K), suitable for extreme environments down to -40°C.

4. Aluminum Windows Installation Advantages and Technical Key Points

Modular Design:

Factory-prefabricated standardized components increase on-site assembly efficiency by 40%, shortening installation time to 0.5-1 day per unit. Compatible with a wide range of wall thicknesses (100-300mm), adjustable mounting frames enable precise installation. Sealing Technology:

EPDM sealing strips are used, with a compression set rate of ≤15%. Combined with silicone sealant, they achieve airtightness of GB/T 7106 standard level 8 (the highest level) and watertightness of level 6.

Drainage System:

The concealed drainage holes, when used with track slopes ≥3%, achieve a drainage efficiency of 2 L/min, effectively preventing rainwater backflow. For example, in areas with an annual rainfall of 1500 mm, the drainage system can withstand a 50-year rainstorm.

Optimized Installation Process:

A laser level is used for positioning, ensuring verticality deviation of ≤1 mm/m.

Dual fixing methods, including mechanical fixing and chemical anchors, achieve a pull-out strength of ≥5 kN.

Track leveling accuracy is controlled within ±0.5 mm to ensure smooth sliding.
