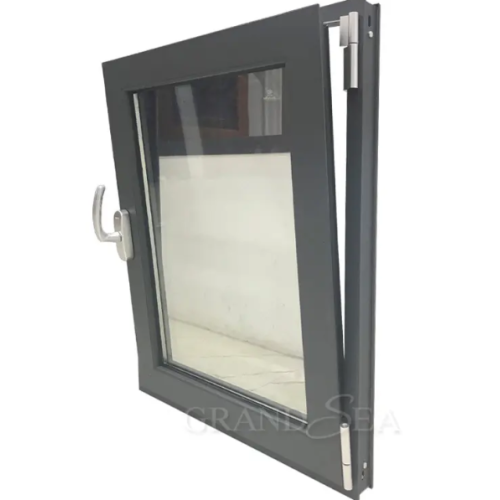

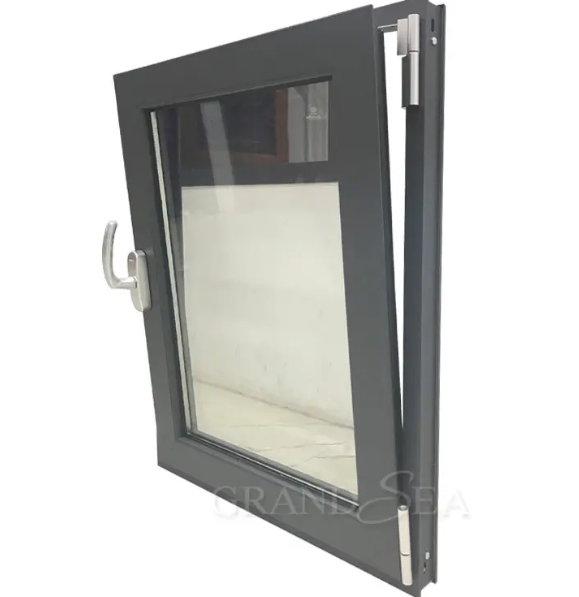

Single Handle Easy Control Tilt Turn Windows

Single Handle Easy Control Tilt Turn Windows

$75-150 /Square Meter

Frame material	Aluminum Alloy
option
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-TTW023

Brand: Wendou

Warranty Service: More Than 5 Years

After-sales Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection

Engineering Solution Capability: 3d Model Design, Total Solution For Projects, Graphic Design

Application Scenario: Hotel, Villa, Apartment, Leisure Facilities, Supermarket, Other, Basement, Garage &Amp; Shed, Gym

Design Style: Traditional, Contemporary, Modern, Transitional, European, French

Place Of Origin: China

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 10000㎡/month

Transportation: Ocean

Place of Origin: China

Supply Ability: 150000㎡/year

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

Single Handle Easy Control Tilt Turn Windows

1. Structural Features of Aluminum Tilt And Turn Windows

Single Handle Integrated Control

Realize "tilt-turn" dual-mode switching through a single handle:

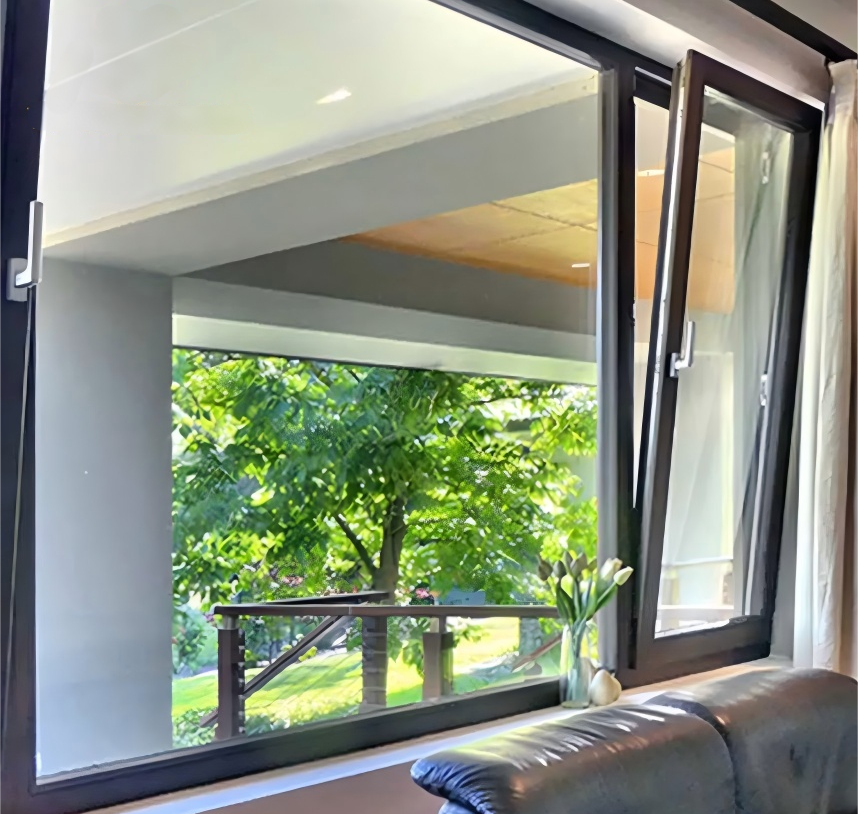

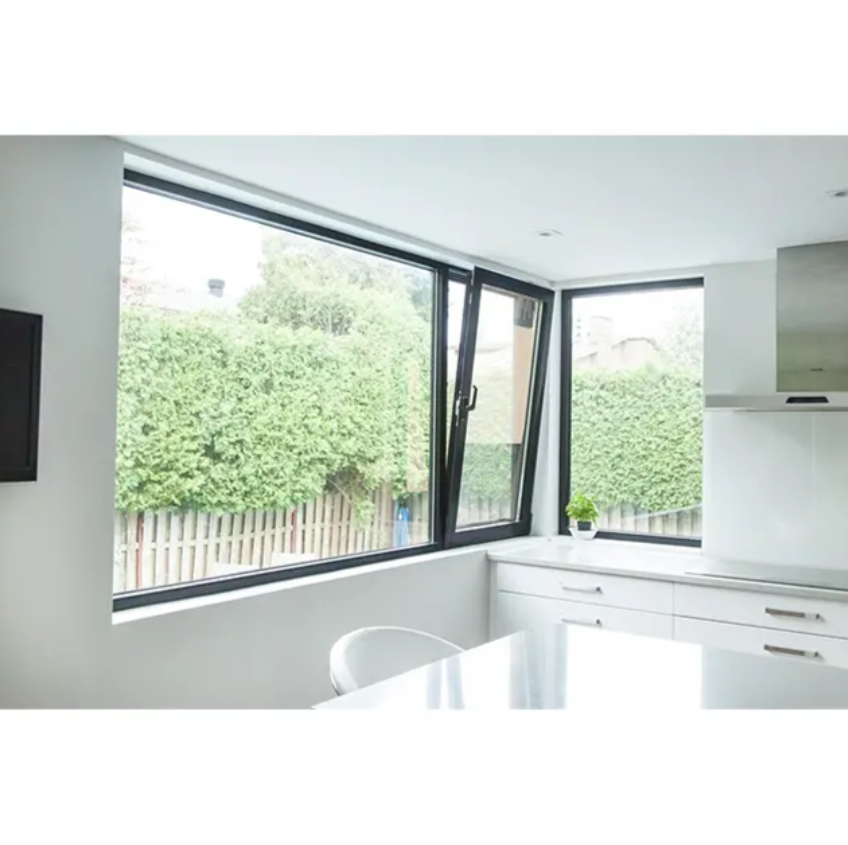

Tilt mode: The handle rotates 90° to 135°, and the top of the window sash tilts 10-15 cm toward the room to form a ventilation gap to avoid strong wind blowing directly.

Opening mode: The handle continues to rotate 180°, and the window sash can be completely opened toward the room, which is convenient for cleaning the outer side glass.

The handle design without base is adopted, and the installation position is flexible and suitable for different window types and sizes.

Hidden hinge system

The upper and lower hinges are fully hidden, supporting 180° inward opening and improving aesthetics.

The 2D adjustable lower hinge can be adjusted without removing the weight of the window sash, and the installation efficiency is increased by 40%.

Anti-misoperation device

The independent anti-misoperation device can be flexibly installed in different positions to prevent children from accidentally opening the window sash due to misoperation.

The corner drive device and the anti-misoperation device are integrated to adapt to more window types.

High load-bearing structure

Aluminum/zinc alloy hinges, with a load-bearing capacity of 80-130kg (such as the BKW 560/950 series), suitable for large-size window sashes (width up to 1600mm).

2. Data characteristics

Space efficiency

External space occupancy rate is reduced by 40%, only 5 cm of internal opening space is required, saving 15-20 cm of external space compared to traditional external opening windows.

Suitable for narrow window sills or small openings, such as balconies, attics and other scenes.

Ventilation performance

In the inverted mode, the ventilation time of a 15 square meter room is shortened to 18 minutes (traditional windows require 25 minutes), forming natural convection and avoiding the discomfort of direct blowing.

Energy-saving performance

With three-glass two-chamber (5Low-E+12A+5) glass, the K value of the whole window is as low as 0.8 W/(m²·K), which saves more than 25% energy compared to ordinary double-glazed windows.

Taking a 100 square meter house as an example, the annual heating energy consumption can be reduced by 900kWh and carbon emissions can be reduced by 0.58 tons.

Safety performance

The 8-point locking system has a pry resistance of 1500N, which is 3 times higher than that of traditional windows; the tilt-and-turn mode can prevent children from climbing and reduce the risk of accidental falls by 90%.

Complies with the European EN 13126-8 standard, and the load-bearing test has passed 130kg load cycles for 50,000 times without deformation.

3. Advantages of using Double Glass Tilt And Turn Windows

Space adaptability

Suitable for small apartments, LOFTs, balcony renovations and other scenes. A 30-square-meter apartment can be replaced with a casement tilt-and-turn window to free up a 1.2-meter-wide external corridor space.

Easy to maintain

The inward opening mode eliminates the need for high-altitude operations to clean the external side glass, reducing maintenance costs by 60%.

Health and safety

The tilt-and-turn ventilation mode reduces the risk of colds. A study by the Affiliated Hospital of Guangzhou Medical University showed that the respiratory infection rate of patients in wards using this window type decreased by 22%.

Excellent fire resistance, the tilt-and-turn state can provide an emergency escape route while preventing the direct spread of flames.

Sound insulation and noise reduction

The multi-cavity structure is combined with hollow glass, and the sound insulation performance reaches 35dB (RW), which is 10dB higher than that of ordinary windows. It is suitable for noisy environments such as airports and viaducts.

4. Suitable buildings for Tempered Glass Tilt And Turn Windows

High-rise residential buildings

Super-high-rise projects use aluminum casement and tilt windows with anti-falling devices to solve the safety hazards of outward-opening windows and meet ventilation needs.

Small apartment renovation

In the renovation of the courtyard house, this window type replaces the traditional sliding window, increases the space utilization rate by 20%, and achieves Class A energy-saving standards.

Medical buildings

The pediatric ward of the hospital uses antibacterial coated casement and tilt windows, combined with the tilt ventilation mode, to reduce the total number of air colonies by 58%, meeting the requirements of the "General Hospital Building Design Code".

Passive houses in severe cold areas

The passive house project uses this window type, combined with a three-glass two-cavity structure, to achieve air tightness level 8 and water tightness level 6. The indoor side profile temperature is maintained above 18°C in winter, completely eliminating condensation.

Educational institutions

Kindergartens, schools and other places use anti-misoperation devices and child lock designs to avoid the risk of accidental opening while ensuring ventilation needs.
