Customized Tilt Turn Aluminum Double Glass Casement Window

Customized Tilt Turn Aluminum Double Glass Casement Window

$75-150 /Piece/Pieces

Frame material	Aluminum Alloy
option
Contact Now

Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Piece/Pieces
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-TTW024

Brand: Wendou

Warranty Service: More Than 5 Years

After-sales Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection

Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects

Application Scenario: Apartment, Villa, Hotel, Leisure Facilities, Supermarket, Other, Basement, Gym, Garage &Amp; Shed

Design Style: Modern, Traditional, Contemporary, European, Transitional, French

Place Of Origin: China

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 10000㎡/month

Transportation: Ocean

Place of Origin: China

Supply Ability: 150000㎡/year

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CFR,CIF,EXW

Product Description

I. Product Core Features

The Customized Tilt and Turn Aluminum Double Glass Casement Window is a multifunctional window and door system that integrates ventilation, lighting, energy efficiency, and safety.

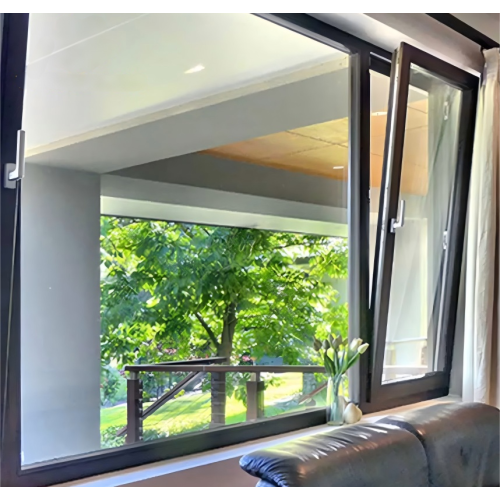

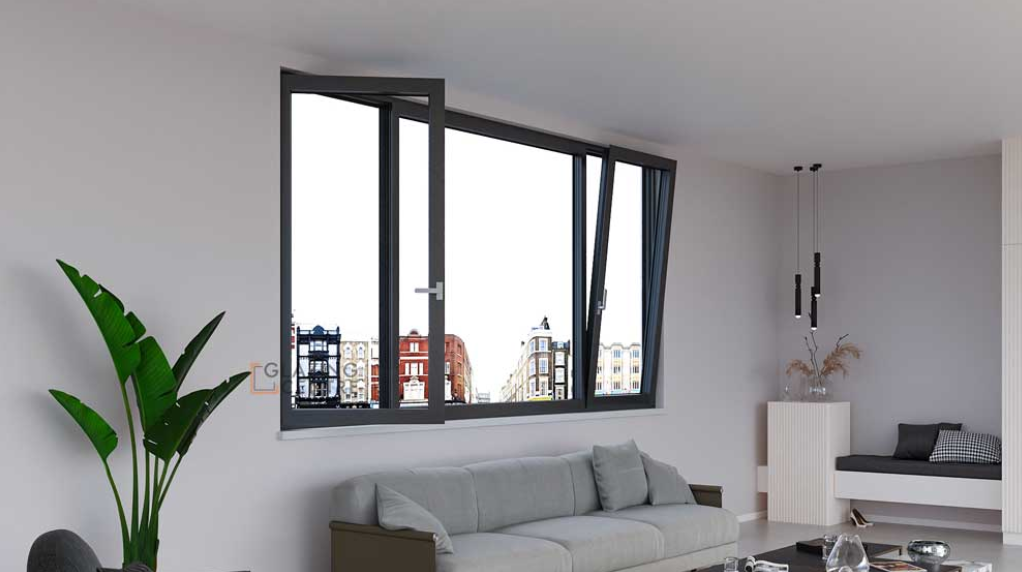

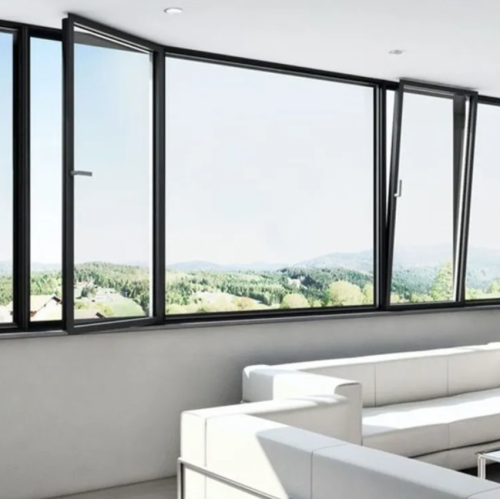

Its design incorporates European tilt-and-turn technology, allowing for two opening modes via a rotating window handle:

Tilt Mode: The top of the window sash tilts 10-15cm toward the interior, creating a safe ventilation opening to prevent rainwater intrusion and protect children from climbing hazards.

Open Mode: The window sash opens fully toward the interior, facilitating cleaning of the exterior window glass and emergency escape.

II. Structural Features of Aluminum Tilt And Turn Windows

Multi-Cavity Aluminum Alloy Profiles

Utilizing 6063-T5 or 6061-T6 aircraft-grade aluminum alloy, with a profile wall thickness of 1.4-2.5mm (up to 2.5mm for the door series), the internal multi-cavity structure effectively blocks heat conduction and withstands wind pressures of up to 4500Pa (equivalent to a force 14 typhoon). The concealed drainage channel design, coupled with the isobaric rain curtain principle, delivers a drainage capacity of 12L/s·m and IPX6 waterproofing.

Double-glazed hollow structure

Standard configuration: 5mm+12A/19A+5mm double-layer tempered glass, with optional Low-E coating, argon-filled, or triple-glazed, two-chamber construction. The thermal conductivity (U-value) is as low as 0.22-1.8W/(m2·K), and sound insulation reaches RW31-35dB.

Silicone structural adhesive is used to bond the glass to the profile, increasing wind load resistance by 50%.

German-imported hardware system

Equipped with three-dimensional adjustable hinges, with a load capacity of 80-150kg and a lifespan of over 50,000 openings.

Multi-point locking system, with locking points ≤300mm apart, achieves RC2 security rating (AS/NZS 4131 standard).

III.Double Glass Tilt And Turn Windows Material Features

Aluminum alloy base material

Yield strength ≥160 MPa, elongation ≥8%, corrosion resistance meets AS2047 standards, suitable for coastal high salt spray environments.

Surface treatment options include fluorocarbon spray (PVDF), powder coating, or anodizing, with over 25 years of weather resistance.

Glass Configuration

Low-E coated glass: reflects over 80% of infrared radiation, reduces radiant heat transfer, and improves energy efficiency by 30%.

Laminated safety glass: provides strong impact resistance and meets AS1288 child safety requirements.

Sealing Material

EPDM rubber sealing strips, temperature resistant from -40°C to +80°C, and airtightness up to AS2047 Class 4.

Silicone sealant is UV-resistant and aging-resistant, with a service life exceeding 15 years.

IV. Process Features: Precision Manufacturing and Modular Installation

Profile Extrusion and Corner Connections

Using a 6,000-ton extruder, profile dimensional accuracy is ±0.1mm. Corners utilize two-component glue injection technology, achieving a strength of 3200N (AS2047 test method).

Glass Processing

Glass is assembled using a fully automatic insulating glass production line. Aluminum strip bending reduces gas leakage, and the argon filling purity is ≥95%.

Modular Installation System

The window frame and wall are secured with mechanical fastening and structural adhesive bonding, achieving installation accuracy of ±1mm and waterproofing performance that meets AS4200 standards.

Prefabricated sub-frame systems are available, increasing on-site installation efficiency by 40%.

V. Application Architectural Scenarios

High-End Residential

Suitable for villas, large apartments, and other applications, the narrow frame design (glass panel frame sightline is only 35mm) maximizes daylighting and enhances the sense of transparency.

The electric window opening system can be linked to smart home devices for remote control and automatic closing based on wind and rain sensors.

Commercial Buildings

Public buildings such as hospitals and schools utilize an antimicrobial powder coating (compliant with ISO 22196) and 304 stainless steel mosquito screens with a pore size of ≤0.8mm and a barrier rate of 99%.

Office building curtain wall systems integrate tilt-and-turn windows, ensuring natural ventilation while maintaining a clean facade.

Passive Building

Triple-glazed, dual-chamber windows with Low-E coating achieve a total window heat transfer coefficient (K) of ≤0.8W/(m2·K), meeting Nathers 8-star energy efficiency standards.

VI. Custom Aluminum Windows Options

Size and Shape

Customizable sizes are supported, with the maximum single window size reaching 2480mm x 1200mm (2.98m2).

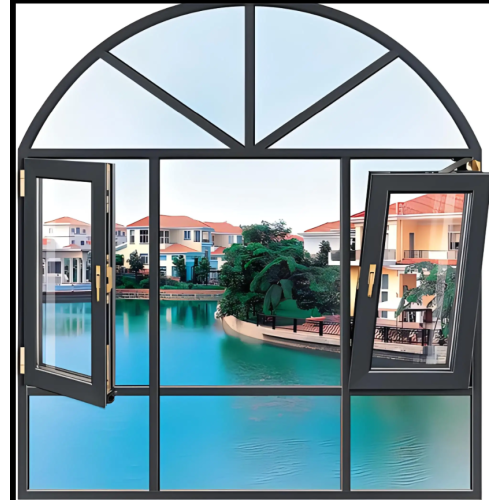

Special shapes such as curved and triangular windows can be designed to complement unique architectural designs.

Color and Finish

Available in five standard colors (matte black, white, dark gray, etc.) and 20 premium colors, with RAL color palette customization supported. The wood grain transfer process simulates the texture of walnut, oak, and other woods, with a color difference of ΔE ≤ 1.5.

Functional Upgrades

Intelligent Control: Integrated MQTT protocol sensors monitor real-time temperature, humidity, and PM2.5 data, and integrate with the fresh air system.

Safety: Built-in wire mesh or invisible security bars increase impact resistance by 200%.

Soundproofing: Triple-layer laminated glass achieves a sound insulation rating of RW40dB, making it suitable for buildings near airports and overpasses.
