Thermal Break Aluminium Tilt and Turn Windows

Thermal Break Aluminium Tilt and Turn Windows

$75-150 /Square Meter

Frame material	Aluminum Alloy
option
Contact Now

Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-TTW025

Brand: Wendou

Warranty Service: More Than 5 Years

After-sales Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection

Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects

Application Scenario: Hotel, Villa, Apartment, Basement, Garage &Amp; Shed, Gym, Leisure Facilities, Supermarket, Other

Design Style: Modern, Traditional, Contemporary, European, Transitional, French

Place Of Origin: China

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 10000㎡/month

Transportation: Ocean

Place of Origin: China

Supply Ability: 150000㎡/year

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CFR,CIF,EXW

Product Description

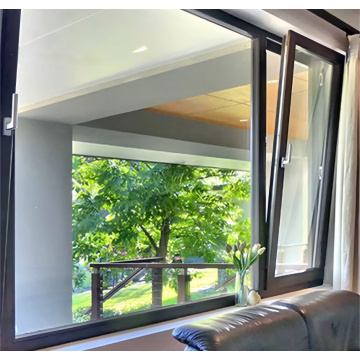

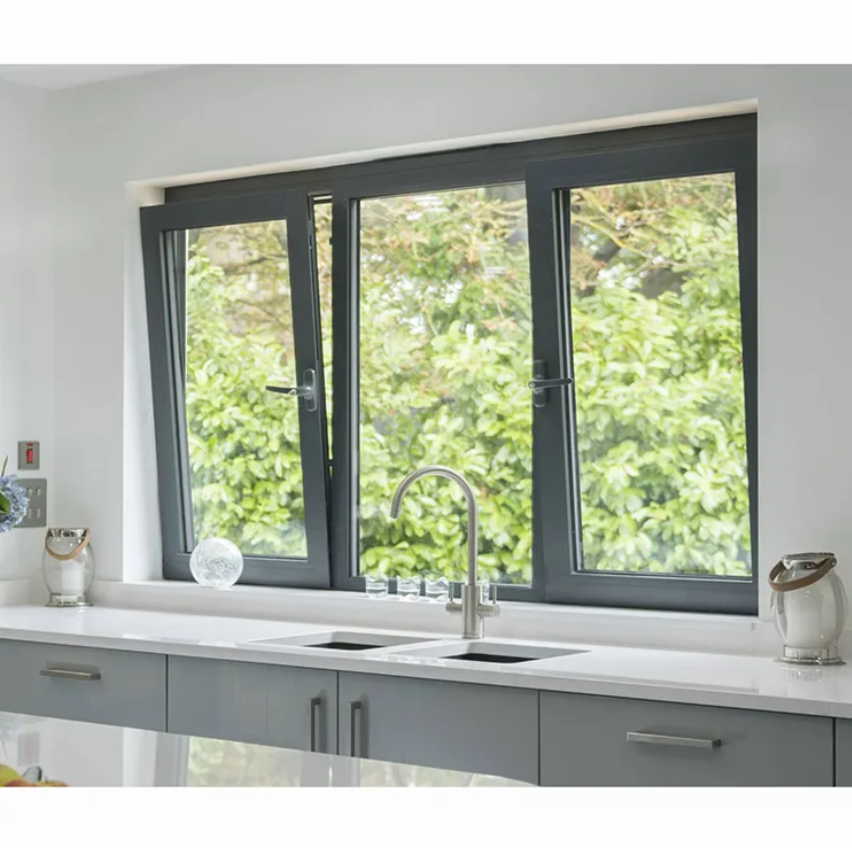

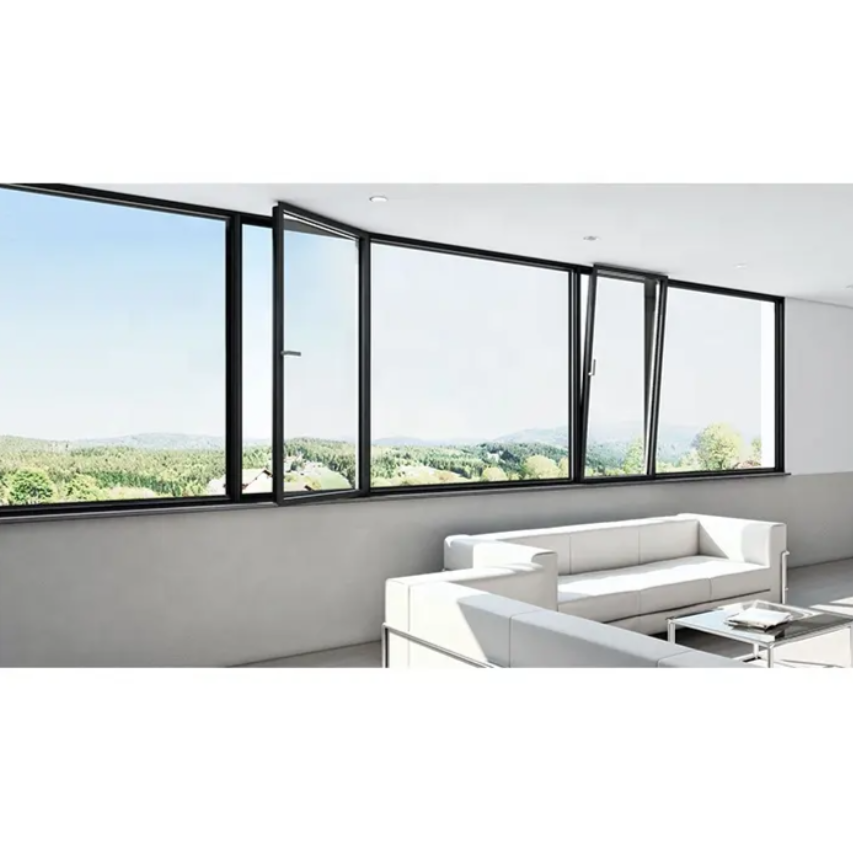

Thermal Break Aluminum Tilt And Turn Windows

I. Product Core Features

Thermal Break Aluminum Tilt and Turn Windows (inner-opening aluminum tilt and turn windows) are an energy-saving window and door system that integrates thermal insulation, ventilation, and safety features. The core design of the Aluminum Tilt and Turn Windows includes two opening modes:

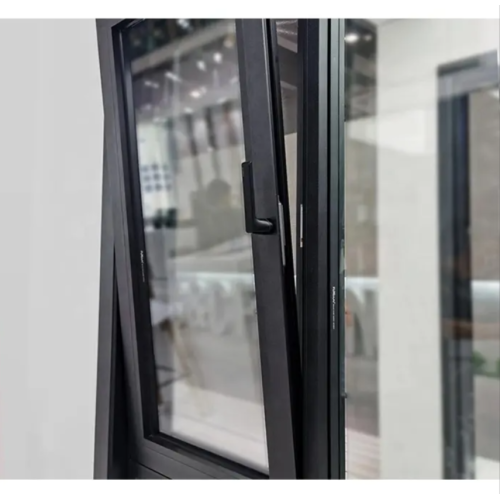

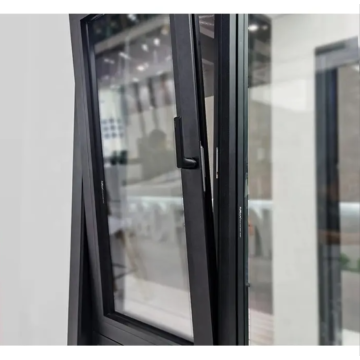

Tilt Mode: The top of the window sash tilts 10-15cm toward the interior, creating a safe ventilation opening to prevent rainwater intrusion and protect children from climbing hazards.

Open Mode: The window sash opens completely toward the interior, facilitating cleaning of the exterior window glass and emergency escape.

II. Appearance Features

Narrow Frame Design

The visible width of the window frame is typically 35-65mm, with concealed gutters, creating a clean and transparent visual effect, increasing daylighting by 10%-15%.

Custom shapes such as curved and triangular windows are available to suit specific architectural requirements.

Color and Finish

Standard colors (matte black, white, and dark gray) and over 60 custom colors are available, with precise matching to the RAL color chart. Surface treatments include fluorocarbon spraying (weather resistance 25+ years), anodizing (metallic texture), and wood grain transfer printing (color difference ΔE ≤ 1.5), meeting the needs of various architectural styles.

Glass Configuration

Double-glazed insulated glass (5+12A+5mm to 6+19A+6mm) is standard, with options including triple-glazed, two-chamber glass (6+9A+6+9A+6mm) or Low-E coated glass, achieving a U-value as low as 0.8W/(m2·K).

Compatible with laminated safety glass (impact resistance increased by 200%), frosted glass (light-transmitting but shadow-proof), and smart dimming glass (voltage-controlled transparency).

III. Advantages of Double Glass Tilt And Turn Windows

Energy Savings

The thermally-insulated aluminum profile (PA66 + GF25 insulation strips) combined with insulated glass achieves a total window heat transfer coefficient (K) of ≤1.8W/(m2·K), meeting Passive Building standards (Nathers 8 stars). The triple-glazed, dual-chamber design with Low-E coating can reduce air conditioning energy consumption by 30%-40%, saving over 2,000 yuan in electricity bills annually (based on a 100 square meter residence).

Safety and Security

The German-imported multi-point locking system (locking point spacing ≤300mm) achieves RC2 security (AS/NZS 4131 standard) and an impact resistance exceeding 3,000N.

The tilt-to-close mode limits the opening range to prevent children from falling. Built-in wire mesh or invisible security bars (pore size ≤0.8mm) offer a 99% barrier efficiency.

Comfort and Durability

The EPDM rubber sealing strips and concealed drainage system achieve AS2047 Class 4 airtightness and RW31-35dB sound insulation, effectively blocking traffic noise.

The aluminum alloy base material meets AS2047 corrosion resistance standards, boasting a service life exceeding 50 years and maintenance costs as low as 30% of traditional doors and windows.

IV. Aluminum Alloy Windows Processing Features

Profile Processing

Using a 6,000-ton extruder, profile dimensional accuracy is ±0.1mm. Two-component glue injection corner code technology is used for corners, achieving a strength of 3200N (AS2047 test method).

The thermal insulation strips and aluminum alloy profiles are mechanically rolled and laminated, achieving a peel strength of ≥12N/mm, preventing debonding after long-term use.

Glass Processing

Insulating glass is assembled using a fully automated production line. The aluminum strip bending process reduces gas leakage. The argon filling purity is ≥95%, resulting in a service life exceeding 15 years.

Low-E coated glass is deposited using magnetron sputtering technology, with an emissivity of ≤0.15 and reflecting over 80% of infrared rays.

Installation System

The window frame and wall are secured with a dual mechanism of mechanical fixing and structural adhesive bonding, achieving an installation accuracy of ±1mm and waterproofing that meets AS4200 standards.

Support for prefabricated sub-frame systems increases on-site installation efficiency by 40%, making it suitable for rapid construction in high-rise buildings.

V. Application Architectural Environment

High-end residential

Villas, large apartments, and other residential applications prefer narrow frames and large glass (maximum single window size 2480mm x 1200mm) to enhance the sense of airiness.

The electric window opening system can be linked to smart home devices, enabling remote control and automatic closing with wind and rain sensors.

Commercial Buildings

Public buildings such as hospitals and schools use an antibacterial powder coating (compliant with ISO 22196) with 304 stainless steel mosquito screens with a pore size of ≤0.8mm and a 99% barrier rate.

Office building curtain wall systems integrate tilt-and-turn windows to meet natural ventilation needs while maintaining a clean facade.

Passive Building

The triple-glazed, double-chamber design with Low-E coating achieves a total window heat transfer coefficient (K) of ≤0.8W/(m2·K). Combined with a fresh air system, this system achieves zero-energy ventilation.

VI. Selection Guide

Performance Requirements Prioritization

Energy Savings Prioritized: Choose triple-glazed, double-chambered windows with Low-E coating and warm-edge spacers, with a U-value ≤ 0.8W/(m2·K).

Soundproofing Prioritized: Laminated glass (PVB thickness ≥ 0.76mm) with EPDM sealing strips, with a RW value ≥ 40dB.

Security Prioritized: Use an anti-theft hardware system (RC2 grade) with laminated safety glass, with an impact resistance ≥ 3000N.

Size and Opening Method

The maximum size of a single window is recommended to be no more than 2.5m2 (weight ≤ 150kg). Window sizes exceeding this size require a reinforced center support design.

For high-rise buildings, a tilt-to-turn design is preferred to minimize the risk of falling outward-opening windows. Low-rise residential buildings can combine inward-opening windows with screens.

Budget and Cost Balancing

Economical: Double-glazed, double-chambered windows with standard hardware, suitable for ordinary residences.

High-end: Triple-glazed, double-chambered windows with Low-E coating and imported hardware, suitable for passive buildings or commercial projects.
