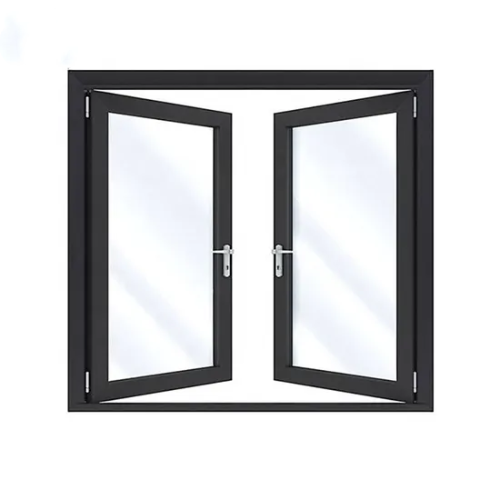

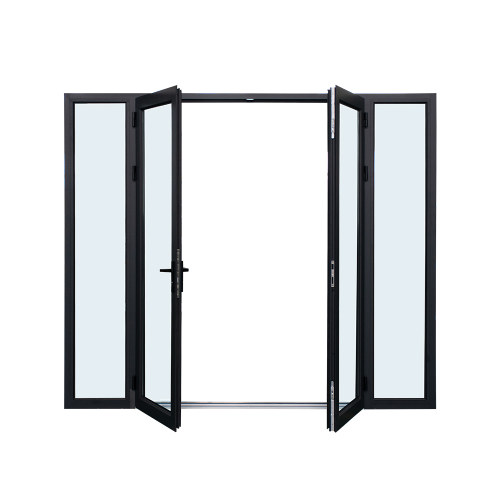

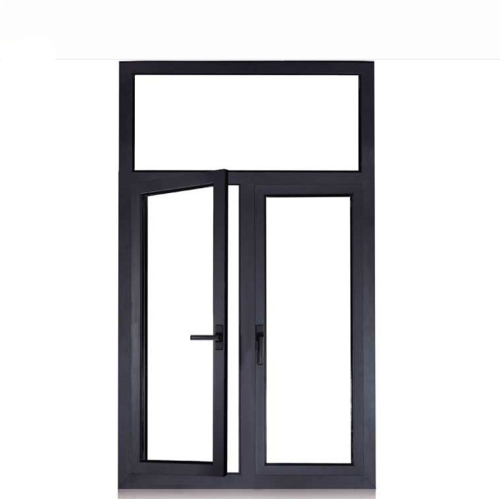

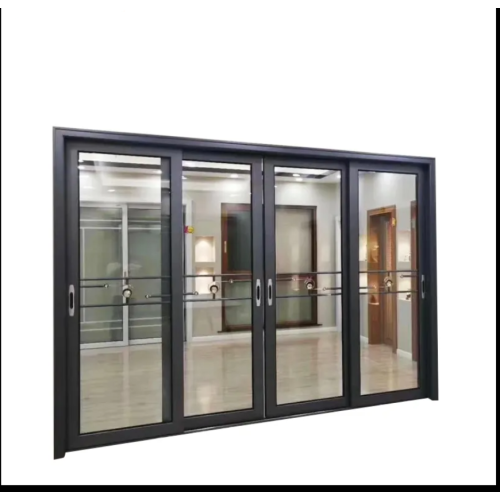

Custom aluminum commercial doors

$75-150 /Square Meter

Frame material	Aluminum Alloy
option	Based on customer's needs
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-CMD013

Brand: Wendou

Warranty Service: More Than 5 Years

After-sales Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection

Engineering Solution Capability: 3d Model Design, Graphic Design, Total Solution For Projects

Application Scenario: Hotel, Villa, Apartment, Hospital, School, Warehouse, Supermarket, Workshop, Leisure Facilities, Bathroom

Design Style: Modern, French, Chinese, Farmhouse, Industrial, Asian

Place Of Origin: China

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

Customized Aluminum Commercial Doors are door systems designed and manufactured using aluminum alloy as their core material, tailored to the specific needs of commercial venues (such as size, functionality, aesthetics, and security level). Their core advantage lies in overcoming the limitations of standard products. By integrating modular components, high-performance materials, and intelligent technology, they deliver precise, customized solutions tailored to each door. These doors are widely used in high-end retail, office, medical, and industrial sectors.

1. Aluminum Doors Structural Types

Unitary Frame Structure

Design Principle: Using aluminum alloy profiles as the skeleton, these doors are mechanically joined or welded to form independent doorframe units, which are then embedded with glass, panels, or decorative panels.

Features: High structural strength, capable of withstanding large glass panels (e.g., single panels ≥ 3 square meters) and heavy locks; modular design facilitates rapid on-site installation and ongoing maintenance.

Applications: Main entrances to shopping malls, bulletproof doors at banks, and airport security checkpoints. Thermal Insulation Structure

Technical Core: Polyamide (PA66+GF25) insulation strips are embedded within the aluminum alloy profile to block heat conduction paths. Combined with insulating glass (e.g., 6Low-E+12A+6), this achieves a U-value of ≤1.8W/(m²·K).

Advantages: Energy efficiency is increased by over 40%, making it suitable for applications requiring strict temperature control (e.g., cold chain warehouses and data centers).

Variations: Vacuum glazing or aerogel filling can be added to further reduce heat loss.

Explosion-Resistant/Ballistic Composite Structure

Layer Composition: 3mm aluminum alloy armor plate outer layer, Kevlar fiber or ceramic composite filling in the middle, and fireproof board inner layer, with a total thickness of over 50mm.

Performance Standard: EN 1522 FB4 ballistic resistance test certified or GA667-2006 blast resistance certified, capable of withstanding pistol and rifle bullets and blast waves.

Application Scenario: High-security locations such as government agencies, vaults, and embassies and consulates. Invisible Folding Structure

Mechanical Innovation: Utilizing a synchronous belt drive and concealed hinge system, the folded door leaf measures only 150mm thick, virtually disappearing into the wall.

Space Savings: Compared to traditional swing doors, it saves up to 70% of space, making it ideal for narrow corridors or multi-purpose halls.

Drive Mode: Supports manual, electric, or voice control, with optional anti-pinch sensors and slow-stop functions.

2. Custom Aluminium Doors Options

Size and Shape Customization

Non-standard Sizes: Supports large doors with a height of 6 meters or more and a width of 4 meters or more, suitable for open spaces such as lobbies and exhibition halls.

Special Shape Designs: Customizable curved, triangular, and polygonal door shapes can be created to match the curves of building facades or brand logos.

Opening Combinations: Offers 12 opening modes, including single-opening, double-opening, bi-folding, pivoting, sliding, and folding. Supports drive modes such as floor springs, ceiling-hung, and electric guide rails.

Surface Treatment

Metal Texture: Anodizing (matte/gloss), electrophoretic coating, fluorocarbon spraying (30-year weather resistance), supporting the full range of RAL/NCS color palettes.

Bionic Texture: Wood grain transfer (≥95% fidelity), stone etching, brushed/matte finishes, simulating the feel of natural materials.

Functional Coating: Antibacterial coating (inhibits 99.9% of E. coli), self-cleaning coating (contact angle ≥150°), anti-fingerprint coating (suitable for high-frequency touch scenarios).

Functional Module Integration

Intelligent System: Embedded with facial recognition, fingerprint lock, QR code scanning, and mobile app remote control modules, supporting integration with fire and security systems.

Environmental Interaction: Integrated temperature and humidity sensors, air quality monitor, and LED display for real-time display of environmental data or advertising information.

Emergency Design: Equipped with escape handles, window breakers, and emergency power supply, meeting fire safety regulations.

3. Advantages of Aluminum Commercial Doors

Precise Performance Match

Customize wind pressure resistance, airtightness, and watertightness levels based on specific application requirements (e.g., coastal areas require resistance to a Category 12 typhoon), eliminating the waste of standard products with either excessive or insufficient performance.

For example, customizing a soundproof door with Rw ≥ 45dB for high-noise environments (such as those near airports) improves noise reduction by 30% compared to standard products.

Lifecycle Cost Optimization

Aluminum alloy meets AAMA 2605 corrosion resistance standards and requires no replacement for 20 years. The modular design reduces maintenance effort, reducing single-time maintenance costs by over 50%.

Energy-saving doors (U-value ≤ 1.5W/(m²·K)) can save approximately 2,000 yuan per 10 square meters (calculated at 0.5 yuan per kWh) annually in northern heating regions.

Brand Enhancement

Through customized appearance (such as corporate colors and logo embossing) and intelligent interactive features, doors are transformed into brand displays, enhancing customer experience and retention. Brand stores feature gold brushed aluminum doors with dynamic lighting effects, increasing customer traffic by 15%.

4. Application Scenarios

High-end Retail and Commercial Complexes

Customized transparent glass doors (light transmittance ≥ 90%) display merchandise, integrated with intelligent sensor systems for contactless access, enhancing shopping convenience and safety.

Medical and Educational Facilities

Hospital operating room doors feature antimicrobial coatings and airtight designs to prevent cross-infection. School classroom doors integrate sound insulation modules and ventilation louvers to create a healthy learning environment.

Industrial and Logistics

Cold storage doors feature customized low-temperature sealing strips (non-brittle at -40°C) and fast-acting motors to minimize cooling loss. Factory dust-proof doors utilize brush seals and positive pressure ventilation to meet cleanroom requirements.

Cultural and Public Buildings

Museum display cabinet doors utilize low-reflection glass and constant temperature control to protect cultural relics. Library doors integrate sound-absorbing strips and automatic door closers to maintain quiet reading. Special safety scenarios

Nuclear power plant control room doors are custom-filled with lead sheeting (radiation shielding thickness ≥ 10mm), meeting the GB 18871-2002 radiation protection standard.
