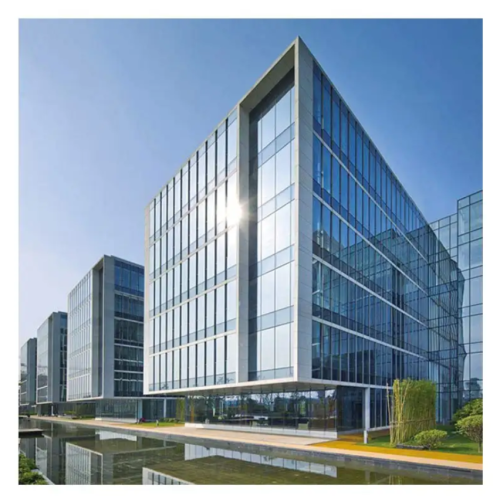

Commercial Building Aluminum Frame Glass Panels

Commercial Building Aluminum Frame Glass Panels

$75-150 /Square Meter

Material	Aluminum
option
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: shenzhen

Description

Product Attributes

Model No.: WD-CWL013

Brand: Wendou

Variety: Curtain Walls

After-sales Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Return And Replacement

Application Scenario: Other, Exterior, Entry, Courtyard, Farmhouse, Sports Venues, Hotel, Villa, Leisure Facilities, Apartment, Office Building, Hospital, School, Mall, Supermarket, Workshop, Warehouse, Park

Place Of Origin: China

Screen Netting Material: Aluminum Alloy/Stainless steel/Fiberglass

Main Material: Aluminum alloy+Glass+Accessories

Glass: Tempered glazing+Laminated glazing+Low-E glazing+Reflective glazing+Frosted glazing

Color: Customized based on your needs

Hardware: Germany brand/Chinese brand/American brand

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/M

Certificate: NFRC/CE/AS2047

HS Code: 7610100000

Port: shenzhen

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

Commercial Building Aluminum Frame Glass Panels (CABs) are building enclosure or partition systems using aluminum alloy profiles as the frame and glass as the infill material. They are widely used in commercial building facades, curtain walls, interior partitions, doors, and windows.

1. Aluminum Curtain Wall Core Structure

Aluminum alloy frame: Utilizing 6063-T5/T6 grade aluminum profiles, thermal insulation (optional) enhances thermal performance. With a wall thickness of 2.5-3.5mm, they meet the strength and durability requirements of commercial buildings.

Glass panel: Typically, 6-12mm tempered glass is used (with optional Low-E coating, laminated glass, or insulating glass). Individual panels can reach up to 3m x 6m, enabling unobstructed views across large spans.

Connection System: Glass is secured using mechanical clamps, structural adhesive, or bolts, with a concealed gutter design ensuring waterproofing and airtightness.

2. Advantages of Aluminum Frames For Curtain Wall Decoration

Lightweight and High Strength

Aluminum alloy has a density only one-third that of steel, yet boasts a tensile strength of 160-200 MPa, making it capable of supporting large glass panels. Aluminum-framed glass curtain walls in shopping malls are 70% lighter than traditional stone curtain walls, significantly reducing structural costs.

Weatherproof and Low-Maintenance

The surface is anodized (AA15 grade) or fluorocarbon spray-coated (PVDF), with a salt spray resistance of over 2,000 hours, making it suitable for coastal and polluted environments. Lifecycle costs are 35% lower than those of glass curtain walls, and regular rust prevention or recoating is unnecessary.

Energy Saving and Environmental Protection

The thermally-insulated aluminum frame, combined with insulating glass (e.g., 6+12A+6), can achieve a thermal conductivity coefficient (K) as low as 1.8 W/(m²·K), meeting green building energy-saving standards. The aluminum alloy recycling rate exceeds 95%, meeting sustainable development requirements.

3. Design Style

Minimalist Style

Using ultra-narrow aluminum frames (frame width ≤ 40mm) and large glass panels, the design achieves a "frameless window" visual effect. The brand flagship store's aluminum-framed glass curtain wall contrasts with the white stone interior, enhancing the sense of technology and transparency.

Industrial Design

Preserving the original texture of the aluminum frame, paired with a matte black oxidized finish and exposed mechanical connectors, creates a striking aesthetic of ruggedness and refinement. This style is employed in the Creative Park office, where the aluminum frame creates a material dialogue with the red brick walls.

Parametric Design

The modular combination of aluminum alloy profiles allows for the realization of complex forms such as curved surfaces, folded lines, and gradients. The Art Center utilizes parametric splicing of aluminum-framed glass curtain walls, creating dynamic light and shadow effects, making it a city landmark.

4. Compatible Commercial Building Types and Application Scenarios

Shopping Centers

Applications: Facade Curtain Walls, Atrium Partitions

Core Requirements: Brand Display, Natural Lighting, and Crowd Guidance

Office Buildings

Applications: Lobby Entrances, Elevator Hall Enclosures

Core Requirements: Modern Appearance, Soundproofing, and Energy Efficiency

Hotels

Applications: Floor-to-ceiling Windows in Guest Rooms, Banquet Hall Partitions

Core Requirements: Views, Privacy, and Fire Resistance

Case Study: A high-rise office building utilizes an aluminum-framed glass curtain wall. By integrating Low-E coated glass with motorized sunshades, it reduces air conditioning energy consumption by 25% while improving indoor comfort.

5. Assembly Process and Quality Control

Standardized Assembly Procedures

Measurement and Setout: Use a laser level to determine the installation baseline, with an accuracy of ≤1mm/10m.

Frame Installation: Secure the aluminum alloy columns to the building structure with chemical bolts, with spacing ≤1200mm.

Glass Fixing: Use structural adhesive (neutral silicone adhesive) to bond the glass, with a gap width of 12-15mm and a depth of ≥8mm. Sealing: Apply weather-resistant adhesive to the frame joints, creating an R=8mm radius to prevent water accumulation and leakage.

Key Quality Control Points

Airtightness Test: Tested using the pressure differential method, air leakage ≤ 0.3 m³/(m·h) (National Standard GB/T 7106-2008).

Flatness Verification: Use a 2m ruler to check, surface flatness error ≤ 1.5mm/2m.

Waterproofing: Verify leak-free performance through a water spray test (2L/(min·m²)).

6. Aluminum Glass Curtain Wall Care and Maintenance

Daily Cleaning

Wipe the glass with a neutral detergent (such as dishwashing liquid) and a soft cloth. Avoid using steel wool or corrosive solvents.

Stains on the aluminum frame can be removed with alcohol. Stubborn stains can be gently removed with toothpaste.

Regular Inspections

Check the sealant for aging and cracking quarterly, and replace any damaged parts promptly. Check gutters annually for blockage and remove any accumulated dust and debris.

Professional Maintenance

Every five years, renew the aluminum frame with a fluorocarbon spray coat to restore its gloss and weather resistance.

If the glass is broken, it must be replaced by a professional using a suction cup to avoid secondary damage.
