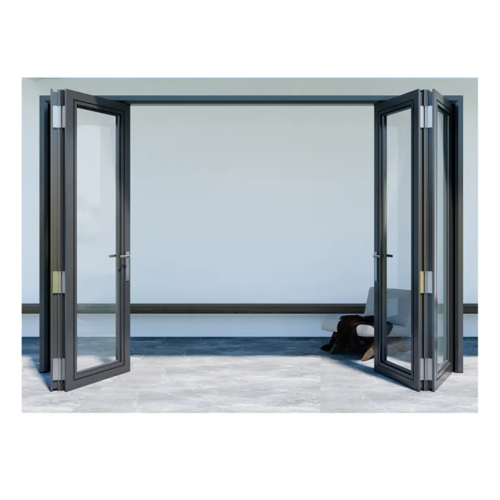

Accordion Aluminium Frame Glass Door

$75-150 /Square Meter

Frame material	Aluminum Alloy
option
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,EXW,CIF
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-FD022

Brand: Wendou

Warranty Service: More Than 5 Years

After-sales Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection

Engineering Solution Capability: Total Solution For Projects, 3d Model Design, Graphic Design

Application Scenario: Supermarket, Hospital, School, Office Building, Apartment, Hotel, Warehouse, Workshop, Farmhouse

Design Style: Modern, Traditional, Farmhouse, Industrial, European, French, Transitional, Chinese

Place Of Origin: China

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T

Incoterm: FOB,CFR,EXW,CIF

Product Description

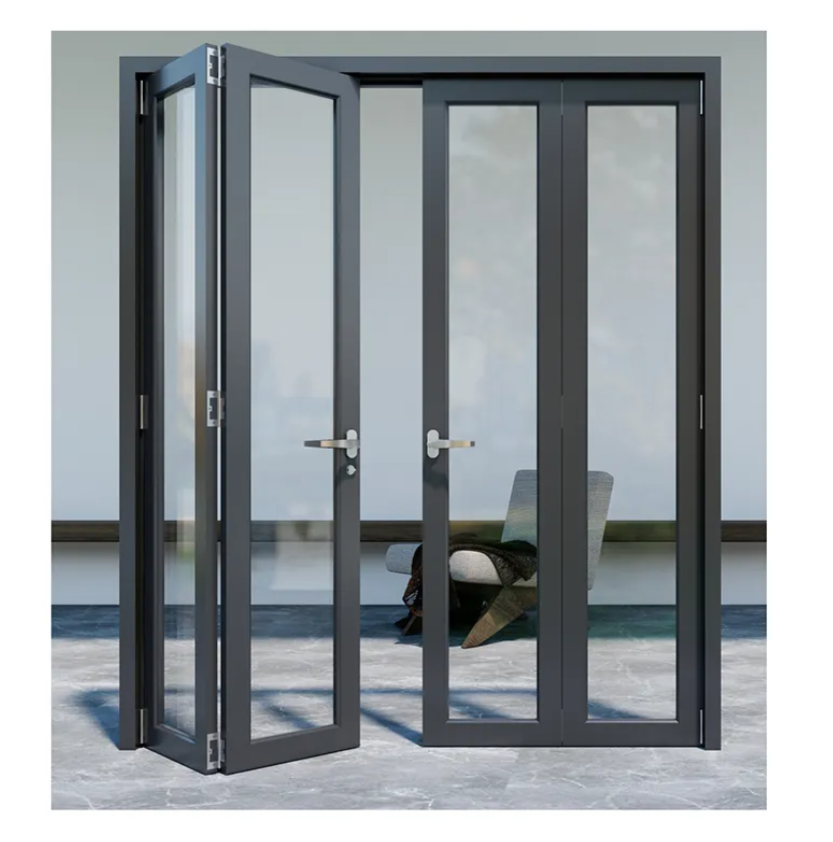

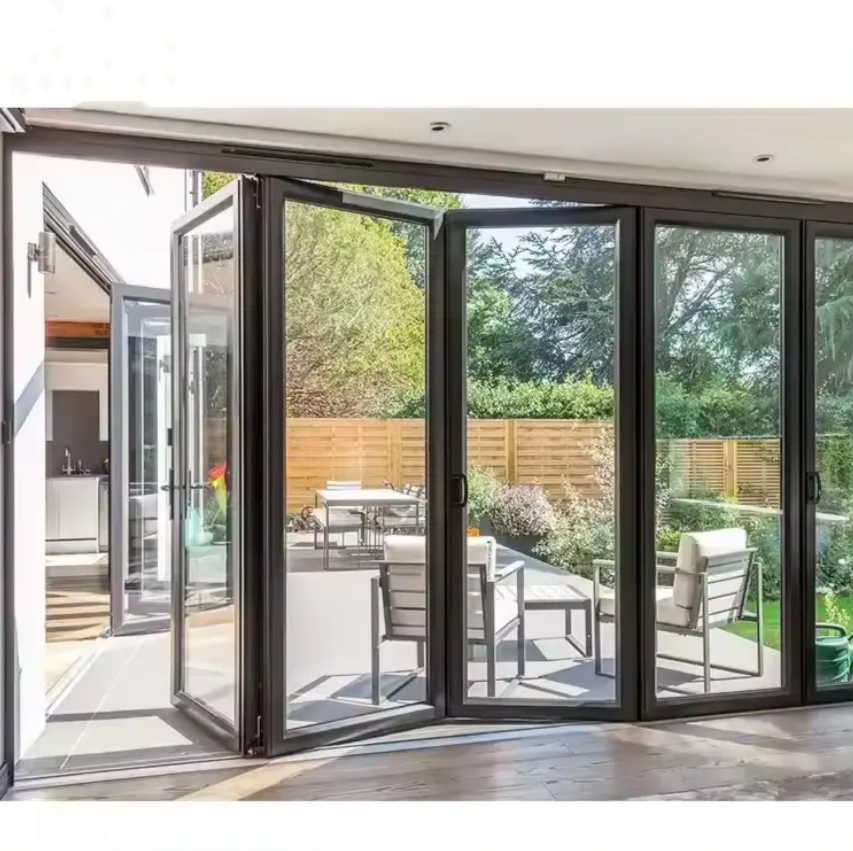

What is Accordion Aluminium Frame Glass Door?

Accordion Aluminium Frame Glass Door is a folding door system with aluminum alloy as frame and glass as panel. Its design is inspired by the folding structure of an accordion. It realizes bidirectional folding by connecting hinges of multiple door panels. The maximum opening degree can reach 180 degrees, forming an accessible space. This product combines modern aesthetics and functionality and is widely used in commercial, residential and industrial fields.

Aluminum Folding Doors Core Features

Material and Structure

Frame Material: 6063-T5 aluminum alloy profile, wall thickness 1.2-2.0mm, tensile strength ≥205MPa, yield strength ≥110MPa, to ensure a stable structure.

Glass Configuration: Standard 5+12A+5mm hollow tempered glass (optional Low-E glass), light transmittance ≥80%, thermal insulation performance increased by 30%.

Folding Design: Single leaf width ≤1000mm, space occupancy reduced by 70% after folding, suitable for narrow passages.

Performance parameters

Air tightness: Reach national standard level 6, air leakage ≤0.5m³/(m·h), effectively blocking dust and noise.

Water tightness: Water pressure resistance ≥350Pa, no leakage in heavy rain weather.

Wind pressure resistance: Passed level 9 wind pressure test (wind speed ≥24.4m/s), suitable for coastal areas.

Sound insulation: After matching with hollow glass, the sound insulation value reaches RW=35dB, meeting the office quietness requirements.

Durability

Hardware: The hinge is made of 304 stainless steel, with a load-bearing capacity of ≥150kg/set, and a folding life of ≥100,000 times.

Surface treatment: Fluorocarbon spraying process, corrosion resistance reaches AAMA 2605 standard, salt spray test ≥2000 hours.

Bifolding Doors Aluminum Glazing Double Glass Application scenario

Commercial space

Shopping mall atrium: As a temporary partition, quickly switch between open/closed modes to improve space utilization.

Restaurant private room: Fold to form a transparent view, and close to ensure privacy during dinner.

Residential area

Balcony window: replaces traditional sliding doors, increases lighting area by 40%, and provides a wider field of vision.

Indoor partition: for example, between the study and the living room, the space is completely connected after folding, enhancing interactivity.

Industrial and public facilities

Warehouse loading and unloading area: wind pressure-resistant design to cope with forklift operation airflow, with electric opening system, efficiency increased by 40%.

Hospital isolation area: air tightness meets medical standards to prevent cross infection.

Customized Waterproof Aluminum Folding Doors Planning suggestions

Size customization

Calculate the number of door leaves according to the size of the opening, and the width of a single leaf is recommended to be ≤1000mm and the height is ≤3000mm to ensure smooth folding.

Reserve space for track installation (upper track height ≥80mm, lower track depth ≥50mm).

Functional requirements matching

High-frequency use scenarios (such as shopping malls): use heavy-duty hinges and wear-resistant pulleys to reduce maintenance costs.

Sound insulation demand scenarios (such as recording studios): configure laminated glass and sealing strips to improve noise reduction effects.

Style and safety

Appearance design: more than 10 colors such as matte black and champagne gold are available, supporting wood grain transfer technology to match the decoration style.

Safety configuration: Optional anti-pinch rubber strips and child locks are available to avoid accidental injuries.

Cost and maintenance

Budget allocation: Aluminum alloy frame accounts for about 40%, glass accounts for 30%, hardware and installation each account for 15%.

Maintenance cycle: Clean the track and lubricate the hinge every six months, and check the aging of the sealing strip every year.
