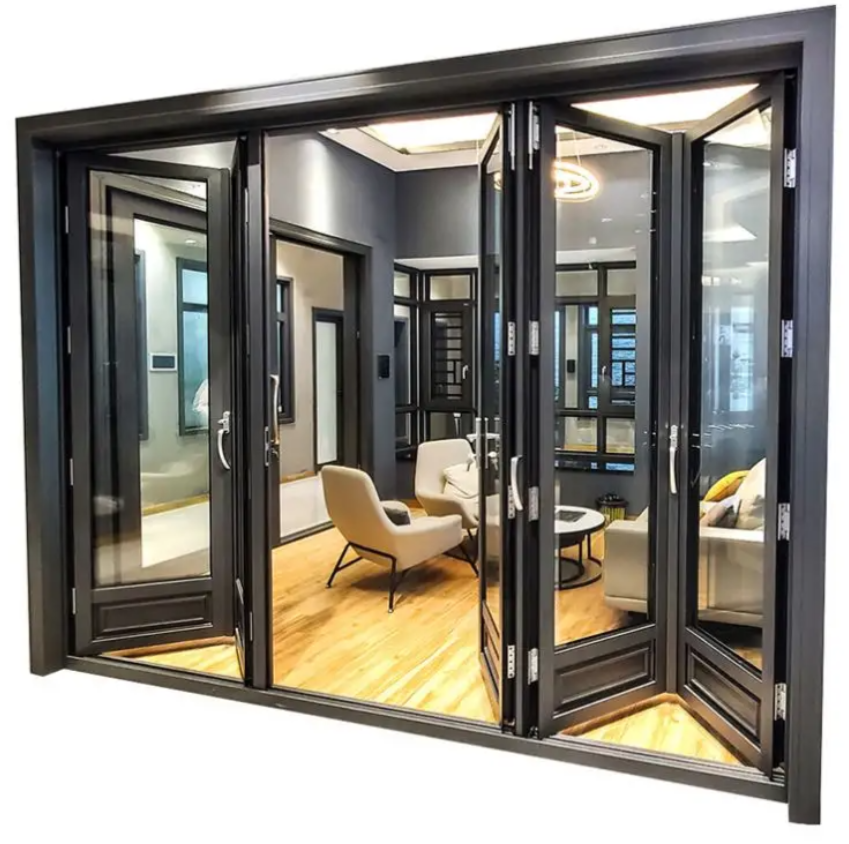

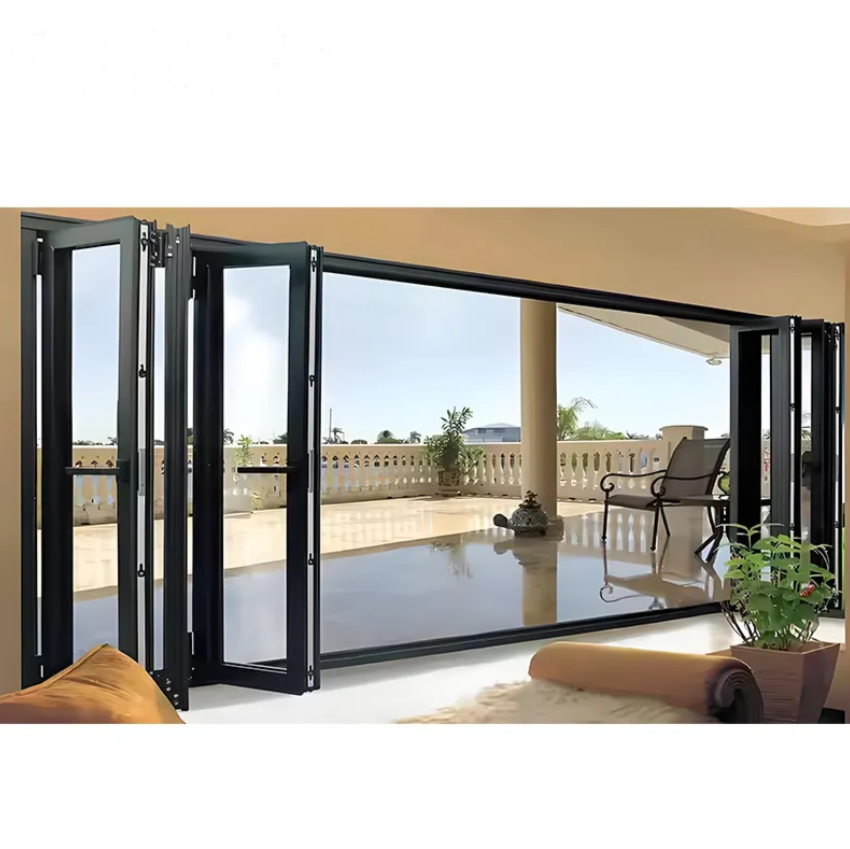

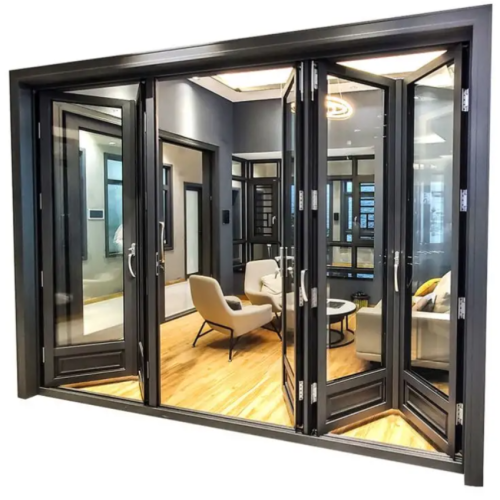

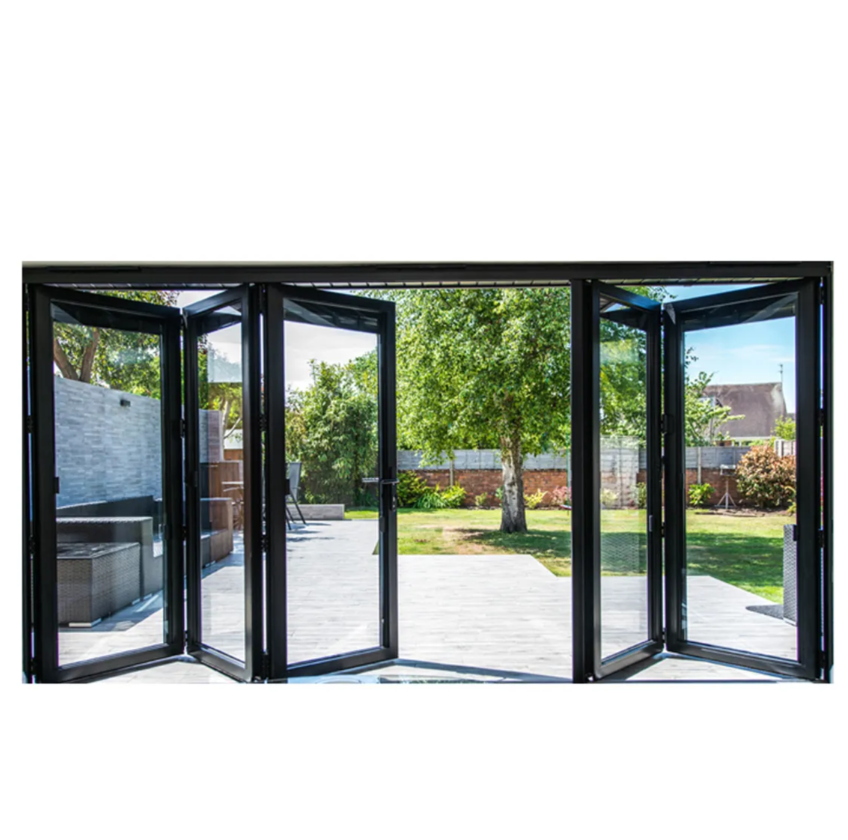

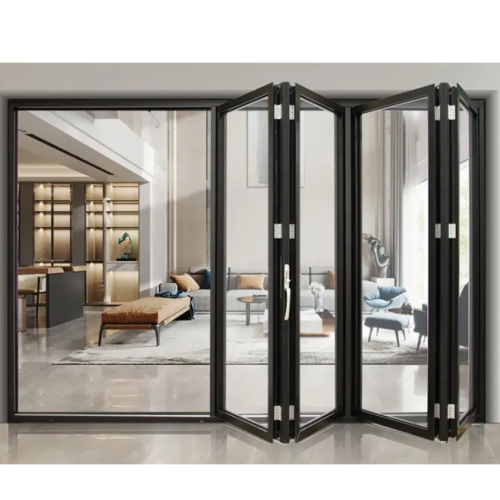

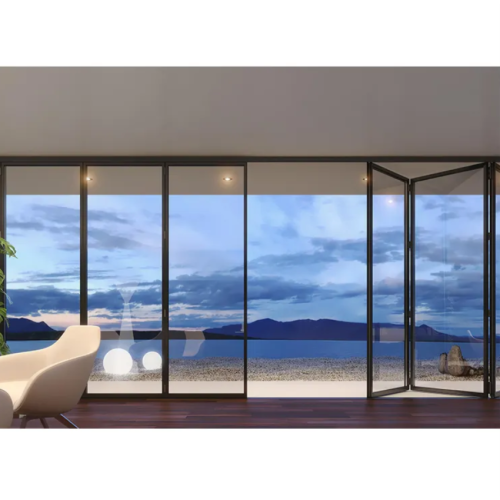

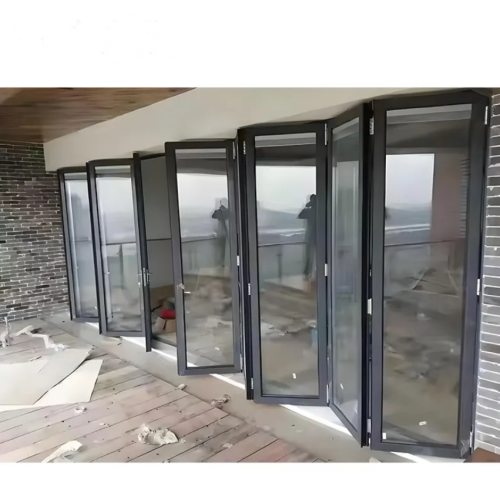

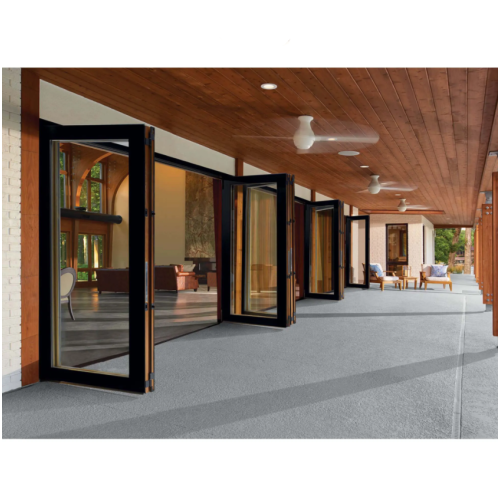

Custom Color Aluminum Folding Doors

$75-150 /Square Meter

Frame material	Aluminum Alloy
option
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-FD027

Brand: Wendou

Warranty Service: More Than 5 Years

After-sales Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection

Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects

Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Supermarket, Warehouse, Workshop, Farmhouse

Design Style: Modern, Traditional, Farmhouse, Industrial, European, Transitional, French, Chinese

Place Of Origin: China

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

Custom Color Aluminum Folding Doors are aluminum alloy folding door systems that offer personalized color customization through surface treatments such as powder coating, fluorocarbon coating, and wood grain transfer printing. Their core value lies in combining aluminum's lightweight and corrosion resistance with decorative features, meeting the comprehensive aesthetic, functional, and durable requirements of architectural spaces.

1. Custom Options: Custom Aluminium Doors

Color Customization:

Powder Coating: Available in over 1,000 RAL standard colors, with a film thickness of 60-120μm and a weather resistance of over 10 years, suitable for both indoor and outdoor use.

PVDF: Utilizing KYNAR 500 resin, with a film thickness of ≥35μm, it is resistant to UV rays and acid rain, and will not fade for 20 years. It is commonly used in high-end commercial buildings.

Wood Grain Transfer Printing: Utilizing 5D high-definition transfer printing technology, these doors simulate natural wood grains (such as oak and walnut) for a realistic feel, satisfying the need for a natural look. Size and Structure Customization:

Supports single-sash widths of 300-1200mm and heights of 2000-3500mm, adapting to various opening sizes.

Customizable folding combinations of 2-10 sashes can achieve an opening ratio of 80%-90%, suitable for large-span applications.

Functional Expansion Options:

Glass Configurations: Available in single-layer tempered glass (5-12mm), insulating glass (5+12A+5mm, insulation coefficient K ≤ 1.8 W/(m²·K)), and laminated glass (PVB film thickness 0.76-1.52mm, impact resistance up to P8B).

Hardware: Available with multi-point locking systems from brands such as CMECH and Kinlong, with a load capacity of ≥150kg per sash and a service life exceeding 150,000 cycles.

Intelligent Integration: Optional features include an electric induction system (opening speed 0.3-0.8m/s), wind and rain sensors, and mobile app remote control.

2. Material Advantages: Synergistic Effect of Aluminum and Coating

Lightweight and High Strength:

The aluminum profile has a density of 2.7g/cm³, only one-third that of steel. However, through its 6063-T6 aluminum alloy base material (tensile strength ≥215MPa, yield strength ≥180MPa) and multi-chamber design, it achieves a balance between lightweight and structural stability.

Corrosion and Weather Resistance:

The oxide film thickness is ≥10μm (national standard requirement), and combined with a fluorocarbon coating, it withstands salt spray tests for ≥5000 hours without corrosion, making it suitable for high salt spray environments along the coast.

The powder coating offers up to 10 years of weather resistance, three times the lifespan of traditional paint, reducing maintenance costs.

Environmental Protection and Recyclability:

The aluminum recycling rate is as high as 95%, and energy consumption is only 5% of virgin aluminum, meeting the requirements of green building certifications such as LEED and BREEAM.

The powder coating is VOC-free and compliant with EU RoHS standards.

3. Data Features of Aluminum Folding Doors

Space Utilization:

When folded, the thickness is only 150-250mm, saving 60% space compared to traditional swing doors. Suitable for small apartments or spaces requiring a large opening.

Air and Watertightness:

Airtightness meets GB/T 7106 standard Level 8 (the highest level), with air leakage ≤ 0.3 m³/(m²·h) at a pressure differential of 10 Pa.

Watertightness reaches Level 6, with the ability to withstand a 300 mm/h downpour (equivalent to a heavy downpour) for two hours without leakage.

Soundproofing:

When combined with insulating glass, the sound insulation reaches 35-40 decibels, reducing traffic noise by 25-30 decibels, meeting residential sleep requirements (≤ 30 decibels).

Thermal Performance:

The thermally insulated aluminum profile + Low-E glass combination achieves a heat transfer coefficient (K) of ≤ 1.6 W/(m²·K), achieving 40% energy savings compared to ordinary Aluminum Doors.

4. Best Aluminium Doors Application Scenarios

High-end Residences:

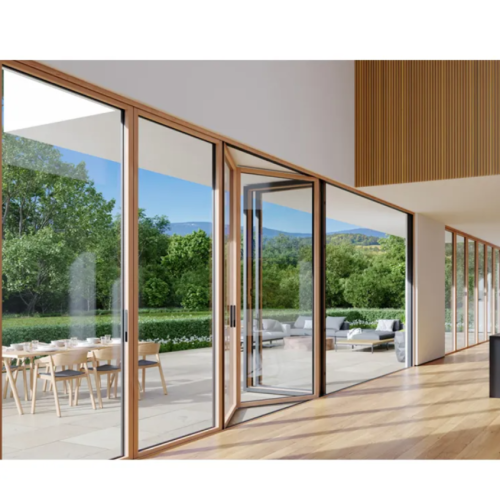

In villas and large apartments, custom wood-grain transfer folding doors complement the interior decor. Available in metallic finishes like champagne and black, they enhance the building's aesthetic appeal.

Commercial Buildings:

Shopping malls, hotels, and other venues utilize electric sensor-activated folding doors, which operate over 10,000 times daily without issue. Combined with large glass areas, they enhance the sense of transparency between indoor and outdoor spaces.

Public Facilities:

Hospitals and schools utilize antibacterial-coated aluminum profiles combined with fire-resistant glass, achieving a fire resistance rating of ≥90 minutes and complying with the GB 50016 fire protection standard.

Extreme Environments:

In coastal typhoon-prone areas (such as Hainan, China, and the Gold Coast, Australia), BAL-40-certified folding doors can withstand 60m/s winds (a force 17 typhoon) for one hour with only 32mm of deformation.

Temporary Buildings:

Container offices and mobile exhibition halls utilize custom colored folding doors, enabling quick installation and flexible space division while providing dust and sound insulation.
