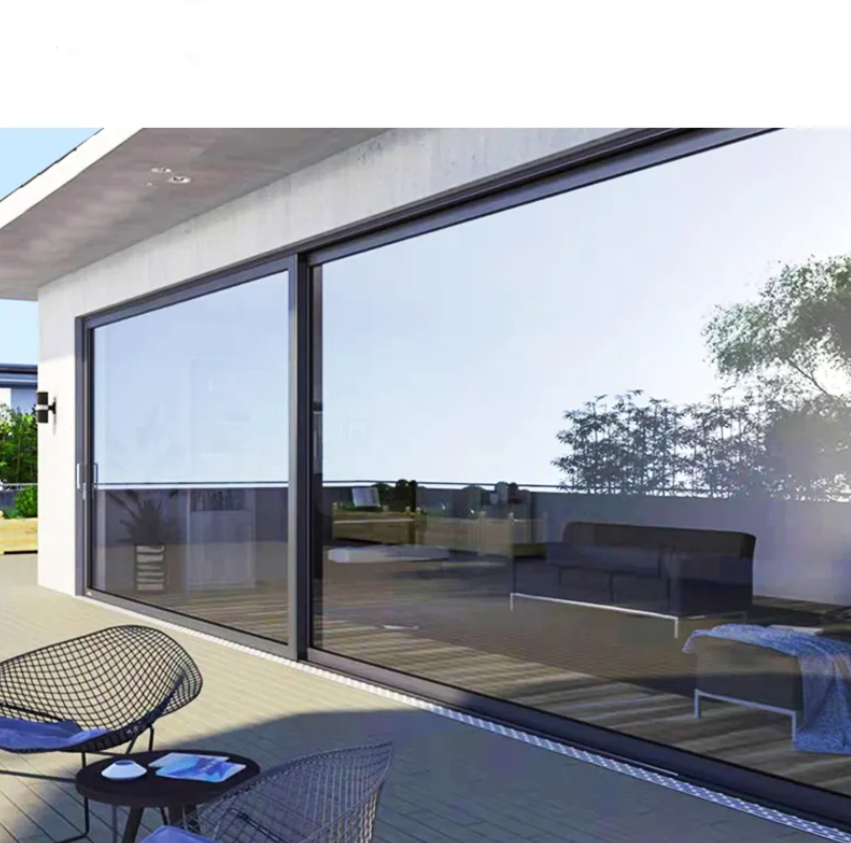

Custom Width Lift Slide Doors

$75-150 /Square Meter

option	Based on customer's needs
Contact Now

Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CIF,CFR,EXW,FAS
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-LSD022

Brand: Wendou

Warranty Service: More Than 5 Years

Open Method: Electric Side Opening, Foldable, Manual, Push And Pull, Sliding

Door Type: Glass

After-sales Service: Onsite Inspection, Onsite Training, Onsite Installation, Online Technical Support

Engineering Solution Capability: Total Solution For Projects, 3d Model Design, Graphic Design

Application Scenario: Hotel, Villa, Hospital, Warehouse, Bathroom, Kitchen

Design Style: Modern, Traditional, Coastal, European, Industrial, French, Chinese

Place Of Origin: China

Variety: Sliding Doors

Door Material: Aluminum Alloy

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CIF,CFR,EXW,FAS

Product Description

Custom Width Lift Slide Doors are a door and window system that utilizes a specialized mechanical structure to enable seamless sliding of oversized glass panels.

1. Core Features of Aluminum Lift And Slide Doors

Extra-Wide Span: Single door panels can reach widths up to 12 feet (approximately 3.66 meters), and the total system width can be expanded to 24 feet (approximately 7.32 meters). Panda brand products, for example, support single panels up to 16 feet (4.88 meters), meeting the needs of full-wall designs in commercial spaces or luxury residences.

Lift-and-Slide Mechanism: Rotating the door handle triggers a hidden mechanism that releases the door panel from its tracks and allows it to slide freely, eliminating the frictional resistance of traditional sliding doors and enabling easy, one-finger operation. For example, Solar Innovations' products reduce sliding friction by 70% when in the lifted position. Dual airtightness and watertightness: The door automatically presses down when closed, and the multi-cavity sealing strips create a three-stage sealing structure, achieving airtightness of EN 12207 Level 4 and watertightness of EN 12208 Level E750, capable of withstanding a Category 12 typhoon.

2. Material Advantages of Aluminum Alloy Frames

Structural Performance:

Best Aluminium Doors utilizes 6063-T5 aluminum alloy profiles with a tensile strength of ≥160 MPa and a yield strength of ≥110 MPa, capable of supporting large glass panels weighing up to 300 kg per sash.

The multi-cavity thermal insulation design (e.g., PA66 + 25% glass fiber insulation strips) reduces the K value to 1.8 W/(m²·K), achieving 40% energy savings compared to ordinary aluminum alloy doors and windows.

Durability:

The surface is anodized to form an oxide film of at least 10μm, which withstands 1000 hours of salt spray testing without corrosion.

The modular design allows for individual component replacement, reducing maintenance costs by 65% compared to steel frames.

Aesthetic Value:

The narrow frame design (minimum visible width of only 55mm) achieves over 90% glass coverage. For example, the frame of Zola's OpenView™ series fixed sashes is completely concealed.

Full customization is available in RAL color schemes, with support for surface treatments such as wood grain transfer printing and fluorocarbon spraying.

3. Custom Aluminium Doors Application Scenarios

High-end Residences:

A seamless connection between the living room and courtyard: The beach villa project utilizes 24-foot-wide, triple-track lift-and-slide doors, seamlessly integrating indoor and outdoor spaces.

Optimizing Basement Lighting: Low-emissivity coated glass achieves 82% light transmittance while blocking 99% of UV rays.

Commercial Buildings:

Restaurant Outdoor Dining Area: A Michelin-starred restaurant uses a 12-foot-wide, double-sash system, which operates flawlessly despite over 200 openings and closings per day.

Hotel Banquet Hall Partitions: A five-star hotel utilizes electric lift-and-slide doors, coupled with an intelligent sensor system, enabling the conversion of up to 80 square meters of space in just 15 seconds.

Public Facilities:

Museum Natural Lighting Roof: The Museum of Modern Art uses a curved lift-and-slide door system, with a single leaf load capacity of up to 1.2 tons and an opening angle of 120°.

Stadium Entrances: The Beijing Winter Olympics venues utilize impact-resistant products, tested according to EN 1077 standards and capable of withstanding a 200kg impact without damage.

4. Core Purchasing Group

High-end Developers:

Demand Characteristics: They pursue differentiated project competitiveness and are willing to pay a 0.5%-1% increase in construction costs for a product premium of over 20%.

Luxury residential projects utilize lift-and-slide door systems throughout their portfolio, driving property value appreciation.

Commercial Space Operators:

Demand Characteristics: They prioritize space utilization and operational efficiency, requiring a product lifespan of 15 years or longer with low annual maintenance costs.

Private Owners:

Demand Characteristics: They have a strong desire for customization, with 65% of clients requesting non-standard sizes (width > 4 meters or height > 3 meters). Decision Factors: Intelligent control systems (such as mobile app remote control) and security features (multi-point locking systems) are key considerations.

5. Industry Data

Market Growth: The global lift-and-sliding door market has a compound annual growth rate of 12.7%, with aluminum alloy frame products accounting for over 78%.

Cost Structure: Aluminum alloy profiles account for 35% of the manufacturing cost, glass 40%, hardware systems 15%, and the remainder is processing and installation costs.

Energy Efficiency Improvement: Buildings equipped with lift-and-sliding doors consume 22% less energy for heating in winter and 18% less energy for cooling in summer compared to traditional buildings.
