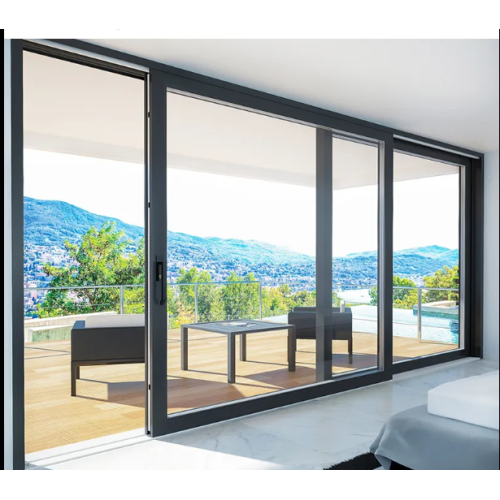

Soft Close Aluminum External Customized Sliding Door

Soft Close Aluminum External Customized Sliding Door

$75-150 /Square Meter

Contact Now

Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-LSD026

Brand: Wendou

Warranty Service: More Than 5 Years

Place Of Origin: China

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CFR,CIF,EXW

Product Description

Soft Close Aluminum External Customized Sliding Door

1. Core Function

The soft-close aluminum external customized sliding door is a sliding door system specifically designed for modern architecture. Its core function lies in the combination of an aluminum frame and soft-close technology, achieving smooth and silent opening and closing of the door panels, while simultaneously meeting the comprehensive needs of buildings for aesthetics, durability, and energy efficiency. These doors are typically used to connect indoor and outdoor spaces (such as balconies, courtyards, or patios), and are customized to suit different architectural styles. They also integrate features such as wind resistance, water resistance, and sound insulation to enhance living comfort.

2. Structural Features

Modular Track System:

The Aluminum Sliding Doors use high-precision aluminum alloy tracks (2.0-3.0mm thick) with built-in silent roller assemblies (such as nylon or polyoxymethylene material), ensuring smooth sliding with minimal resistance and no wobbling. The track surface is anodized, increasing wear resistance by more than 50% and extending its service life.

Soft-Close Damping Device:

The door panel is equipped with a hydraulic or spring buffer at the closing end, which slows down the closing speed (closing time adjustable to 2-5 seconds), preventing direct collision between the door panel and the door frame, reducing noise (noise reduction of 20-25dB), and protecting hardware from impact damage.

Hidden Drainage Design:

The bottom of the Aluminum Doors frame features hidden drainage holes (5-8mm in diameter), combined with an inclined drainage channel, to quickly drain rainwater and prevent water from seeping into the interior, especially suitable for rainy areas.

Sealing Structure:

The door panel and door frame use EPDM (ethylene propylene diene monomer) rubber sealing strips, with a compression deformation of 25%-30%, forming multiple sealing barriers to effectively block wind, rain, dust, and noise.

3. Material Advantages

High Strength and Lightweight:

The aluminum frame uses 6063-T5 aluminum alloy (tensile strength ≥160MPa), weighing only 1/3 of steel, but with comparable strength, making it easy to install and transport, while reducing the load on the building structure. Corrosion Resistance:

The surface is treated with anodizing (film thickness 10-15μm) or powder coating (film thickness 60-100μm), achieving AAMA 2604 standard for salt spray corrosion resistance, suitable for coastal or chemical environments, with a service life of over 20 years.

Environmentally Friendly and Energy-Saving:

Can be paired with Low-E double-glazed glass (such as 5+12A+5 structure), achieving a whole-window K-value as low as 1.8-2.2W/(m²·K), saving more than 30% energy compared to ordinary doors and windows, and meeting green building standards.

4. Applicable Building Types

High-End Residences:

Villas, large apartments, and other projects utilize its large-size transparent design (single leaf width up to 3 meters, height 2.5 meters) to create seamless indoor and outdoor spaces and enhance the viewing experience.

Commercial Buildings:

Hotels, clubs, and other venues use its soft-closing function to achieve silent operation, avoiding noise disturbance from door opening and closing, while enhancing the building's aesthetics through customized designs (such as curved and corner doors).

Public Facilities:

Buildings requiring a quiet environment, such as hospitals and schools, reduce noise pollution through soft-closing technology, creating a comfortable atmosphere.

5. Customization Options

Size and Shape:

Custom Aluminium Doors support non-standard size customization (minimum width 600mm, maximum height 3000mm), and can be made into curved, trapezoidal, or irregularly shaped door leaves to adapt to complex building facades.

Surface Treatment:

Provides more than 20 surface effects, including wood grain transfer printing (such as walnut and oak grain), metal brushing (champagne gold, titanium gray), and imitation stone textures, to match different decoration styles.

Glass Configuration:

Optional single/double silver Low-E glass, laminated safety glass, or smart dimmable glass to achieve privacy protection, UV filtering, and energy-saving dimming functions.

Hardware Accessories:

Provides hardware from brands such as German ROTO, SIEGENIA, or domestic Jianlang, supporting multi-point locking, anti-pry alarm, and child safety locks to enhance safety and convenience.

Smart Integration:

Can be equipped with rain and wind sensors, fingerprint locks, or integrated with smart home platforms to achieve automatic opening and closing, remote control, and safety warnings.
