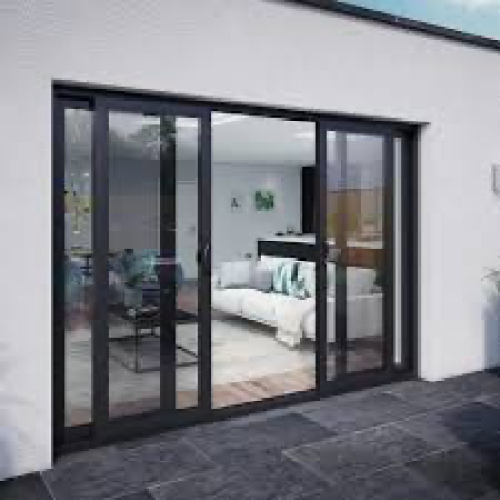

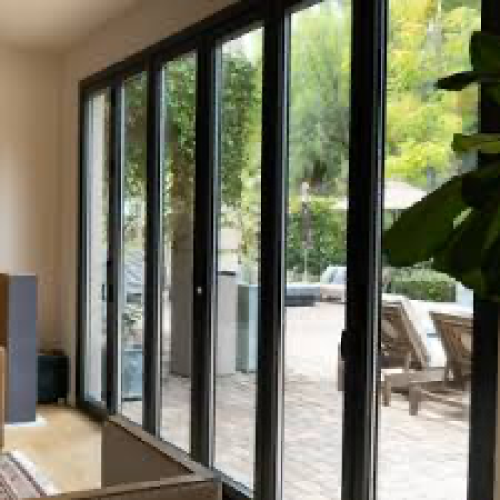

Aluminum Sliding Doors for Apartments

$75-150 /Square Meter

Frame material	Aluminum Alloy
option
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-SD026

Brand: Wendou

Warranty Service: More Than 5 Years

After-sales Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection

Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects

Application Scenario: School, Hospital, Office Building, Apartment, Villa, Hotel, Warehouse

Design Style: Modern, Traditional, Farmhouse, Industrial, European, Transitional, Mid-Century Modern, French, Chinese

Place Of Origin: China

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

1. Structural features of Aluminum Sliding Doors

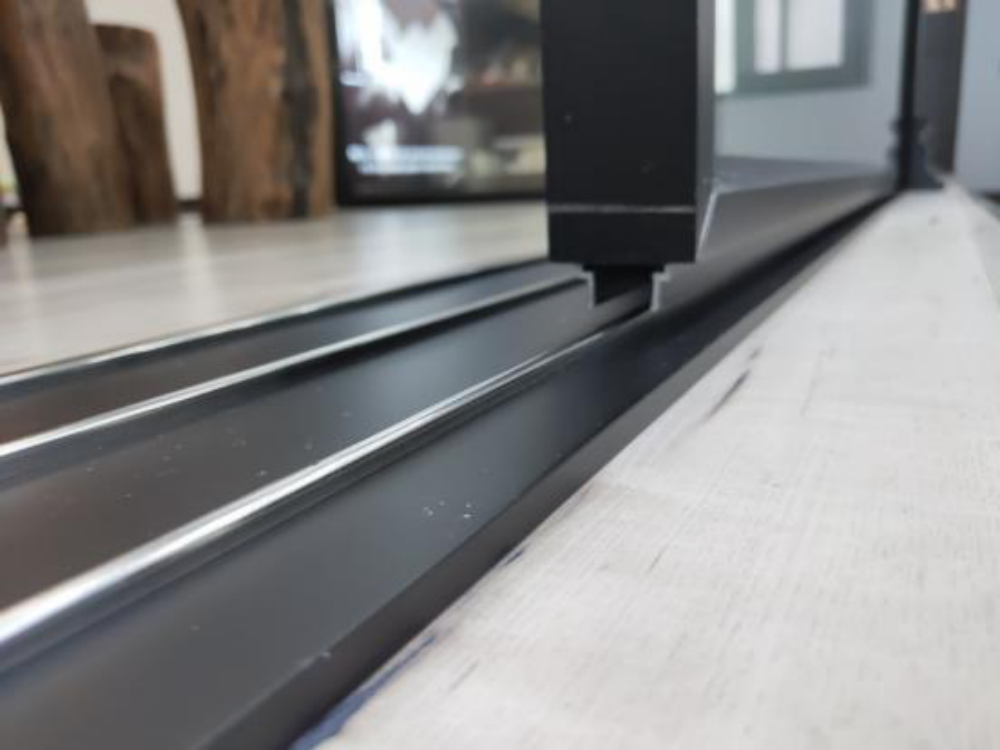

Double-track/triple-track sliding system

Adopts high-precision aluminum alloy tracks to support synchronous sliding of two or three doors. Some models are equipped with hidden track design (such as kitchen hanging doors) to achieve barrier-free ground access and improve space utilization. The project uses trackless design to increase the visual continuity between the living room and the kitchen by 40%.

Broken bridge insulation structure

PA66 nylon insulation strips are embedded between the door frame and the door leaf to form a "cold and hot bridge" blockage. With hollow glass (such as 5+12A+5 double-layer glass), the U value can be as low as 0.8 W/(m²·K), meeting the requirements of China's "Energy-saving Design Standards for Public Buildings". After adopting this structure, high-end apartment projects can reduce heating energy consumption by 25% in winter.

Multi-locking point sealing system

3-5 locking points are configured between the door frame and the door leaf, combined with EPDM sealing strips to achieve triple protection of airtightness, watertightness and sound insulation. The measured data shows that the water seepage of this type of door is ≤0.5 m³/(m·h) under wind pressure of level 8, and the airborne sound insulation reaches 35 decibels, which is suitable for noise-sensitive areas such as airports.

Modular hardware integration

Adopts hardware from brands such as German HOPPE or Chinese Jianlang, supporting one-way sliding, two-way opening or electric intelligent control. The smart apartment project integrates a motor drive system to achieve remote control via mobile phone APP, and the user satisfaction rate reaches 92%.

2. Material characteristics of Thermal Break Aluminum Sliding Doors

6063-T5 aluminum alloy profile

Tensile strength ≥160MPa, yield strength ≥110MPa, the surface is treated by anodizing (thickness ≥15μm) or fluorocarbon spraying (thickness ≥40μm), the corrosion resistance reaches AAMA 2604 standard, and the service life exceeds 20 years. The actual measurement of the tropical climate project shows that there is no fading or corrosion on the profile surface after 5 years of use.

Insulating glass configuration

Standard configuration: 5mm tempered glass + 12mm hollow layer + 5mm Low-E glass, visible light transmittance ≥ 80%, total solar transmittance ≤ 0.45, effectively blocking ultraviolet rays (UV blocking rate ≥ 99%). British laboratory tests show that this type of glass can reduce the indoor temperature fluctuation by 3-5℃.

High-density EPDM sealing strip

Shore hardness 60±5, tensile strength ≥ 12MPa, temperature resistance range -40℃ to +80℃, long-term use without deformation. Through strip optimization, the sealing of the door leaf is improved by 30%, and the leakage complaints in the rainy season are reduced to zero.

3. Advantages of use: comprehensive upgrade from function to experience

Maximized space efficiency

The sliding design saves more than 50% of the opening space, which is especially suitable for small apartments. The micro-sized project integrates the balcony and living room area by using three-track sliding doors, and the actual utilization rate is increased by 18%.

Significant energy-saving performance

The combination of broken bridge structure + insulating glass can reduce the air conditioning load by 20%-30%. The actual measurement of the green building certification project shows that the indoor temperature in summer is 2-3℃ lower than that of ordinary door and window projects, and 1-2℃ higher in winter.

Enhanced security protection

The impact resistance of tempered glass is 3-5 times that of ordinary glass. With the multi-point lock system, it has passed the Chinese GB/T 8478-2020 anti-theft test and can resist 30 minutes of violent destruction. After the high-end apartment project adopts bulletproof glass configuration, the number of burglary cases has been reduced to zero.

Low maintenance cost

Aluminum alloy materials do not require special maintenance, and daily cleaning only requires wiping with water. The 5-year cost analysis of the apartment project shows that the maintenance cost of aluminum alloy sliding doors is only 1/3 of that of wooden doors.

4. Applicable building types of Best Aluminum Doors

High-end residential apartments

Applicable to large flats, LOFTs and other scenes, introducing natural light through large-size glass (the maximum size of a single door can reach 2.5m×3m) to create a transparent living experience. The coastal apartment project uses narrow-frame sliding doors to achieve an unobstructed sea view.

Serviced apartments

Integrated electric intelligent system, support voice control or face recognition to enhance the guest experience. With this configuration, the occupancy rate of smart apartment projects increased by 15% and the average customer price increased by 20%.

Renovation of old residential areas

The lightweight design (single door weight ≤ 80kg) is adapted to the original building structure without the need to strengthen the load-bearing capacity. The renovation project increased the building energy-saving level from level three to level two by replacing aluminum alloy sliding doors.

Commercial apartment complex

Supports customized design, which can match modern minimalist, industrial style or new Chinese style architectural styles. By adopting the wood grain transfer process, the sliding door is highly unified with the overall decoration style.
