Category: Aluminum Sliding Windows Products> Aluminum Windows> Aluminum Sliding Windows> Quick install retrofit sliding windowsPRODUCTSHot ProductsSend InquiryProducts

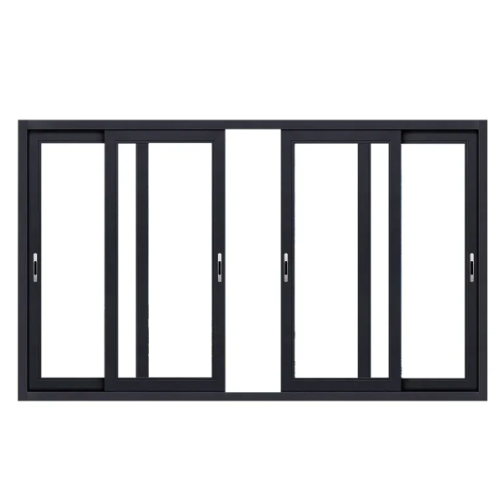

Quick install retrofit sliding windows
$75-150 /Piece/Pieces
Variety option Contact Now Share:
- Payment Type: L/C,T/T
- Incoterm: FOB,CFR,CIF,EXW
- Min. Order: 1 Piece/Pieces
- Transportation: Ocean
- Port: shenzhen
DescriptionProduct AttributesModel No.: WD-SW030
Brand: Wendou
Origin: Made in China
Certification: NFRC/CE/AS2047
Warranty Service: More Than 5 Years
After-sales Service: Free Spare Parts, Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection
Application Scenario: School, Hospital, Office Building, Apartment, Villa, Hotel, Supermarket, Bathroom, Living Room, Bedroom, Dining
Design Style: Modern, Traditional, Contemporary, Chinese, French
Place Of Origin: China
Border Material: Aluminum Alloy
Switch Way: Sliding
Packaging & DeliverySelling Units: Piece/Pieces Package Type: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate Picture Example:
Supply Ability & Additional InformationPackaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Productivity: 150000㎡/year
Transportation: Ocean
Place of Origin: Made in China
Supply Ability: 10000㎡/ per month
Certificate: NFRC/CE/AS2047
HS Code: 7610100000
Port: shenzhen
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Aluminum alloy doors and windows00:09Product DescriptionThe quick-install retrofit sliding window is a window designed for easy retrofitting of existing building openings, combining energy saving, durability and user-friendly installation experience.Main features and technical parameters of Aluminum Alloy WindowsEnergy savingTriple glazing with low-emissivity coating (visible light transmittance ≥ 75%, U value ≤ 1.0 W/m²·K) effectively reduces heat transfer.Argon filling (concentration ≥ 90%) enhances thermal insulation.Multi-chamber PVC or aluminum alloy frame (thermal conductivity ≤ 2.0 W/m·K) minimizes thermal bridges.Weather resistanceWaterproof performance up to 600 Pa (level 5, GB/T 7106-2019) and airtightness ≤ 0.8 m³/m·h (level 7) ensures wind and rain protection.Silicone sealing strips remain flexible at temperatures from -40°C to +60°C.Quick installationModular design, using prefabricated components, each window can be assembled in just 30-60 minutes.Lightweight frames (15-25 kg/m²) reduce installation labor by 40% compared to traditional windows.Adjustable mounting brackets accommodate ±20 mm wall thickness variations.
Application scenarios for Custom Aluminum WindowsResidential renovationIdeal for upgrading old single-glazed windows in apartments or houses, thereby improving energy efficiency by 30-50%.Apartment buildings reduced heating costs by 35% after installing retrofitted sliding windows.Commercial buildingsFor office renovations to meet green building standards (e.g. LEED, BREEAM).Sound insulation of up to 45 dB (Rw) reduces noise pollution in urban areas.Historic preservationNarrow frame profiles (50-70 mm) preserve the original architectural beauty while improving performance.19th century townhouses retain their facades while upgrading to modern energy standards.
Customization options for Aluminum WindowsDimensionsStandard sizes range from 600x600 mm to 2400x3000 mm, with custom sizes up to 3000x4000 mm.Corner solutions (90° or 135°) can be installed in non-rectangular openings.GlassOptional safety glass (laminated or tempered) for added security.Solar control coating reduces solar heat gain by up to 60%.Hardware and FinishesSecurity with anti-pry and multi-point locking.Frame colors: RAL color cards (over 200 choices) or wood grain foil for aesthetic customization.Optional electric operation for easy operation (opening force ≤30 N).VentilationTilt-slide or parallel opening for controlled airflow.Integrated insect screen (retractable or fixed) with mesh size down to 0.8 mm.The file is encrypted. Please fill in the following information to continue accessing it
