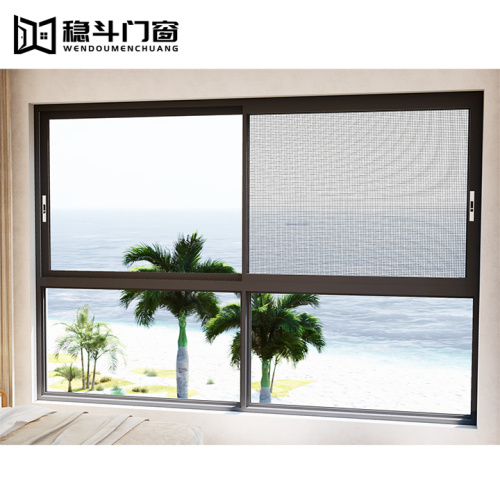

Rust-proof coastal sliding windows

$75-150 /Piece/Pieces

Variety	Sliding Windows
option
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Piece/Pieces
Transportation: Ocean
Port: shenzhen

Description

Product Attributes

Model No.: WD-SW032

Brand: Wendou

Warranty Service: More Than 5 Years

After-sales Service: Online Technical Support, Free Spare Parts, Onsite Installation, Onsite Training, Onsite Inspection

Application Scenario: Hospital, Hotel, Villa, Office Building, School, Supermarket, Bathroom, Living Room, Bedroom, Dining

Design Style: Modern, Traditional, Contemporary, Chinese, French

Place Of Origin: China

Border Material: Aluminum Alloy

Switch Way: Sliding

Material: Aluminum Alloy

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/ per month

Certificate: NFRC/CE/AS2047

HS Code: 7610100000

Port: shenzhen

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

Core features and data of Aluminum Windows

Excellent anti-rust performance

Using 316L stainless steel (2-3% molybdenum content) or 6063-T6 aluminum alloy (surface fluorocarbon spray thickness ≥40μm), the salt spray test corrosion resistance time is ≥2000 hours, far exceeding the 1000 hours of ordinary 304 stainless steel.

Fasteners use A4-80 grade stainless steel (tensile strength ≥800 MPa) to prevent loosening caused by seawater erosion.

Efficient drainage and sealing

The bottom of the window frame is designed with a double-layer drainage channel, the drainage slope is ≥5°, and the drainage efficiency is 20 L/min (no water accumulation under 50 mm/h rainfall intensity).

The compression deformation rate of EPDM sealing strip is ≤20%, and it is matched with silicone sealant, with air tightness of 8 levels (≤0.5 m³/m·h) and water tightness of 6 levels (≥700 Pa).

Wind pressure resistance and structural strength

The window frame wall thickness is ≥2.5 mm, and the wind pressure resistance performance reaches level 9 (GB/T 7106-2019). It can withstand wind pressure ≥5.0 kPa and is suitable for 12-level typhoon areas.

The hollow glass is filled with argon gas (concentration ≥90%), with Low-E coating, the heat transfer coefficient U value ≤1.4 W/m²·K, and the thermal insulation performance is improved by 40%.

Application scenarios of Custom Aluminum Windows

Coastal residences and villas

Sea view villas use this type of windows. There is no water seepage indoors during typhoons, no rust on the window frame surface, and maintenance costs are reduced by 70%.

Function: Anti-ultraviolet coating (weather resistance ≥15 years) to prevent glass yellowing and sealant aging.

Seaside hotels and resorts

Applicable scenarios: large-area glass curtain walls such as lobbies, restaurants, and guest rooms.

Advantages: Silent slide rail design (opening force ≤30 N), combined with hollow glass sound insulation performance (Rw≥40 dB), to improve guest comfort.

Port and marine engineering

Configuration: thickened window frame (wall thickness ≥3.0 mm), with explosion-proof glass (thickness ≥12 mm), to meet the high safety requirements of ships, lighthouses, etc.

Sealing: dustproof level up to IP65, prevent salt spray and dust intrusion.

Saltwater resistant sliding window system

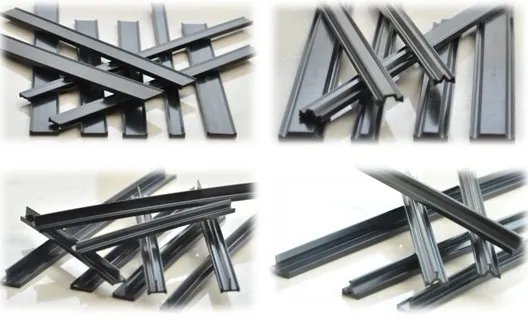

Advantages of different materials of Aluminum Alloy Windows

316L stainless steel

Corrosion resistance: in a chlorine-containing environment, the pitting potential is 300 mV higher than that of 304 stainless steel, suitable for high salt spray areas.

Strength: yield strength ≥205 MPa, tensile strength ≥520 MPa, to ensure that the window frame does not deform.

6063-T6 aluminum alloy

Lightweight: density 2.7 g/cm³, only 1/3 of steel, easy to install and transport.

Surface treatment: fluorocarbon spraying (PVDF resin content ≥70%), weather resistance is 3 times higher than ordinary powder spraying.

Composite material reinforcement

The window frame is filled with polyurethane insulation material (density ≥ 40 kg/m³), with a thermal conductivity of ≤ 0.024 W/m·K, to reduce condensation.

Glass configuration: optional laminated insulating glass (6+1.14PVB+6+12A+6), with impact resistance increased by 5 times, suitable for hurricane-prone areas.

Dongguan Wendou has more than 15 years of experience, with professional designers, independent R&D team, professional sales and technical team, can provide you with one-stop service, professional design solutions and comprehensive technical support. Strict quality control system and safe packaging design, so you don't have to worry about product quality and transportation safety.
