Double Glazed Narrow Edge Aluminum Windows

Double Glazed Narrow Edge Aluminum Windows

$75-150 /Square Meter

Variety	Sliding Windows
Contact Now

Payment Type: L/C,T/T,Paypal
Incoterm: CIF,CFR,FOB
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-SW036

Brand: Wendou

Warranty Service: More Than 5 Years

After-sales Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts

Application Scenario: Hotel, Villa, Office Building, School, Apartment

Place Of Origin: China

Border Material: Aluminum Alloy

Switch Way: Sliding

Material: Aluminum Alloy

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T,Paypal

Incoterm: CIF,CFR,FOB

Product Description

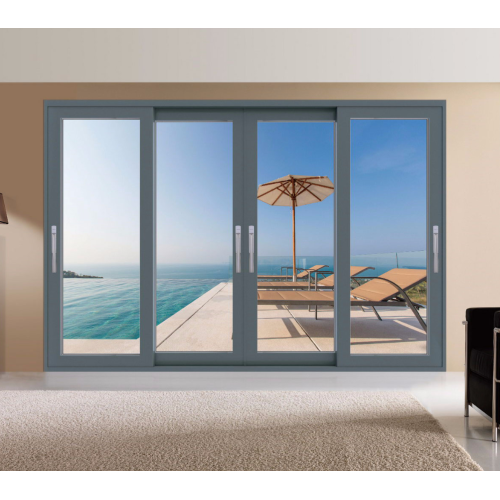

Double Glazed Narrow Edge Aluminum Windows

I. Appearance Features

Minimalist Linear Design: Window frame widths are typically controlled between 30-50mm. Paired with double-glazed glass, they create a "narrow edge + transparent" visual effect, minimizing the presence of the frame and enhancing the sense of spaciousness.

Unobstructed View: Glass accounts for up to 80%-90% of the total window area, making them particularly suitable for floor-to-ceiling windows and picture windows, reducing visual obstruction and improving indoor lighting uniformity.

Color and Finish: Available in matte or high-gloss finishes such as matte black, pearl white, and champagne gold. Some brands offer wood grain transfers (such as oak and walnut), perfect for modern, industrial, or natural-style architecture.

II. Material and Structural Advantages

Aluminum Alloy Profiles

Strength and Durability: Aluminum Windows utilize 6063-T5 aircraft-grade aluminum alloy, boasting a tensile strength of ≥160MPa and corrosion resistance that meets AAMA 2603 standards (salt spray test ≥500 hours), resulting in a service life exceeding 20 years. Thermal Insulation: Built-in polyamide (PA66 + GF25) insulation strips create a "broken bridge" structure, reducing thermal conductivity to 1.8-2.5 W/(m²·K), resulting in 40%-50% energy savings compared to traditional aluminum windows.

Double-Glazed System

Thermal Break Aluminum Sliding Windows standardly feature 5mm glass + 12mm argon barrier + 5mm glass (K value ≤ 2.0 W/(m²·K)). Options include triple-glazed, double-chambered glass (5mm + 12A + 5mm + 12A + 5mm, K value ≤ 1.2 W/(m²·K)) or Low-E coated glass (transmittance ≥ 70%, shading coefficient ≤ 0.5), further improving the balance between thermal insulation and light transmission.

Sealing: Utilizing a dual-pass seal using butyl rubber and silicone structural adhesive, the system achieves an argon leakage rate of ≤ 1%/year and a water vapor permeability of ≤ 0.5g/m²·year, effectively preventing condensation and mildew on the glass.

Hardware System

Concealed Hinges: Support 180° seamless opening and bear up to 80kg, meeting the needs of large window sashes.

Multi-Point Locking: Standard with 3-5 locking points and a mushroom-head lock cylinder, it achieves RC2 (European standard) pry resistance, increasing the security rating by 30%.

III. Applicable Building Scenarios

Residential Sector

High-Rise Apartments: Narrow side panels reduce wind resistance and achieve wind pressure resistance of Class 9, making it suitable for coastal areas or areas with strong winds.

Villas and Low-Density Residences: Customizable curved, corner, and other shaped windows are available. Custom Aluminum Windows, combined with a power opening system (e.g., mobile app control), enhance the intelligent experience.

Commercial Buildings

Office Buildings: Double-glazed windows achieve a sound insulation rating of 35-40dB (RW value), meeting the acoustic requirements of open office spaces.

Hotels and Clubs: Supports extra-large glass panels (up to 3m x 2.5m per panel) and can be paired with motorized sunshades or dimming glass for dynamic adjustment of privacy and daylighting.

Public Facilities

Schools and Hospitals: Sharp-angle design with explosion-proof glass (optional 6mm + 1.52mm PVB + 6mm laminated structure) to meet safety regulations.

Museums and Exhibition Halls: Low-reflective glass (reflectivity ≤ 8%) reduces light pollution and protects exhibits from UV damage (UV blocking rate ≥ 99%).

IV. Customization Options

Size and Shape

Non-standard sizes are available (minimum 300mm × 300mm, maximum 6m × 3m). Accurate measurements (error ≤ 2mm) are required.

Special-shaped windows (such as round, trapezoidal, and polygonal) are available at an additional cost, and production will be extended by 5-7 days.

Glass Upgrades

Energy-saving: Low-E glass (light transmittance 70%-85%), argon-filled insulating glass (insulated glass with 10% increased thermal insulation).

Safety: Fire-resistant glass (fire resistance ≥ 60 minutes), bullet-proof glass (compliant with GA165 standards). Intelligent: Electrochromic glass (transmittance adjustable from 10% to 80%), self-cleaning glass (surface coating decomposes organic matter).

Color and Surface Treatment

Aluminum: Powder coating (over 200 color palettes available), wood grain transfer printing (simulation ≥ 95%), electrophoretic coating (smooth and corrosion-resistant surface).

Glass: Changhong glass (light-transmitting but not shadow-transmitting), wired glass (combining safety and aesthetics), and color-coated glass (reflectivity 10%-40%).

Opening Methods: Casement windows (inward/outward opening), top-hung windows, sliding windows, and folding windows. Manual or electric operation is supported (requires a power source or solar power).
