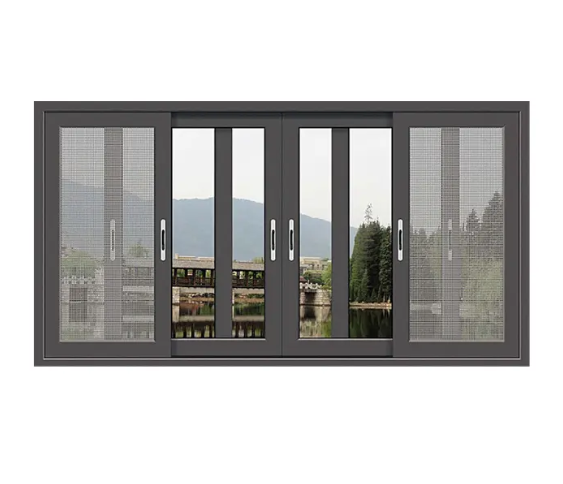

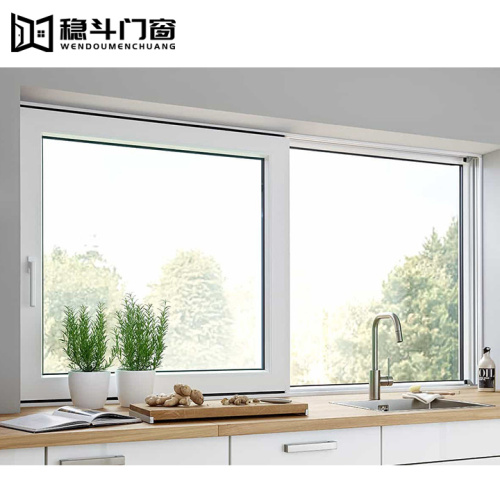

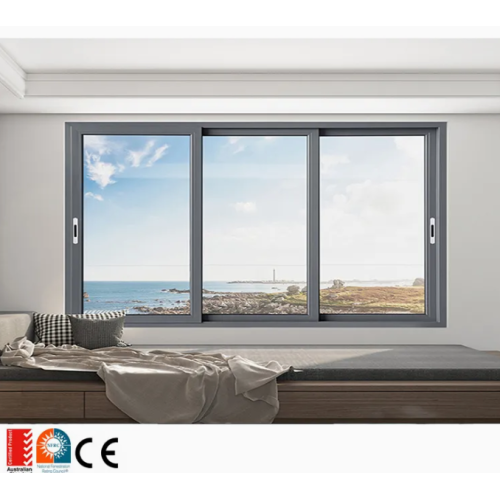

Quick Drainage Watertight Sliding Windows
$75-150 /Square Meter
Variety option Contact Now - Payment Type: L/C,T/T
- Incoterm: FOB,CFR,CIF,EXW
- Min. Order: 1 Square Meter
- Transportation: Ocean
- Port: shenzhen
DescriptionProduct AttributesModel No.: WD-SW031
Brand: Wendou
Warranty Service: More Than 5 Years
After-sales Service: Free Spare Parts, Online Technical Support, Onsite Installation
Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Supermarket, Bathroom, Living Room, Bedroom, Dining
Design Style: Modern, Traditional, Contemporary, Chinese, French
Place Of Origin: China
Border Material: Aluminum Alloy
Switch Way: Sliding
Material: Aluminum Alloy
Packaging & DeliverySelling Units: Square Meter Package Type: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate Picture Example:
Supply Ability & Additional InformationPackaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Productivity: 150000㎡/year
Transportation: Ocean
Place of Origin: Made in China
Supply Ability: 10000㎡/ per month
Certificate: NFRC/CE/AS2047
HS Code: 7610100000
Port: shenzhen
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Product DescriptionQuick Drainage Watertight Sliding WindowsCore Features and Data SupportEfficient Drainage SystemThe bottom of the window frame is designed with a hidden drainage groove, with a drainage slope of ≥3°, and at least 2 drainage holes (diameter ≥8mm) per meter of window frame to ensure that the drainage volume is ≥15 L/min during heavy rain.Experimental data: Under the simulated rainfall intensity of 50 mm/h, the depth of water accumulation on the windowsill is ≤2 mm, which is much lower than the 15 mm of traditional windows.
Waterproof sealing technology of Aluminum WindowsEPDM sealing strip, compression deformation rate ≤25%, weather resistance of 20 years, ensuring that the gap between the window frame and the glass is ≤0.5 mm.The edge of the insulating glass is filled with polysulfide sealant, with a peel strength of ≥8 N/mm to prevent rainwater from seeping in.Structural strengthThe window frame is made of 6063-T5 aluminum alloy, with a wall thickness of ≥1.8 mm, a bending strength of ≥200 MPa, and a wind pressure resistance of 8 levels (GB/T 7106-2019), which can withstand a wind pressure of ≥4.0 kPa.
Application scenarios of Aluminum Sliding Glass WindowsResidential buildings in coastal and rainy areasCase: A sea view apartment in Sanya, Hainan uses this type of window. The indoor water seepage rate is 0 during typhoons, which reduces the maintenance cost by 90% compared with traditional windows.Function: Anti-salt spray corrosion, the window frame surface coating is resistant to neutral salt spray test for ≥1000 hours.Commercial buildingsApplicable scenarios: large-area glass curtain wall renovation such as shopping centers and office buildings.Advantages: Drainage efficiency is increased by 50%, reducing the risk of curtain wall damage caused by water accumulation.Industrial plantConfiguration: Thickened window frame (wall thickness ≥2.5 mm), with explosion-proof glass (thickness ≥10 mm), to meet the safety needs of chemical, metallurgical and other industries.Sealing: Airtightness reaches level 8 (≤0.5 m³/m·h), preventing dust and harmful gas leakage.
Customization options for Aluminum Alloy WindowsSize and shapeStandard size: width 600-3000 mm, height 800-2400 mm; support special-shaped customization (such as arc, trapezoid), the maximum arc radius can reach 5000 mm.Glass configurationSingle-layer tempered glass (thickness 6-12 mm), insulating glass (5+12A+5 to 10+20A+10), laminated glass (6.38-21.52 mm) are optional.Special functions: Low-E coating (heat transfer coefficient U value ≤1.8 W/m²·K), self-cleaning coating (rain contact angle ≥110°).Color and surface treatmentWindow frame color: RAL color card 200+ colors are available, or wood grain transfer (such as walnut, oak texture).Surface treatment: anodizing (thickness ≥ 15 μm), powder coating (thickness ≥ 60 μm), fluorocarbon coating (thickness ≥ 40 μm).Intelligent integrationSafety devices: anti-pinch sensor, child lock, emergency escape handle.The file is encrypted. Please fill in the following information to continue accessing it
