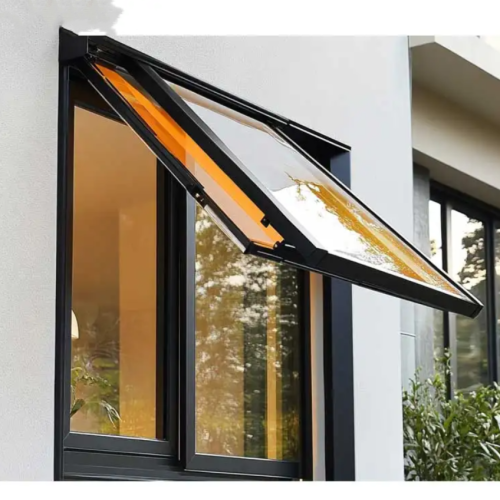

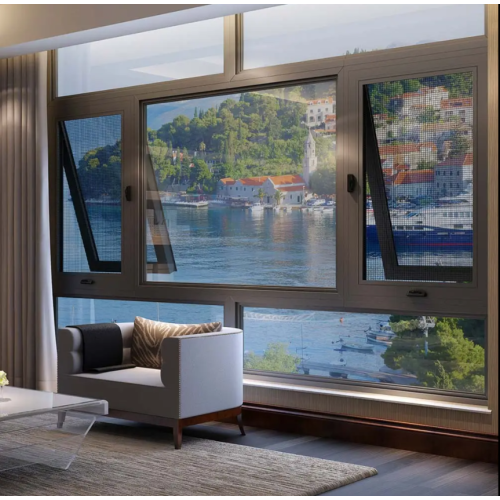

Thermally Broken Energy Saving Awning Windows
$75-150 /Square Meter
option Contact Now - Payment Type: L/C,T/T
- Incoterm: FOB,CFR,CIF,EXW
- Min. Order: 1 Square Meter
- Transportation: Ocean
- Port: SHENZHEN
DescriptionProduct AttributesModel No.: WD-AW021
Brand: Wendou
Warranty Service: More Than 5 Years
After-sales Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection
Engineering Solution Capability: Total Solution For Projects, 3d Model Design, Graphic Design
Application Scenario: Hotel, Apartment, Villa, Hospital, Warehouse, Farmhouse, Basement
Design Style: Modern, Traditional, Farmhouse, Industrial, European, Transitional, French, Chinese
Place Of Origin: China
Packaging & DeliverySelling Units: Square Meter Package Type: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate Picture Example:
Supply Ability & Additional InformationPackaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Productivity: 150000㎡/year
Transportation: Ocean
Place of Origin: China
Supply Ability: 10000㎡/month
Certificate: NFRC/AS2047
HS Code: 7610100000
Port: SHENZHEN
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Product Description1.Appearance features of Aluminum Awning WindowsNarrow frame design, modern and simpleThe broken bridge energy-saving top-hung window adopts high-strength aluminum alloy or composite material frame. The broken bridge technology divides the window frame into two layers, inner and outer, and fills the middle with insulation strips (such as polyamide PA66+GF25). This design makes the window frame line more slender, and the visual permeability is increased by more than 30%, while maintaining the structural strength, which is suitable for modern architectural style.Hidden drainage systemThe bottom of the window frame is integrated with hidden drainage holes, combined with the slope design to prevent rainwater from backflowing. The drainage hole is covered with a dust cover to prevent clogging by debris, taking into account both beauty and practicality.Multi-locking point hardwareAdopting the hardware system imported from Germany, equipped with 3-5 locking points, the window sash forms a multi-point seal with the window frame when closed, which improves the anti-theft performance while reducing the infiltration of cold and hot air.
2.Material advantages of Aluminum Alloy WindowsBroken bridge insulation structureThe aluminum profile is disconnected by polyamide insulation strips to block the heat conduction path. Experimental data show that the heat transfer coefficient (U value) of the thermal break window can be as low as 1.8-2.5 W/(m²·K), which is more than 50% energy-saving compared with ordinary aluminum alloy windows.Insulating glass technologyStandard double-layer Low-E insulating glass (such as 6mm+12A+6mm), argon is filled between the glass to reduce heat convection. Optional three-glass two-cavity or vacuum glass can further improve the thermal insulation performance, suitable for extremely cold or hot areas.Composite sealing stripUsing EPDM and silicone composite strip, it is resistant to aging and UV, with a service life of more than 15 years. The strip is designed as a multi-channel sealing structure to effectively block wind, sand, rain and noise.3. Advantages of useSignificant energy-saving effectIn winter, the thermal break structure reduces the loss of indoor heat through the window frame; in summer, it blocks the outdoor high temperature from entering. Taking a 100㎡ residence as an example, after using the broken bridge window, the air conditioning energy consumption can be reduced by 20%-30%, and the annual electricity bill can be saved by about 1000-1500 yuan.Excellent sound insulation performanceThe double noise reduction of hollow glass and broken bridge structure can reduce the outdoor noise by 30-40 decibels (dB). After using it in street-facing residences, the indoor noise can be controlled below 40dB, achieving a library-level silent effect.Strong waterproof and windproof performanceThe top-hung window has a small opening angle (usually 15-30°), combined with a hidden drainage system, which can effectively drain water even in heavy rain. The window frame and the wall are fixed with expansion bolts, and the wind pressure resistance reaches level 9 (the highest level of the national standard), which is suitable for high-rise buildings.
4. Application scenariosResidential buildingsApplicable to spaces such as bedrooms and living rooms that require silence and energy saving. The top-hung opening method prevents rain from drifting in, which is suitable for rainy areas.Commercial buildingsOffice buildings, hotels and other places use large-area broken bridge windows to increase the natural light rate while reducing air conditioning energy consumption. Optional electric opening system for intelligent control.Passive buildingCombined with low-carbon technologies such as fresh air system and ground source heat pump, the broken bridge window can help the building meet the passive house standard (annual energy consumption is less than 15kWh/(m²·a)).Renovation projectWhen renovating old windows, the broken bridge window can directly replace the original window frame without destroying the wall structure, with a short construction period (usually 1-2 days/household), and the cost is 30% lower than that of new projects.Color and surface treatmentProvides a variety of surface treatment processes such as wood grain transfer, fluorocarbon spraying, anodizing, etc., with more than 200 color options to match different architectural styles.Size and shape customizationSupports customization of special-shaped windows (such as arcs and triangles), with a maximum size of 3m×2.5m, meeting the needs of large-span design.Function upgradeIntelligent control: integrated electric window opener, wind and rain sensor, to achieve automatic window opening and closing.Safety protection: optional diamond mesh anti-theft screen, child lock and other safety accessories.Sunshade system: built-in blinds or external sunshades to reduce direct sunlight and reduce air conditioning load.The file is encrypted. Please fill in the following information to continue accessing it
