Optional Privacy Glass Top Hinged Roof Windows

Optional Privacy Glass Top Hinged Roof Windows

$75-150 /Square Meter

Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-AW029

Brand: Wendou

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

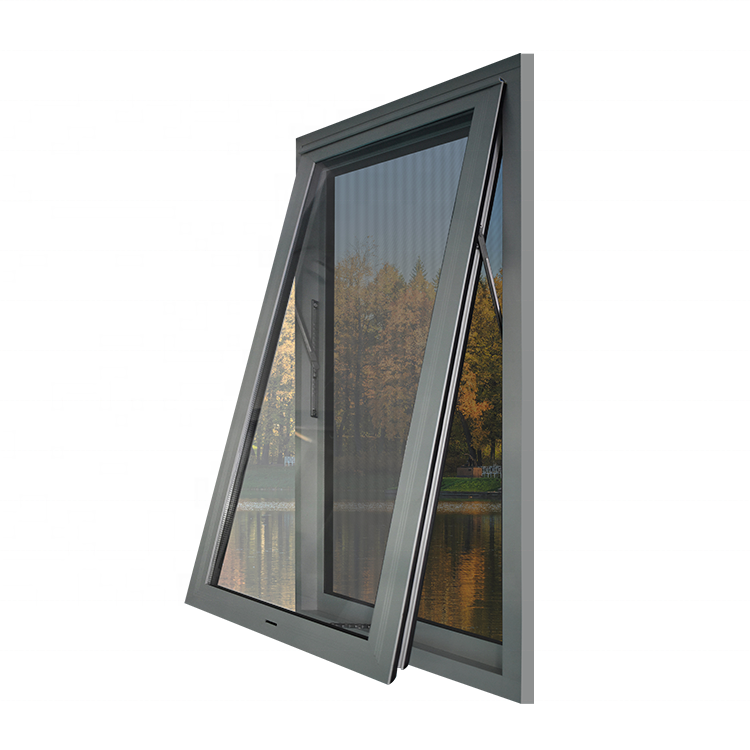

Optional Privacy Glass Top Hinged Roof Windows

1. Core Definition and Functions

Optional Privacy Glass Top Hinged Roof Windows are roof windows that are fixed at the top and open outwards from the bottom. Combining privacy glass with an aluminum frame, they achieve a balance between ventilation, lighting, and privacy. Inspired by modern European architecture, their "top-fixed + bottom-opening" mechanical structure resolves the conflict between privacy and ventilation efficiency in traditional roof windows, making them a preferred choice for residential, commercial, and public buildings.

2. Structural Features: Precision Design Enables Multi-Scenario Applications

Top Hinged System

Aluminum Windows utilize high-strength stainless steel hinges with a load-bearing capacity exceeding 80kg, suitable for large window sashes (such as living room windows over 1.5 meters wide). Some brands (such as VELUX) use a double-hinged design to increase the load-bearing capacity to 100kg, ensuring the window sash remains stable and does not wobble when open.

Privacy Glass Configuration

Switching Glass: Electronically adjustable glass transparency allows for dynamic switching between privacy and natural light, suitable for meeting rooms, bathrooms, and other similar settings.

Frosted Glass: A chemically treated surface creates a uniform frosted layer, allowing light to pass through while maintaining indoor brightness.

Laminated Glass: A PVB film is embedded between two layers of glass, preventing shattering and enhancing safety and sound insulation.

Aluminum Frame Design

The frame is made of 6063-T5 aluminum alloy, 1.4-2.0mm thick. Thermal bridging technology (PA66 nylon thermal break strips) blocks thermal bridges, and EPDM sealing strips achieve an airtightness rating of 8 (EN 12207 standard), a watertightness rating of 6 (EN 12208 standard), and a wind pressure resistance rating of 9 (EN 12210 standard).

3. Material Advantages: Synergistic Upgrade of Aluminum and Glass

Aluminum Frame

Durability: The aluminum alloy surface undergoes a fluorocarbon coating process, passing over 1000 hours of salt spray testing, suitable for coastal or humid areas.

Thermal Performance: The thermal break design combined with a wide thermal break strip (24mm) reduces the heat transfer coefficient, resulting in 30% energy savings compared to ordinary Aluminum Alloy Windows.

Flexibility: Aluminum Alloy Windows supports customized curved and irregularly shaped window frames to meet the aesthetic needs of modern architecture.

Privacy Glass

Dimmable Glass: Response time ≤3 seconds, supports remote control or mobile APP control, compatible with smart home systems.

Frosted Glass: Light transmittance exceeds 60%, privacy protection meets ISO 25978 standards.

Laminated Glass: Sound insulation reaches 35 dB (RW value), 20 dB better than single-pane glass.

4. Applicable Buildings: Covering all scenarios from residential to commercial

Residential Scenarios

Sloping Roof Lofts:The cantilever window design adapts to sloping roofs, maximizing space utilization. Combined with dimmable glass, it allows for flexible switching between privacy and natural light.

Bathrooms and Toilets:Frosted glass cantilever windows protect privacy while ventilation removes moisture, preventing mold growth.

Kitchens:Laminated glass cantilever windows isolate cooking fumes while introducing natural light, enhancing the cooking experience.

Commercial Scenarios

Offices:Dimmable glass cantilever windows with an electric opening system allow for remote control of ventilation and privacy, improving work efficiency.

Hotels:Customized curved cantilever windows with intelligent shading systems enhance the customer experience.

Shops:Folding cantilever windows (such as a 3-panel design) maximize display area and attract customers.

Public Buildings

Libraries:Frosted glass cantilever windows protect reading privacy while introducing natural light and reducing energy consumption.

Hospitals:Laminated glass cantilever windows isolate noise, providing a quiet environment for patients.

5. Customization Options: Key Parameters and Personalized Needs

Size and Shape

Aluminum Awning Windows support non-standard sizes from 300-1500mm in width and 300-1200mm in height, adaptable to irregularly shaped roofs (such as arched and trapezoidal).

Special shapes such as circles and triangles are also available for customization to meet architectural aesthetic requirements.

Glass Configuration

Basic Model: 5mm frosted glass, suitable for the privacy needs of ordinary residences.

Energy-Saving Model: 6+12A+6 laminated dimming glass, suitable for passive buildings, annual energy consumption ≤15 kWh/m².

Functional Model: Bulletproof glass (security), electrochromic glass (intelligent dimming), suitable for special needs.

Colors and Surface Treatments

Solid Color Series: Offers 10 standard colors including white, gray, and brown, and supports RAL color card customization.

Wood Grain Transfer: Uses German Renolit brand transfer film to simulate the texture of oak, walnut, etc., with a realistic tactile feel.

Metallic Texture: Achieves metallic effects such as champagne gold and bronze through fluorocarbon coating, complementing modern minimalist styles.

Smart Integration:

Electric Opening: Comes with a motor and remote control, supports mobile app control, and is compatible with smart home systems.

Sensor Linkage: Integrated wind and rain sensor automatically closes windows in rainy weather; works with temperature and humidity sensors to automatically adjust ventilation.
