High Breeze Ventilation Awning Windows

$75-150 /Square Meter

option
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-AW024

Brand: Wendou

Warranty Service: More Than 5 Years

After-sales Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection

Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects

Application Scenario: Hotel, Villa, Apartment, Hospital, Farmhouse, Warehouse, Basement

Design Style: Modern, Traditional, Industrial, Postmodern, French, Chinese, European, Transitional, Farmhouse

Place Of Origin: China

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

1.Material features of Aluminum Windows

High-strength aluminum alloy frame

Using aviation-grade aluminum alloy (such as 6063-T5 or 6061-T6), after being treated with the thermal insulation technology, an insulation cavity is formed inside the frame, and the polyamide PA66+GF25 insulation strip is used to block the heat conduction path. This structure reduces the heat transfer coefficient (U value) of the entire window to 1.8-2.2 W/(m²·K), which is more than 40% energy-saving than ordinary aluminum windows, and the wind pressure resistance performance reaches level 9 (can withstand level 12 typhoons).

Composite sealing system

Using EPDM and silicone composite strips, combined with a multi-channel sealing design, the air tightness reaches national standard level 8 and the water tightness reaches level 6. The hidden drainage hole and sloped window sill design prevent rainwater from flowing back. Experimental data show that there is no obvious water accumulation in the window under a rainfall of 50 mm per hour.

High-performance glass configuration

Standard double-layer Low-E insulating glass (6mm+12A+6mm), optional three-glass two-cavity or vacuum glass, with argon filling to reduce heat convection. The glass transmittance exceeds 80%, while blocking more than 90% of ultraviolet rays, taking into account both lighting and heat insulation.

2. Advantages of using Aluminum Awning Windows

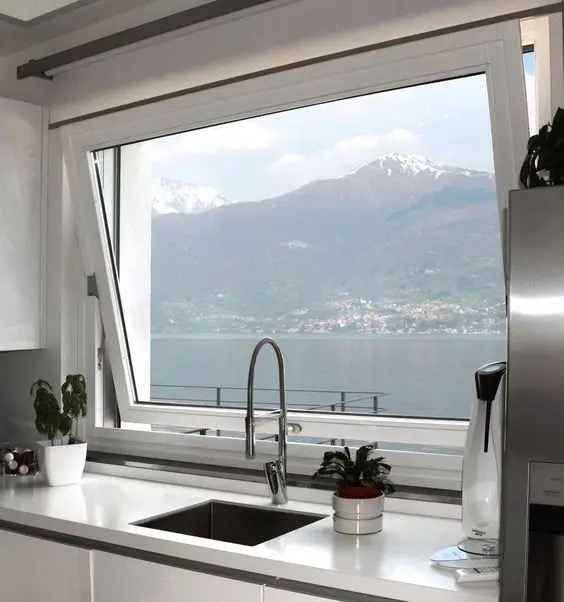

All-weather ventilation capability

The upper hanging opening angle is 15-30°, and the thermal pressure principle is used to achieve natural ventilation, which can keep indoor air circulation even on rainy days. Taking a 100㎡ residence as an example, after using high-efficiency ventilation upper hanging windows, the indoor CO₂ concentration can be reduced by 30%, and the formaldehyde concentration can be reduced to below 0.05mg/m³ (in line with the national standard ≤0.08mg/m³).

Energy saving and sound insulation performance

The insulating glass and the broken bridge structure have dual noise reduction, which can reduce outdoor noise by 35-45 decibels (dB). In summer, the thermal insulation performance reduces air conditioning energy consumption by 25%; in winter, it reduces heating energy consumption by 20%, saving electricity bills annually.

Safety and durability

The corrosion resistance of the aluminum alloy frame meets the ASTM B117 standard (salt spray test over 1000 hours) and the service life exceeds 20 years. The multi-point locking system and anti-theft hardware have passed the EU RC2 certification, and the anti-pry performance has been improved by 50%.

3. Application areas of Custom Aluminum Windows

Green building projects

It meets the LEED Gold or China Three-Star Green Building standards, and is especially suitable for passive buildings. For example, in the certification project of the Passive House Institute in Darmstadt, Germany, the high-efficiency ventilation top-hung windows use high-efficiency insulation and natural ventilation design to reduce the annual energy consumption of the building to less than 15kWh/(m²·a).

Old window renovation project

The original window frame can be directly replaced without destroying the wall, and the construction period is shortened to 1-2 days/household. After the renovation, the building's energy efficiency is improved by 30%, and the investment recovery period is only 3-5 years, which is suitable for energy-saving renovation of old communities.

Commercial and public facilities

Office buildings: Large-area glass design improves natural light rate and reduces lighting energy consumption by 20%-30%.

Hospitals and schools: The airtight design prevents cross-contamination of air, meets the clean room standard (ISO Class 5), and ensures indoor air quality.

Hotels: Optional electric opening system to achieve intelligent control and remote management, and enhance customer experience.

4. Suitable for project scenarios

High-rise residential buildings

The wind pressure resistance meets the GB/T 8478-2020 standard and is suitable for buildings above 30 floors. The top-hung opening method avoids direct cold wind and improves living comfort, especially for families with elderly or children.

Coastal and rainy areas

The waterproof performance has passed the GB/T 7106-2019 standard test, which can keep the indoor room dry in heavy rain. For example, in coastal projects, high-efficiency ventilation top-hung windows withstood the test of Typhoon "Dusurui" without leakage.

Low-carbon parks and zero-carbon buildings

Cooperate with low-carbon technologies such as ground source heat pumps and solar photovoltaics to help buildings achieve zero-carbon goals. Taking a zero-carbon park in Shenzhen as an example, after using high-efficiency ventilation top-hung windows, the overall carbon emissions of the building were reduced by 40%, and WELL Platinum certification was obtained.

Historical building renovation

Customized design can match the style of historical buildings while improving energy efficiency. For example, in a renovation project of an ancient building in Suzhou, the high-efficiency ventilation top-hung windows were treated with imitation wood grain transfer, which not only retained the traditional style but also improved the building's energy efficiency by 25%.
