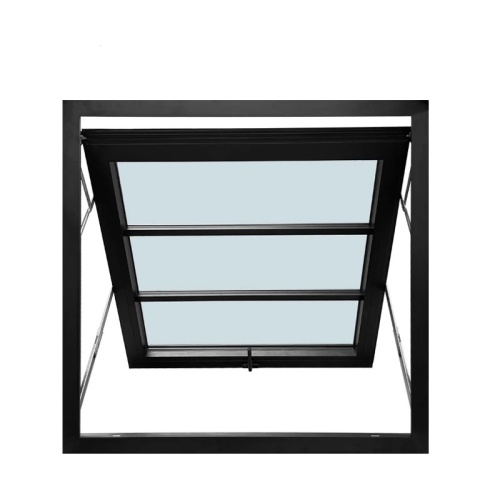

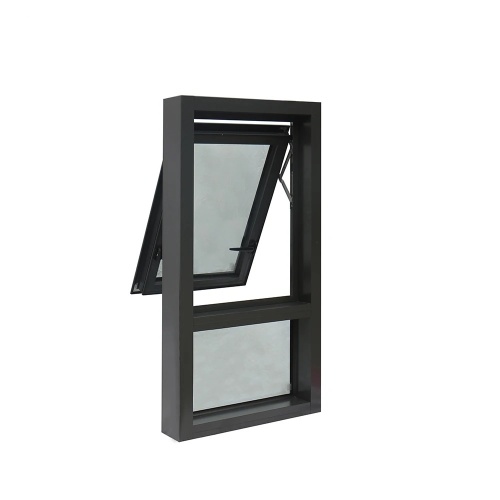

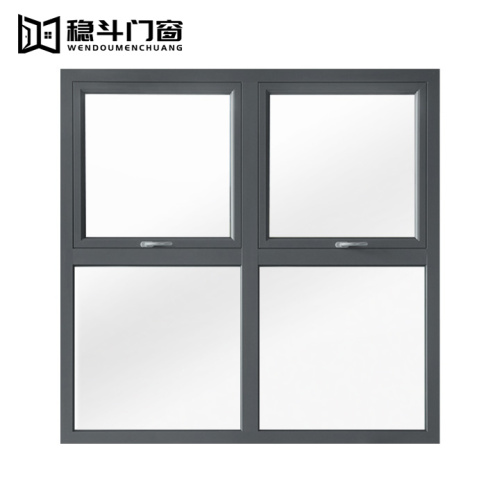

High Rise Bathroom Ventilation Windows

$75-150 /Square Meter

option
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW,CFR
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-AW025

Brand: Wendou

Warranty Service: More Than 5 Years

After-sales Service: Online Technical Support, Onsite Installation, Onsite Inspection, Onsite Training

Engineering Solution Capability: Total Solution For Projects, 3d Model Design, Graphic Design

Application Scenario: Hotel, Villa, Hospital, Warehouse, Farmhouse, Basement, Bathroom, Apartment, Office Building

Design Style: Modern, Traditional, Farmhouse, Industrial, French, Chinese, Transitional, European

Place Of Origin: China

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW,CFR

Product Description

1. Material characteristics and performance data of Aluminum Alloy Windows

Aluminum alloy frame

Using 6063-T5 or 6061-T6 aviation-grade aluminum alloy, after being treated with the thermal insulation technology, an insulation cavity is formed inside the frame. With PA66+GF25 insulation strips, the heat transfer coefficient (U value) is as low as 1.8-2.2 W/(m²·K), which saves more than 40% energy compared with ordinary Aluminum Windows. The wind pressure resistance reaches level 9 (can withstand level 12 typhoons), the corrosion resistance passes the ASTM B117 salt spray test (over 1000 hours), and the service life exceeds 20 years.

Glass configuration

Standard double-layer Low-E insulating glass (6mm+12A+6mm), optional three-glass two-cavity or vacuum glass, with argon filling, heat convection is reduced by 30%. The glass transmittance exceeds 80%, the UV blocking rate reaches 90%, and it also has explosion-proof function (impact strength ≥5J/m²).

Ventilation system

Integrated electric exhaust device, air volume can reach 50-150 CFM (cubic feet per minute), noise is less than 35 decibels (equivalent to library environment). Some models are equipped with HEPA filter and activated carbon layer, PM2.5 filtration efficiency reaches 99.97%, and formaldehyde removal rate exceeds 90%.

2. Advantages of using Aluminum Awning Windows

Efficient ventilation and energy saving

The electric exhaust device can quickly remove moisture from the bathroom to avoid mold growth. Taking a 100㎡ residence as an example, after using high-rise bathroom ventilation windows, air conditioning energy consumption is reduced by 25%, winter heating energy consumption is reduced by 20%, and annual electricity bills are saved by about 1500-2000 yuan.

Health and safety

Through continuous ventilation (air changes per hour ≥ 6 times), the indoor CO₂ concentration is effectively reduced to below 800ppm, and the formaldehyde concentration is controlled within 0.05mg/m³ (in line with the national standard ≤0.08mg/m³). Rain and snow-proof design (waterproof grade up to IPX5) and insect-proof net (mesh number ≥18 mesh) ensure a clean indoor environment.

Intelligent control

Supports mobile phone APP remote control and dust monitoring, and automatically starts exhaust when PM2.5 concentration exceeds the standard. Some models integrate humidity sensors, automatically open ventilation when humidity ≥70%, and close when humidity ≤50%, realizing intelligent management.

3. Application areas

High-rise residential buildings

Applicable to buildings above 30 floors, and the wind pressure resistance meets the GB/T 8478-2020 standard. The top-hung opening method avoids direct cold wind and improves living comfort, especially for families with elderly or children.

Hotels and commercial buildings

Large-area glass design increases natural light rate and reduces lighting energy consumption by 20%-30%. The airtight design prevents cross-contamination of air and meets clean room standards (ISO Class 5), suitable for high-end hotels, hospital wards and other places.

Green building projects

Cooperate with low-carbon technologies such as ground source heat pumps and solar photovoltaics to help buildings reach LEED Gold or China's three-star green building standards. For example, after a zero-carbon park in Shenzhen used high-rise bathroom ventilation windows, the overall carbon emissions of the building were reduced by 40%, and it was certified as WELL Platinum.

4. Suitable project scenarios for Custom Aluminum Windows

Coastal and rainy areas

The waterproof performance has passed the GB/T 7106-2019 standard test, which can keep the indoor environment dry in heavy rain. In coastal projects, high-rise bathroom ventilation windows need to withstand typhoons and will not leak.

Old window renovation project

The original window frame can be directly replaced without destroying the wall, and the construction period is shortened to 1-2 days per household. After the renovation, the building's energy efficiency is increased by 30%, and the investment recovery period is only 3-5 years, which is suitable for energy-saving renovation of old communities.

Historical building protection

Customized design can match the style of historical buildings while improving energy efficiency. For example, in the ancient building renovation project, the high-rise bathroom ventilation windows are treated with imitation wood grain transfer, which not only retains the traditional style, but also increases the building's energy efficiency by 25%.

Public health and safety projects

The high-rise bathroom ventilation windows reduce the risk of virus transmission through continuous ventilation. The quarantine hotel uses ventilation windows with integrated HEPA filters to reduce indoor viral aerosol concentration by more than 90%.
