Australian Standard Aluminium Awning Window

Australian Standard Aluminium Awning Window

$75-150 /Square Meter

option
Contact Now

Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-AW026

Brand: Wendou

Warranty Service: More Than 5 Years

After-sales Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection

Engineering Solution Capability: Total Solution For Projects, 3d Model Design, Graphic Design

Application Scenario: Hospital, Office Building, Apartment, Hotel, Villa, Warehouse, Bathroom, Farmhouse, Basement

Design Style: Traditional, Modern, Farmhouse, Industrial, European, Transitional, Chinese, French

Place Of Origin: China

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CFR,CIF,EXW

Product Description

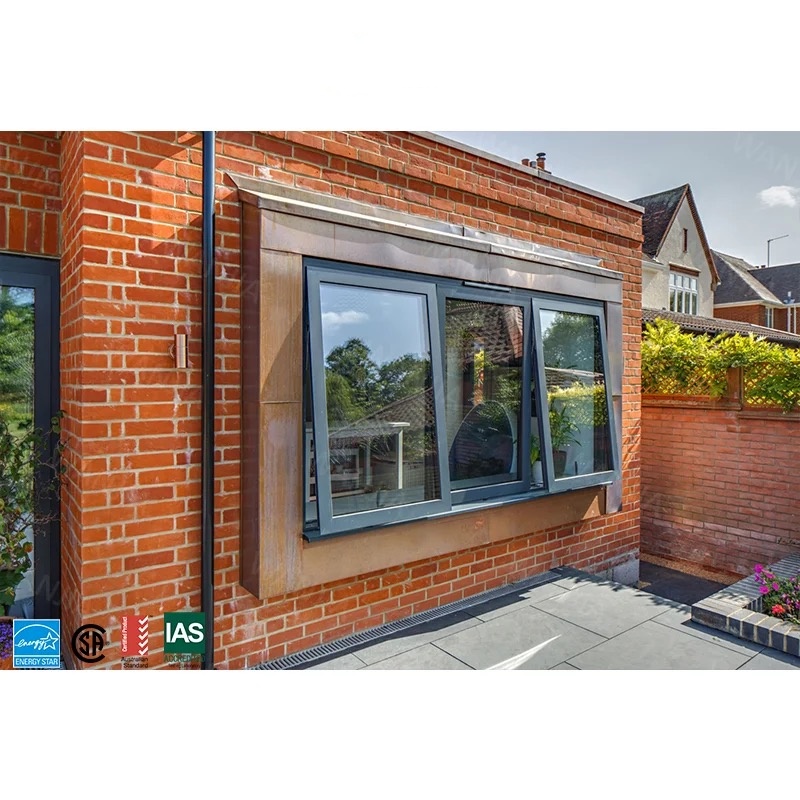

Australian Standard Aluminum Awning Window

I. Standard Definition and Core Parameters

The Australian Standard Aluminum Awning Window (Australian Standard Aluminum Top-Hung Window) is a window and door product designed in accordance with AS2047, "Performance Standard for Building Door and Window Systems."

Aluminum Awning Windows Core Parameters:

Structural Thickness: Main profile wall thickness ≥ 2.0mm (some commercial series, such as the RS100 series, can reach 2.5mm), far exceeding the 1.4-1.8mm standard for ordinary windows and doors. Wind pressure resistance exceeds 3500Pa (equivalent to a force 12 typhoon).

Glass Configuration: Supports double-glazed insulating glass (5mm + 20A + 5mm) and laminated safety glass. Thermal conductivity U-values are as low as 1.1W/(m2·K), and sound insulation performance reaches RW35dB (in compliance with AS1276 acoustic standards). Airtightness: Utilizing a three-duckbill sealing strip design, air permeability per unit length is ≤0.5 m³/(m·h) (AS2047-2014 Class 4).

Watertightness: Utilizing an isobaric rain curtain drainage system, the windows can withstand water pressures exceeding 450 Pa (equivalent to torrential rainfall intensity).

II. Aluminum Alloy Windows Material Characteristics and Structural Advantages

1. Aluminum Alloy Profile Technology Breakthrough

6063-T5 Alloy: The main profile utilizes T6063-T5 aviation-grade aluminum alloy, with a yield strength ≥160 MPa and an elongation ≥8%. After anodizing, the surface hardness reaches HV600 or higher, and corrosion resistance meets AS3715 standards.

Insulated Thermal Design: The commercial series utilizes 24 mm wide PA66 + 25% glass fiber insulation strips, achieving a thermal conductivity of ≤0.8 W/(m2·K), resulting in a 40% improvement in energy efficiency compared to ordinary aluminum alloy windows. Corner Connection Technology: Utilizing two-component glue injection corner code technology, corner strength reaches 3200N (AS2047-2014 test method), a 60% improvement over traditional mechanical connections.

2. Hardware System Integration Solution

Doric Chain Window Opener: Equipped with an Australian brand chain drive mechanism, it has a load capacity of 150kg and an adjustable opening angle of 45°, meeting the child safety requirements of AS1288-2006.

Multi-Point Locking System: Equipped with a 304 stainless steel drive rod and mushroom-head locking points, it provides even locking force distribution and achieves RC2 security rating (AS/NZS 4131 standard).

Concealed Hinges: Utilizing German three-dimensional adjustable hinges, it has a load capacity of 80kg and a lifespan exceeding 50,000 opening cycles (AS2047-2014 cycle test).

III. Aluminum Windows Compatibility with Building Groups

1. Residential Building Applications

High-Rise Apartments: The RS100 series offers a maximum single window size of 2480mm x 700mm (1.74㎡). Combined with 12mm tempered laminated glass, it meets the fall protection requirements of AS1288-2006 and is suitable for spaces such as balconies and kitchens.

Low-Rise Villas: Available with wood grain transfer (PVDF coating) and fluorocarbon spraying, it can simulate textures such as walnut and sandstone, with a color difference ΔE ≤ 1.5 (AS2700 standard), making it suitable for rustic facades.

Passive Houses: With a U-value of 1.1W/(㎡·K) and EPDM sealing strips, the overall window thermal conductivity K value is ≤ 1.8W/(㎡·K), meeting the Nathers 8-star energy efficiency standard.

2. Commercial Building Solutions

Hospital Project: Antimicrobial powder coating (compliant with ISO 22196) with a surface bacterial survival rate of less than 1%. 304 stainless steel mosquito screen with a pore size of ≤0.8mm and a barrier rate of 99%.

School Building: Branded child safety locks are used, requiring double-action unlocking to prevent accidental opening, complying with AS1428.1 barrier-free design standards.

Data Center: Integrated electric window opening system (IP65 protection rating) with support for BA system linkage, enabling fire and smoke exhaust to open to full angle within 30 seconds.

IV. Typical Case Data

Melbourne Apartment Project: RS105 series 2480mm x 700mm large windows are used. CSIRO testing shows structural deformation of less than 2mm at a wind speed of 50m/s, maintaining a watertightness rating of Class 4.

Sydney Children's Hospital Renovation: NF-80 series thermally insulated windows are used, along with 5mm+12A+5mm Low-E glass. The indoor noise level is reduced from 72dB to 38dB, achieving a 38% energy saving. Brisbane Warehouse: 150 RS86 series top-hung windows were installed with electric chain window openers, achieving an air change rate of 12,000m³ per hour, meeting AS1668.2 ventilation standards.
