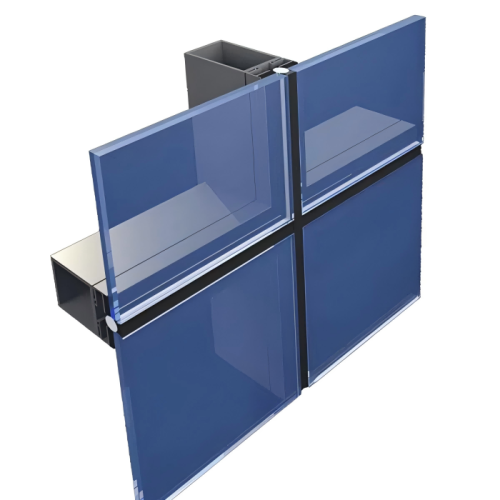

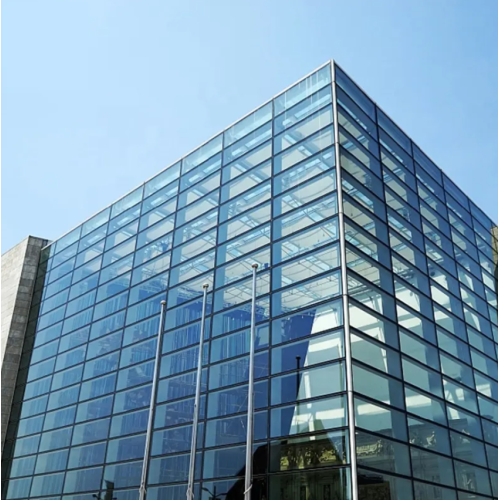

Custom Aluminum Curtain Walls

$75-150 /Square Meter

Material	Aluminum
option
Contact Now

Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW,FAS
Min. Order: 1 Square Meter
Transportation: Ocean
Port: shenzhen

Description

Product Attributes

Model No.: WD-CWL011

Brand: Wendou

Variety: Curtain Walls

After-sales Service: Return And Replacement, Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection

Application Scenario: Other, Kitchen, Park, Workshop, Mall, School, Hospital, Warehouse, Office Building, Supermarket, Apartment, Leisure Facilities, Villa, Hotel, Sports Venues, Courtyard, Farmhouse, Entry, Exterior

Place Of Origin: China

Screen Netting Material: Aluminum Alloy/Stainless steel/Fiberglass

Main Material: Aluminum alloy+Glass+Accessories

Glass: Tempered glazing+Laminated glazing+Low-E glazing+Reflective glazing+Frosted glazing

Color: Customized based on your needs

Hardware: Germany brand/Chinese brand/American brand

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

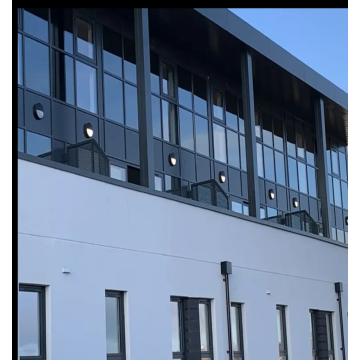

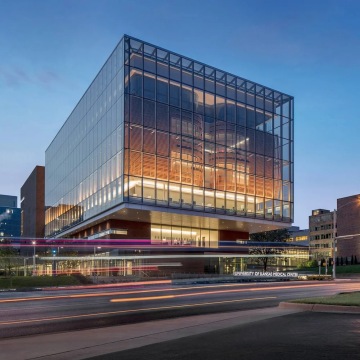

Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/M

Certificate: NFRC/CE/AS2047

HS Code: 7610100000

Port: shenzhen

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CFR,CIF,EXW,FAS

Product Description

Custom aluminum curtain walls are non-load-bearing exterior building maintenance systems, built with an aluminum alloy frame as the core and infilled with glass, metal panels, or composite materials. These systems are customizable through a modular design.

1. Aluminum Glass Curtain Wall Core Values

Aesthetics and Functionality: Customized design allows for personalized architectural expression while meeting energy-saving, waterproof, and soundproofing requirements.

Fully Adaptable: Supports a wide range of building types, including commercial, residential, and industrial, and is particularly suitable for high-rise buildings, special-shaped structures, and renovation projects.

Sustainability: Aluminum alloy boasts a recyclability rate exceeding 95%. When combined with environmentally friendly materials such as photovoltaic glass, these systems meet green building standards such as LEED and BREEAM.

2. Aluminum Frames For Curtain Wall Material Features and Technological Breakthroughs

Aluminum Alloy Frame Performance

High Strength and Lightweight: Utilizing 6061 or 6063 series aluminum alloys, these systems offer a yield strength of 180-240 MPa and a density only one-third that of steel, reducing building loads. Weather and Corrosion Resistance: Surface treatment uses fluorocarbon spray coating (film thickness ≥ 40μm) or anodizing, and has passed 2000 hours of salt spray testing, making it suitable for coastal and highly polluted environments.

Optimized Thermal Performance: Thermal insulation strips (PA66 + 25% glass fiber) have a thermal conductivity of ≤0.3W/(m²·K). Combined with the multi-cavity profile design, the overall heat transfer coefficient of the frame is reduced by 60%.

Diverse Filling Materials

Glass System: Supports Low-E insulating glass (K value ≤ 1.0W/(m²·K)), electrochromic glass (transmittance adjustable from 10% to 80%), and photovoltaic integrated glass (annual power generation covers 15%-20% of electricity demand).

Metal Panel: Aluminum Composite Panel (ACP) with a thickness of 3-6mm, a fire rating of A2, and support for curved surfaces.

Composite Materials: Honeycomb aluminum panels (10-50mm thick) offer a sound insulation performance of up to 35dB, making them suitable for noise-sensitive locations such as airports and train stations.

3. Curtain Wall Aluminum Styling Advantages and Design

Form Customization

Curved and Special-Shaped Structures: CNC bending technology is used to achieve single-curved, double-curved, and complex geometric shapes, such as the wavy design of the Dubai Opera's Aluminum Curtain Wall.

Modular Combination: Standard units (e.g., 1.2m x 2.4m) can be combined with special-shaped units to create visual effects such as gradients and perforations.

Dynamic Opening Design: Integrates movable components such as electric folding doors and rotating windows, such as the rotating curtain wall units of the Shanghai Tower.

Innovative Surface Treatment

Color Customization: A full range of international color palettes, including RAL and NCS, is available, along with biomimetic textures such as brushed metal and wood grain transfers.

Self-Cleaning Coating: Nano-titanium dioxide coating increases the hydrophilicity of the curtain wall surface by 80%, reducing cleaning frequency by 70%.

4. Application Scenarios and Functional Expansion

Commercial Buildings

High-end shopping malls: Using all-glass curtain walls with intelligent shading systems, such as the VivoCity project in Singapore, achieves 85% natural light intake and reduces air conditioning energy consumption by 30%. Super-high-rise office buildings: Unitized curtain wall systems withstand wind pressures up to 12kPa. Combined with double-silver Low-E glass, such as the Ping An Finance Center in Shenzhen, energy efficiency increases by 40%.

Cultural facilities

Museums and art galleries: Use low-reflective glass (reflectivity ≤ 8%) to reduce light pollution, such as the Louvre's glass pyramid renovation project.

Theaters and convention centers: Integrated acoustic panels, such as the curtain wall system of the National Centre for the Performing Arts, achieve a sound insulation performance of 45dB.

Residential and renovation projects

Villas and high-end residences: Customized aluminum curtain walls create a seamless connection between indoor and outdoor spaces, such as the electrically folding curtain walls at the Double Bay Villas in Sydney.

Existing building renovations: Lightweight designs reduce loads on the existing structure, such as the facade renovation of the Shard in London.

5. Customized Aluminum Curtain Wall Options

Design Phase

BIM Collaborative Design: Provide 3D models to simulate light and shadow effects and optimize the integration of the curtain wall with the building structure.

Performance Simulation: Use CFD fluid dynamics to analyze parameters such as wind pressure and heat transfer to ensure design compliance.

Production Phase

Custom Size: We support non-standard dimensions, with tolerances within ±0.5mm.

Material Combinations: We offer a variety of filling options, including glass, metal, and composite materials, to meet special requirements such as fire and explosion protection.

Installation Phase

Modular Installation: The unitized curtain wall system boasts an 80% factory prefabrication rate, increasing on-site installation efficiency by 50%.

Intelligent Commissioning: Integrated wind and rain sensors and a photovoltaic-driven ventilation system provide automated environmental control.

6. Installation Process and Quality Control

Foundation Construction

Measurement and Layout: Laser positioning equipment is used to ensure installation accuracy, with an error of ≤2mm.

Embedded Parts Installation: Q345B steel is used, with welding strength meeting a safety factor of twice the design load.

Frame Assembly

Mechanical Connections: High-strength bolts (torque value ≥45 N·m) are used with structural adhesive for sealing, achieving watertightness up to EN 12208 standard E1050.

Insulation Strip Installation: Positioning fixtures are used to ensure a gap of ≤0.2mm between the strip and the profile to prevent thermal bridging.

Filler Material Installation

Glass Installation: Double-sealed with butyl and silicone structural adhesive, weatherproof for ≥25 years.

Metal Panel Installation: Concealed fastener system achieves a nail-free appearance.

Acceptance Criteria

Airtightness: Certified to EN 12207 Level 4 (n50 ≤ 1.5h⁻¹).

Wind Pressure Resistance: Certified to GB/T 7106-2019 Level 9 (wind pressure ≥ 5.0kPa).
