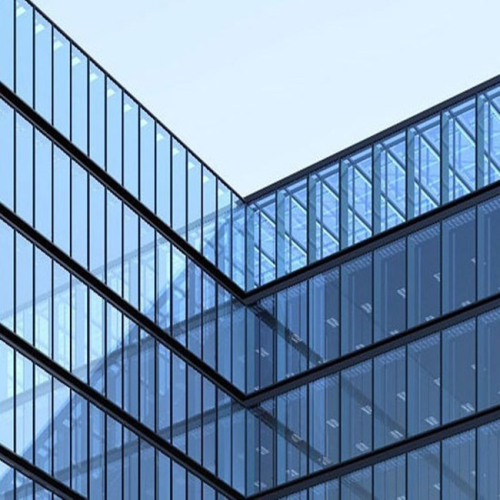

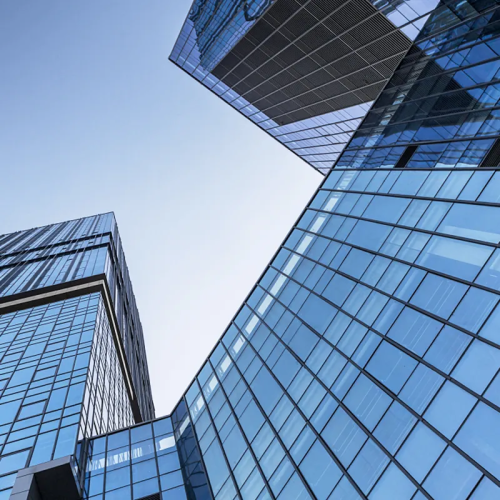

Fix Aluminum Frame Interior Curtain Wall

Fix Aluminum Frame Interior Curtain Wall

$75-150 /Square Meter

Material	Aluminum
option
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: shenzhen

Description

Product Attributes

Model No.: WD-CWL012

Brand: Wendou

Variety: Curtain Walls

After-sales Service: Return And Replacement, Online Technical Support, Onsite Inspection, Onsite Training, Onsite Installation

Application Scenario: Exterior, Entry, Other, Courtyard, Farmhouse, Sports Venues, Leisure Facilities, Apartment, Villa, Hotel, Hospital, School, Mall, Office Building, Supermarket, Warehouse, Workshop, Park

Place Of Origin: China

Screen Netting Material: Aluminum Alloy/Stainless steel/Fiberglass

Main Material: Aluminum alloy+Glass+Accessories

Glass: Tempered glazing+Laminated glazing+Low-E glazing+Reflective glazing+Frosted glazing

Color: Customized based on your needs

Hardware: Germany brand/Chinese brand/American brand

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/M

Certificate: NFRC/CE/AS2047

HS Code: 7610100000

Port: shenzhen

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

The Fix Aluminum Frame Interior Curtain Wall (Fixed Aluminum Frame Interior Curtain Wall) is a non-load-bearing interior partition system using an aluminum alloy profile as the frame and glass/metal panels/stone as the infill material.

1. Aluminum Curtain Wall Core Structure

Aluminum Alloy Frame: Utilizes 6063-T5/T6 grade aluminum profiles with a wall thickness of 2.0-3.0mm. Thermal break insulation (optional) enhances thermal performance.

Infill Materials: Commonly used are 10-12mm tempered glass (Low-E coating and laminated glass are optional), 3mm aluminum veneer, or 15mm thick stone honeycomb panels.

Connection System: The infill material is secured using mechanical clamps or structural adhesive, and connected to the building structure using stainless steel bolts.

2. Curtain Wall Aluminum Material Advantages

Lightweight and High Strength

Aluminum alloy has a density only one-third that of steel (2.7g/cm³ vs. 7.85g/cm³), yet boasts a tensile strength of 160-200MPa, meeting the load-bearing requirements of interior partitions. Using aluminum-framed curtain walls instead of traditional brick walls in office projects reduces weight by 65%, significantly reducing structural loads.

Corrosion Resistance and Maintenance Costs

The surface is anodized (AA15 grade) or coated with fluorocarbon fiber (PVDF), offering a salt spray resistance of over 1,000 hours, making it suitable for humid environments (such as bathrooms and kitchens). Lifecycle costs are 40% lower than stainless steel curtain walls, and regular rust prevention treatment is unnecessary.

Environmental Protection and Recyclability

Aluminum alloy has a recycling rate exceeding 95%, and the properties of recycled materials are comparable to those of virgin materials. Green Building Certification projects have shown that using aluminum-framed curtain walls can reduce a building's overall carbon emissions by 18%.

3. Aluminum Glass Curtain Wall Decoration Features

Modular Design

The standard unit size is 1200mm x 3000mm (width x height), allowing for unlimited expansion through splicing. For example, the art center utilizes a special-shaped aluminum frame curtain wall, achieved through 45° beveled joints to create a streamlined visual effect.

Acoustic Optimization

When filled with 5+12A+5 insulating glass, the weighted sound insulation reaches 35dB. Combined with aluminum panels backed with sound-absorbing foam, it can meet the acoustic requirements of conference rooms (STC ≥ 45).

Concealed Installation

Connected to the building structure via embedded components, with no exposed screws, it creates a "frameless" visual effect. High-end hotel projects utilize concealed hinges to ensure a flatness tolerance of less than 0.5mm between the curtain wall and the wall.

4. Compatible Building Types and Applications

Commercial Office

Applications: Lobby partitions, elevator lobby enclosures

Core Requirements: Modern aesthetic, light transmittance, brand display

Medical Education

Applications: Operating room observation windows, classroom soundproofing walls

Core Requirements: Airtightness, sound insulation, and easy cleanability

Cultural Venues

Applications: Museum display cases, theater boxes

Core Requirements: UV filtration, explosion-proof performance, and artistic expression

Transportation Hubs

Applications: Airport check-in counters, subway platform screen doors

Core Requirements: Impact resistance, weather resistance, and crowd control

Case Study: A 5A office building replaced traditional partitions with an aluminum-framed curtain wall, increasing natural light by 30%, reducing air conditioning energy consumption by 22%, and enhancing the sense of airiness.

5. Customized Style Requirements

Surface Treatment

Wood Grain Transfer: Thermal transfer technology is used to replicate the texture of woods like oak and walnut, suitable for New Chinese or rustic styles.

Brushed Metal: A mechanical brushing process creates a matte finish, perfect for industrial or modern minimalist designs. Color Anodizing: Electrolytic coloring creates special colors such as black and champagne gold to meet brand color requirements.

Customized Shapes and Sizes

Curved Curtain Walls: Aluminum alloy profiles are processed using CNC bending machines to create curved structures with a radius of 500mm or more.

Special Shape Splicing: Laser cutting technology is used to create non-standard units such as triangles and hexagons to accommodate complex architectural forms.

Functional Integration and Customization

Smart Dimming Glass: Integrated electrochromic technology allows glass transmittance to be controlled via a mobile app (adjustable from 10% to 85%).

LED Display: Flexible LED light strips are embedded in the double-glazed interlayer to create dynamic advertising or artistic displays.

6. Assembly Process and Quality Control

Standardized Assembly Steps

Measurement and Setting-out: A laser level is used to determine the installation baseline, with an error of ≤1mm/10m.

Frame Installation: Aluminum Frames for Curtain Walls are secured to the building structure using expansion bolts, with spacing ≤1200mm. Filler Material Fixing: Use structural adhesive (neutral silicone adhesive) to bond the glass, with a seam width of 8-12mm and a depth of ≥6mm.

Sealing: Apply weather-resistant adhesive to the frame joints, creating a 5mm radius to prevent water accumulation and leakage.

Key Quality Control Points

Airtightness Testing: Tested using the pressure differential method, air leakage ≤ 0.5 m³/(m·h) (National Standard GB/T 7106-2008).

Flatness Verification: Use a 2m straightedge to check, surface flatness error ≤ 2mm/2m.
