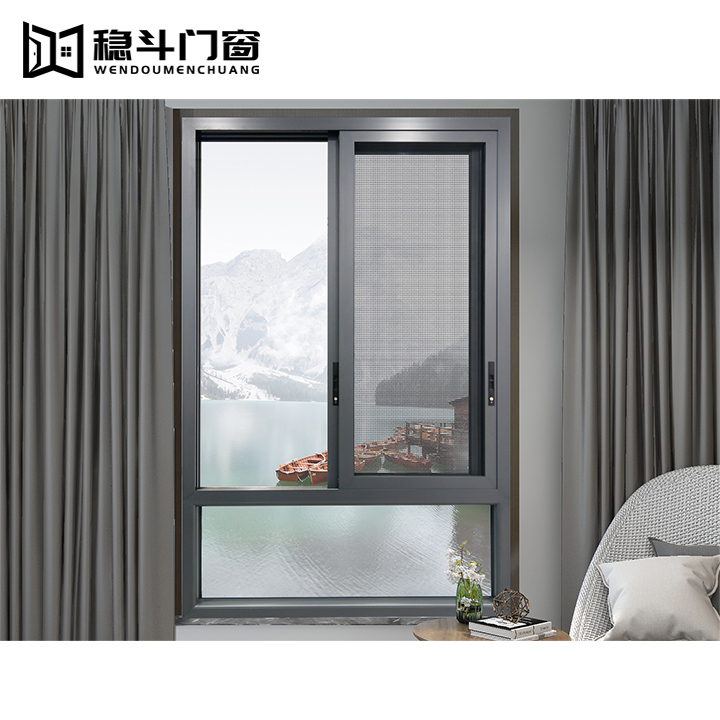

Arctic proof frost resistant sliding windows

Arctic proof frost resistant sliding windows

$75-150 /Square Meter

Variety	Sliding Windows
option
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: shenzhen

Description

Product Attributes

Model No.: WD-SW029

Brand: Wendou

Warranty Service: More Than 5 Years

After-sales Service: Free Spare Parts, Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection

Application Scenario: School, Hospital, Office Building, Apartment, Villa, Hotel, Sports Venues, Supermarket, Bathroom, Living Room, Bedroom, Dining

Design Style: Modern, Traditional, Contemporary, Chinese, French

Place Of Origin: China

Border Material: Aluminum Alloy

Material: Aluminum Alloy

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/ per month

Certificate: NFRC/CE/AS2047

HS Code: 7610100000

Port: shenzhen

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

Arctic-Proof Frost-Resistant Sliding Windows

I. Core Features and Data Support

Adaptability to Extreme Temperatures

Applicable temperature range: -60℃ to +50℃, thermal insulation is achieved through special sealing strips (such as EPDM rubber) and thermally insulated aluminum profiles (thermal conductivity ≤1.8 W/m·K).

Experimental data: Under -40℃ environment, the window frame surface temperature fluctuation is ≤5℃, and there is no frost on the indoor side.

Anti-frost and anti-freeze technology

Insulating glass is filled with argon (concentration ≥90%) and matched with Low-E coating (visible light transmittance ≥70%, heat transfer coefficient U value ≤1.2 W/m²·K), which effectively reduces heat conduction.

The window frame adopts a multi-cavity structure, and is filled with polyurethane insulation material (density ≥40 kg/m³) to reduce the thermal bridge effect.

Wind pressure resistance and water tightness

The wind pressure resistance performance reaches level 9 (national standard GB/T 7106-2019), which can withstand wind pressure ≥5.0 kPa, and is suitable for hurricane-prone areas.

Water tightness reaches level 6 (≥700 Pa), and rainwater leakage is prevented through a three-way sealing design (wool strips + rubber strips + silicone sealant).

2. Application scenarios of Energy Efficient Aluminum Sliding Windows

Polar scientific research station

Case: Zhongshan Station in Antarctica uses customized sliding windows with a window frame thickness of 120mm and a glass thickness of 44mm (10+12A+10+12A+10), which meets the requirements of an extreme environment of -50℃.

Function: Ensure indoor constant temperature (18-22℃) and reduce heating energy consumption by more than 30%.

Cold zone civil buildings

Applicable areas: Siberia, Russia, northern Canada, etc.

Configuration: Double-layer insulating glass (6+12A+6), with electric heating defog system, to solve the problem of glass frosting in winter.

Industrial cold storage and warehousing

Parameters: The window frame is made of 304 stainless steel, with a corrosion resistance level of C5, suitable for -30℃ to -5℃ environment.

Sealing: Air tightness reaches level 8 (≤0.5 m³/m·h), reducing air leakage.

3. Maintenance and care of Aluminum Sliding Windows

Daily cleaning

Frequency: Once a month, use a neutral detergent (pH value 6-8) to wipe the glass and profiles.

Taboo: Avoid using sharp tools to scratch the sealing strip to prevent aging and cracking.

Hardware maintenance

Lubrication: Apply silicone-based grease to the slide rails and lock points every quarter to ensure smooth pushing and pulling.

Inspection: Replace the aged strip every year (replace when the elastic recovery rate is <60%).

Extreme weather response

After a blizzard: Clear the snow on the window frame in time to prevent ice from causing sealing failure.

Long-term out of use: Close the window and lock it, and cover the sliding rail with a dust cover.

Professional maintenance

Cycle: Perform airtightness test every 3 years (using the pressure difference method, air leakage ≤1.5 m³/m·h when the pressure difference is 50 Pa).

Repair: When replacing the broken glass of Aluminum Sliding Glass Windows, it is necessary to refill the butyl glue + polysulfide glue double-pass seal.
