Durable Aluminum Curtain Wall for Exterior Use

Durable Aluminum Curtain Wall for Exterior Use

$75-150 /Square Meter

option
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: shenzhen

Description

Product Attributes

Model No.: WD-CWL008

Brand: Wendou

Variety: Curtain Walls

After-sales Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Return And Replacement

Application Scenario: Villa, Hotel, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Kitchen, Other, Courtyard, Farmhouse, Exterior, Hall

Place Of Origin: China

Screen Netting Material: Aluminum Alloy/Stainless steel/Fiberglass

Main Material: Aluminum alloy+Glass+Accessories

Glass: Tempered glazing+Laminated glazing+Low-E glazing+Reflective glazing+Frosted glazing

Color: Customized based on your needs

Hardware: Germany brand/Chinese brand/American brand

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

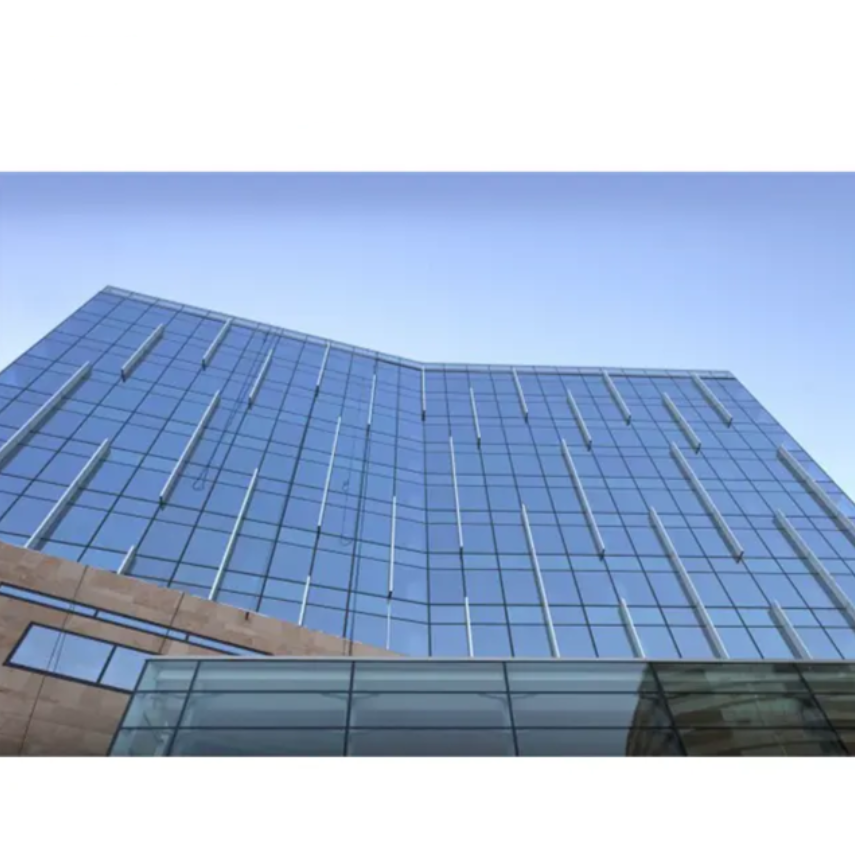

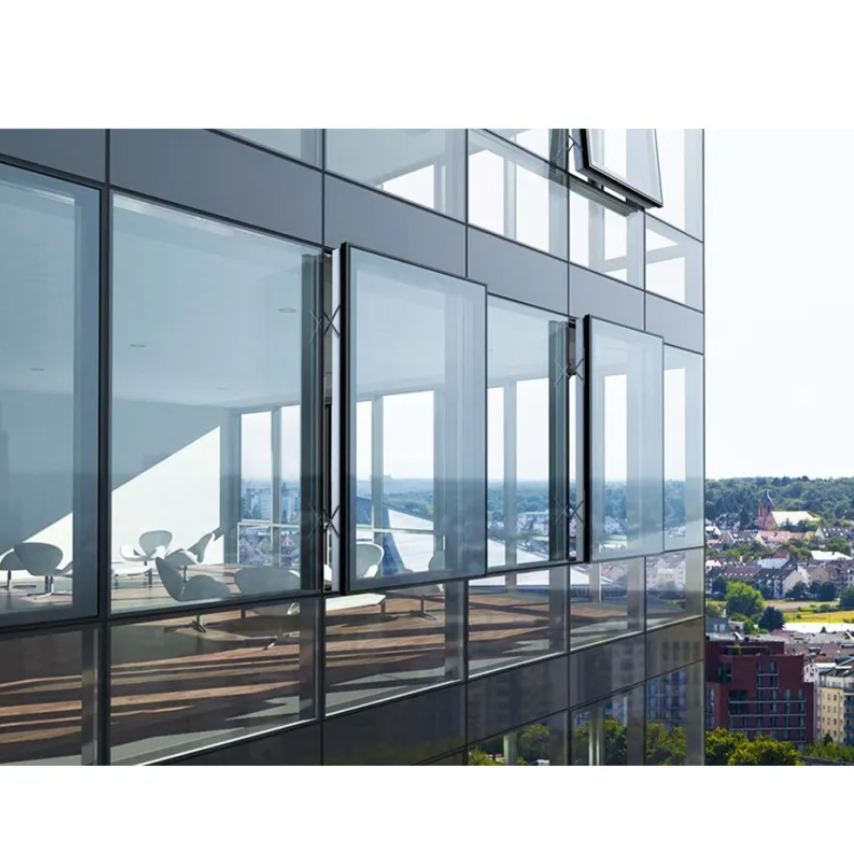

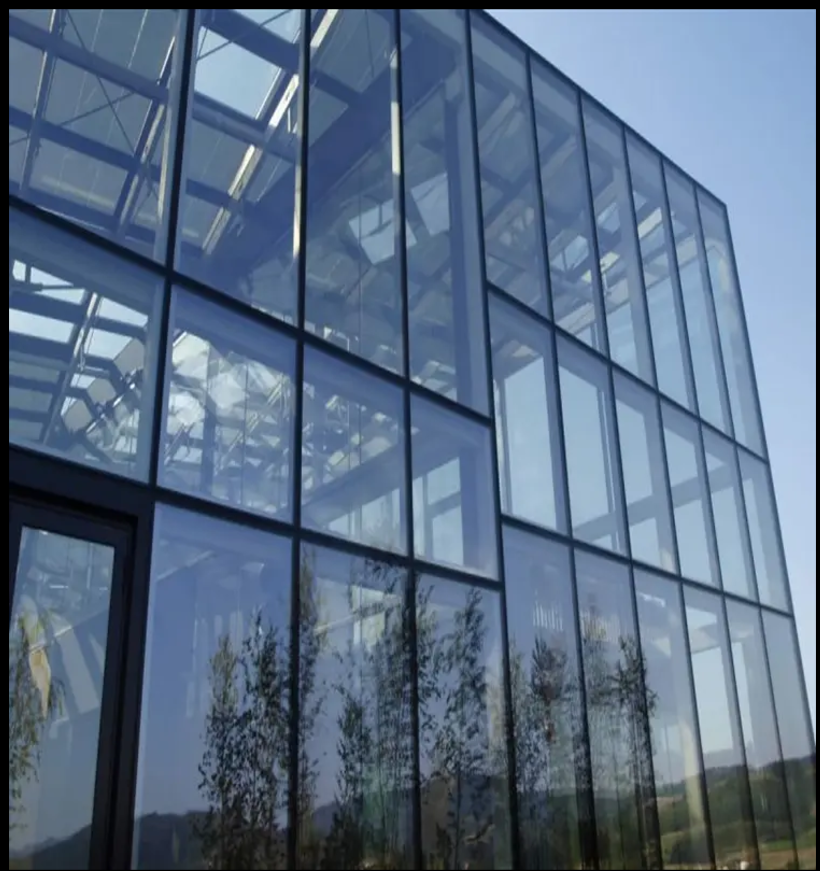

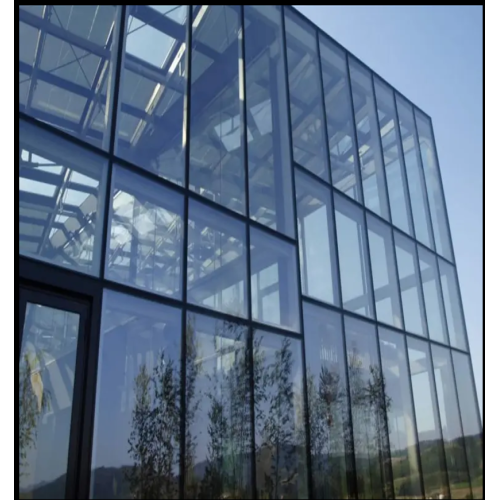

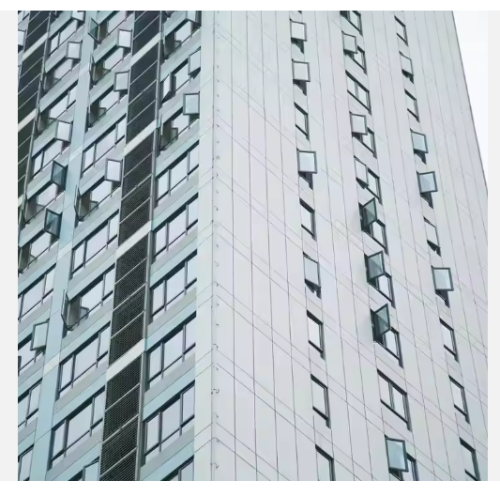

Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/M

Certificate: NFRC/CE/AS2047

HS Code: 7610100000

Port: shenzhen

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

Durable Aluminum Curtain Wall for Exterior Use is a building enclosure system with high-strength aluminum alloy profiles as the skeleton and weather-resistant aluminum plates or special glass as the panels. It is designed for long-term exposure to outdoor environments.

Core features

Ultra-long durability: Fluorocarbon sprayed aluminum plates have weather resistance of more than 25 years, excellent UV resistance and corrosion resistance, and the surface coating does not fade for 10 years. For example, the aluminum curtain wall used in the Shanghai Tower has achieved 30 years of maintenance-free through 15 surface treatment processes.

Lightweight and high-strength: The density of aluminum alloy is only 1/3 of that of steel, and the weight of 3mm thick aluminum plates is about 8kg per square meter, which is more than 70% lighter than traditional stone curtain walls. At the same time, the tensile strength is ≥205MPa and the yield strength is ≥175MPa.

Energy-saving and high-efficiency: The thermal insulation profiles are combined with hollow Low-E glass, and the heat transfer coefficient (K value) can be as low as 1.2W/(m²·K), which saves more than 30% energy compared to ordinary curtain walls.

Design flexibility: supports a variety of shapes such as flat, curved, and special shapes to meet the needs of architectural aesthetics. For example, the Sydney 200 George Street project uses parametric customized aluminum panels to achieve complex geometric facade effects.

Application scenarios

High-rise and super-high-rise buildings: such as the Burj Khalifa in Dubai, which uses a unitized aluminum curtain wall system with a wind pressure resistance of 5.0kPa to meet the safety needs of super-high-rise buildings.

Commercial complexes: such as Beijing International Trade Phase III, through the combination of aluminum panels and glass curtain walls, natural lighting and heat insulation are balanced, reducing air conditioning energy consumption by 20%.

Cultural and public buildings: such as the Louvre Pyramid, which uses a combination of transparent glass and aluminum profile frames to embody a sense of technology and artistry.

Industrial buildings: such as the Tesla Super Factory, which uses aluminum panel curtain walls to meet the needs of large spans and rapid construction, while the corrosion resistance adapts to industrial environments.

Advantages of use

Structural safety: Aluminum Frames For Curtain Wall consists of columns, beams, and adapters. The wall thickness of the profile is ≥3mm. The cross-section is optimized through finite element analysis and can withstand a typhoon of level 12 (wind speed ≥32.7m/s).

Functional integration: Aluminum Windows For Curtain Wall uses a thermal insulation profile with an air tightness of level 8, a water tightness of ≥700Pa, and a wind pressure resistance of ≥5.0kPa, taking into account ventilation and safety.

Environmentally friendly and sustainable: The recycling rate of Curtain Wall Aluminum is ＞95%, and carbon emissions are 40% lower than traditional materials. For example, the Dubai Museum of the Future uses 100% recycled aluminum profiles to help achieve carbon neutrality in buildings.

Low maintenance cost: The fluorocarbon coating on the surface of the aluminum curtain wall is self-cleaning, and it can be kept clean by washing with rainwater, and the maintenance cycle is extended to once every 5 years.

Maintenance strategy

Regular cleaning: Clean once every six months, using a neutral detergent to avoid scratching the coating.

Hardware inspection: Lubricate the hinges and lock points of the sashes every year, and replace aging sealing strips.

Structural inspection: Conduct air tightness and water tightness inspections of the curtain wall every 5 years, with a focus on checking the rust of the connection nodes.

Extreme weather response: Check for deformation of aluminum plates and cracking of sealants after typhoons, and repair them in time.
