Demountable Aluminum for Curtain Wall

$75-150 /Square Meter

Material	Aluminum
option
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: shenzhen

Description

Product Attributes

Model No.: WD-CWL010

Brand: Wendou

Variety: Curtain Walls

After-sales Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Return And Replacement

Application Scenario: Villa, Sports Venues, Hotel, Farmhouse, Courtyard, Leisure Facilities, Apartment, Office Building, Supermarket, Other, Kitchen, Warehouse, Hospital, School, Mall, Exterior, Entry

Place Of Origin: China

Screen Netting Material: Aluminum Alloy/Stainless steel/Fiberglass

Main Material: Aluminum alloy+Glass+Accessories

Glass: Tempered glazing+Laminated glazing+Low-E glazing+Reflective glazing+Frosted glazing

Color: Customized based on your needs

Hardware: Germany brand/Chinese brand/American brand

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

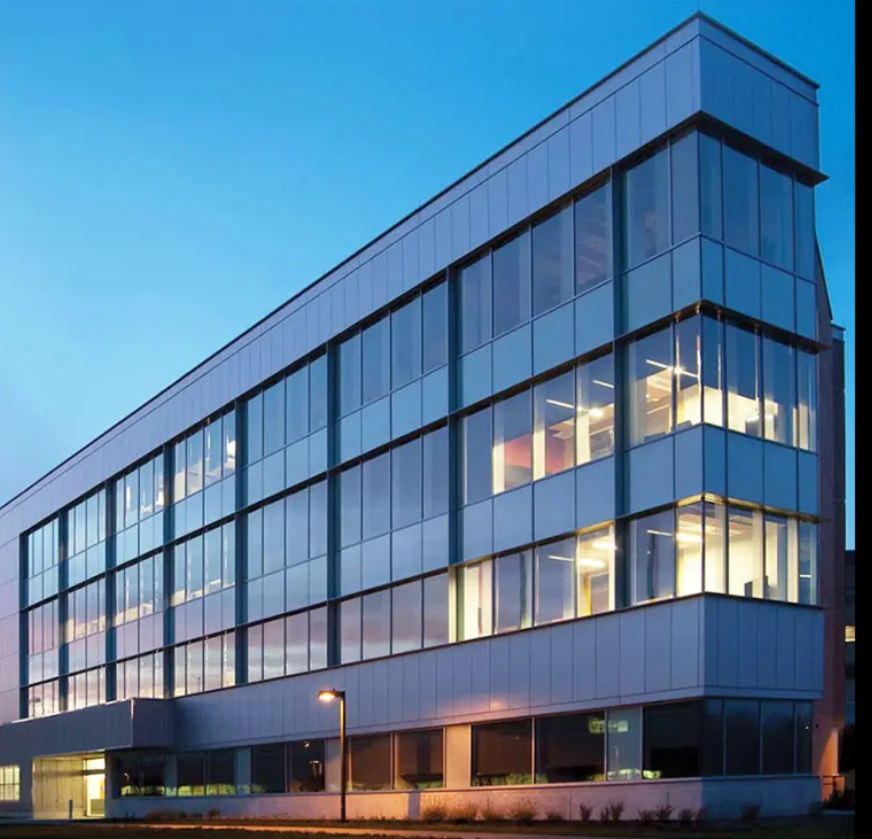

Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/M

Certificate: NFRC/CE/AS2047

HS Code: 7610100000

Port: shenzhen

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

Detachable Aluminum Curtain Wall is a modular building envelope structure, which uses an aluminum alloy frame and a detachable panel to achieve rapid installation, disassembly and reuse.

Curtain Wall Aluminum Core Data Features

Material and structure:

Aluminum alloy substrate: 6061-T6 or 6063-T5 high-strength aluminum alloy, tensile strength ≥290MPa, yield strength ≥240MPa, elongation ≥10%, taking into account both strength and lightness.

Modular design: The size of a single panel is usually 1200mm×2400mm, thickness 3-6mm, weight 15-30kg/㎡, and supports rapid disassembly and assembly.

Connection system: Using snap-on or bolted connection nodes, the installation efficiency is increased by more than 50%, and the labor cost is reduced by 30%.

Performance parameters:

Weather resistance: The fluorocarbon spray coating has a UV aging resistance of more than 20 years, and the salt spray test is ≥3000 hours, which is suitable for marine climate.

Fireproof performance: Meets A2 fireproof standards, fire resistance limit ≥1 hour, suitable for high-rise buildings.

Sound insulation and noise reduction: Double-layer hollow aluminum plate structure, sound insulation performance reaches RW=35-45dB, meeting office and residential needs.

Typical application scenarios of Aluminum Frames For Curtain Wall

Temporary buildings and event venues:

Exhibition venues: The exhibition hall uses detachable aluminum curtain walls, the construction period of a single venue is shortened to 7 days, and the material recovery rate reaches 95%.

Emergency medical facilities: This type of curtain wall is used on the facade, which can be built in 10 days and quickly disassembled.

Commercial and office space:

Shopping center: The mall atrium renovation project uses detachable curtain walls to achieve quarterly theme changes, and the passenger flow increases by 20%.

Co-working space: The modular curtain wall is used to increase the space reorganization efficiency by 70%, and the tenant satisfaction reaches 92%.

Cultural and public buildings:

Museums: The facade of the museum uses antique pattern aluminum plates to support the rapid scene switching of cultural exhibitions.

School: The gymnasium uses a removable curtain wall to achieve flexible conversion between teaching and activity modes.

Aluminum Curtain Wall Maintenance and Care

Daily Cleaning:

Frequency: It is recommended to clean once a quarter, and monthly inspections are required in coastal areas or industrial areas.

Method: Use a neutral detergent (pH value 6-8) and a soft brush, and control the water pressure at 0.2-0.3MPa to avoid high-pressure water guns damaging the coating.

Regular Inspection:

Connection nodes: Check the tightness of bolts and the aging of sealing strips every six months, and the replacement cycle is recommended to be 3-5 years.

Surface coating: Test the coating adhesion every year (cross-cut test), and if the shedding area exceeds 5%, local repair is required.

Emergency Treatment:

Scratch Repair: Scratches with a depth of ≤0.2mm can be treated with a special polishing paste, and deeper scratches need to be returned to the factory for spraying.

Partial Replacement: When a single panel is damaged, it can be replaced within 2 hours, reducing maintenance costs by 60%.

Suitable Purchasers

General Construction Contractor

Demand: Fast delivery and cost control. Detachable curtain walls shorten construction time by 30% and save 25% of labor costs, which is suitable for government public buildings and commercial real estate projects.

Commercial real estate developers:

Demand: spatial flexibility and brand renewal. Shopping centers, office buildings and other projects can achieve brand upgrades by replacing curtain wall panels, and the cost of a single renovation is reduced by 40%.

Event planning companies:

Demand: temporary construction and reuse. In scenes such as exhibitions and concerts, curtain wall modules can be reused more than 50 times, and the cost of a single use is reduced to 1/3 of that of traditional curtain walls.

Emergency management departments:

Demand: rapid response and recyclability. In scenes such as post-disaster reconstruction and temporary medical facilities, the curtain wall system supports 72-hour rapid deployment, and the materials are 100% recyclable.
