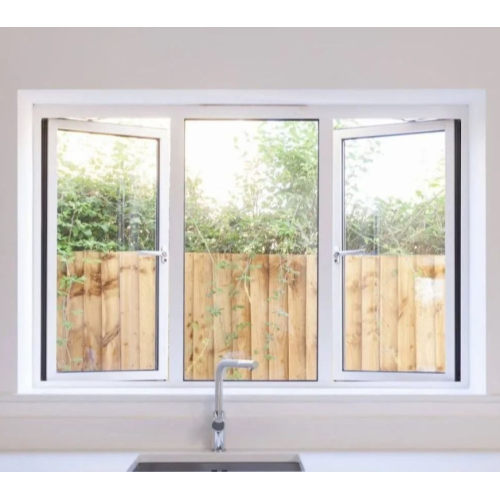

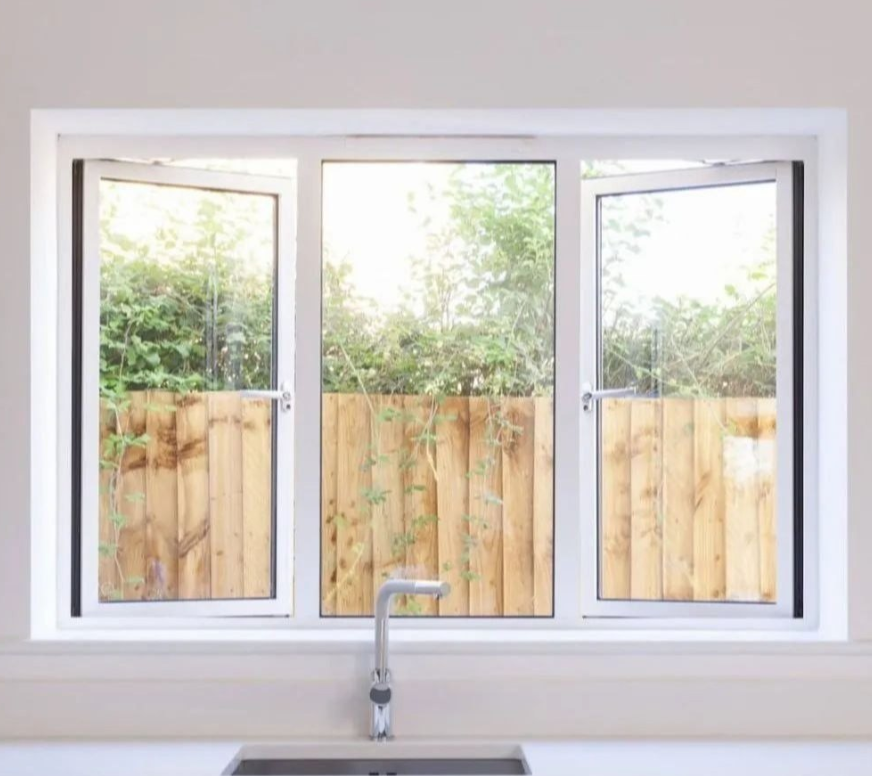

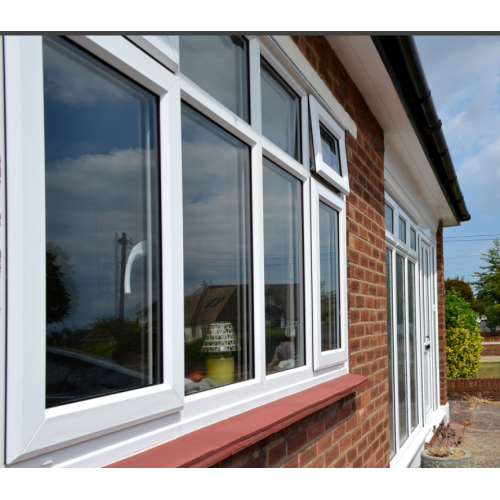

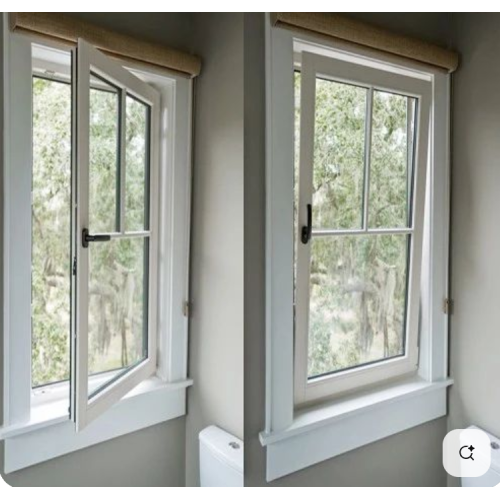

Home Security PVC Profile Casement Windows

$45-85 /Square Meter

Variety	Basement Windows
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,EXW,CIF
Min. Order: 1 Square Meter
Transportation: Ocean
Port: shenzhen

Description

Product Attributes

Model No.: WD-PCW0019

Brand: Wendou

Warranty Service: More Than 5 Years

After-sales Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts

Application Scenario: Hotel, Villa, Apartment, Hospital, School, Mall, Office Building, Workshop

Design Style: Modern, Contemporary, European, Asian, French, Chinese

Additional Functionality: Anti-Theft, Dust-Proof, Windproof, Heat Insulation, Insect Control, Soundproof, Invisible

Material: Pvc, PVC Profile+Tempered glass+Hardware

PVC Screen Netting Material: PVC/Stainless steel/Fiberglass

Main Material: PVC+Glass+Accessories

Glass: Tempered glazing+Laminated glazing+Low-E glazing+Reflective glazing+Frosted glazing

Color: Customized color based on your needs

Hardware: Germany brand/Chinese brand/American brand

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

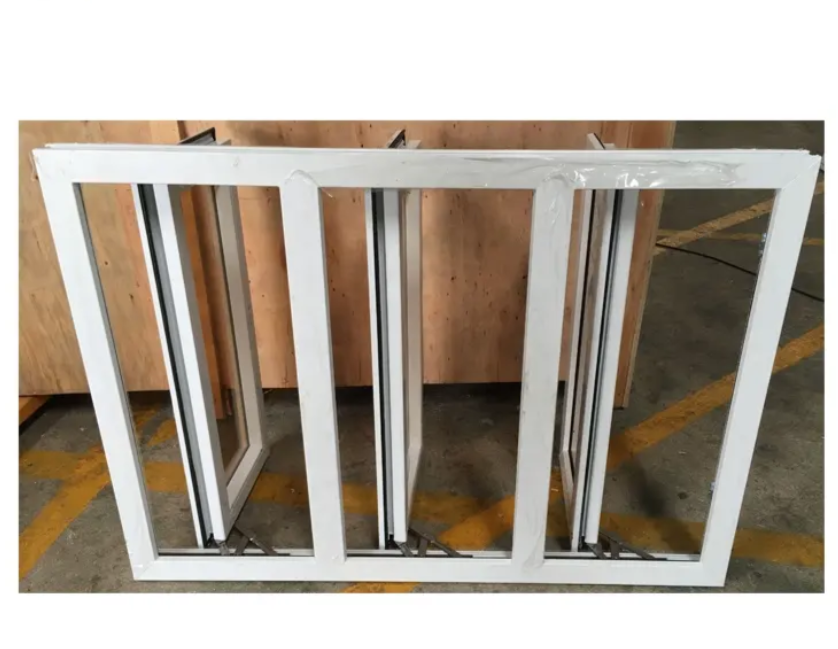

Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/ per month

Certificate: NFRC/CE/AS2047

HS Code: 7610100000

Port: shenzhen

Payment Type: L/C,T/T

Incoterm: FOB,CFR,EXW,CIF

Product Description

Home Security PVC Profile Casement Windows are a window system primarily constructed of unplasticized polyvinyl chloride (UPVC). Through a multi-chamber design, tempered glass, and the integration of high-strength hardware (such as multi-point locks and pry-resistant hinges), they achieve multiple functions: anti-theft, fire prevention, sound insulation, and energy saving.

1. Structural Components

UPVC profile frame: Features a six-chamber design with a wall thickness of 2.5-3.0mm, achieving impact strength that meets the Class A standard of GB/T 8814-2017.

Glass Configuration: Standard 5+12A+5 double-layer insulated tempered glass (with optional PVB interlayer or Low-E coating). Shattered glass forms small, blunt-angled particles, reducing the risk of personal injury.

Hardware: Multi-point locks (typically 5-7 points) + pry-resistant steel tongue + 304 stainless steel hinges, capable of withstanding 2000N of lateral force without deformation.

2. Material Advantages

Breakthrough in Anti-theft Performance

UPVC is inherently impact-resistant. Combined with steel lining reinforcement (1.5mm thick galvanized steel sheet embedded in the window frame), it withstands vandalism for over 30 minutes (far exceeding the 5 minutes of ordinary windows). For example, tests conducted by one brand showed that its PVC security windows can withstand repeated attacks from tools such as hydraulic pliers and crowbars without any displacement of the locking points.

Weather Resistance and Maintenance Costs of PVC Windows

UV Resistance: The addition of titanium dioxide and UV absorbers achieves a surface color fastness rating of Class 8 (ISO 105-B02 standard), with no noticeable fading after 10 years of use.

Corrosion Resistance: In a salt spray test (ASTM B117 standard), it exhibits no rust for 96 hours, making it suitable for coastal and industrially polluted areas.

Maintenance Costs: No paint or rust is required, requiring only annual water rinsing, resulting in a 50% reduction in lifecycle costs compared to Aluminum Alloy Windows.

Fire and Sound Insulation

Fireproofing: Certified GB 8624-2012 B1, self-extinguishing upon fire, and drip-free during combustion, increasing fire escape time.

Sound Insulation: Double-glazed glass with a UPVC cavity structure delivers a weighted sound insulation of 35-40dB, effectively blocking traffic noise (for example, a 25dB noise reduction for residences located near urban arterial roads).

3. PVC Profile Windows: Standardized Installation Process

Measurement Accuracy: A laser rangefinder is used, with an error control within ±1mm, ensuring a seamless fit between the window frame and the wall.

Waterproofing: Window sill slope ≥5%, outer edge caulking width ≥8mm, using neutral silicone weather-resistant adhesive with a waterproof lifespan of 15 years.

Securing: Expansion bolt spacing ≤500mm, with foam filling between the window frame and the wall, improving sealing by 30%.

User-Friendly Design

Micro-ventilation Function: The window sash opening gap can be adjusted to 3-5mm, meeting ventilation needs while preventing children from climbing.

Electric Opening System: An optional motor is available, and mobile app control is supported. The response time is less than 0.5 seconds, making it suitable for high-rise buildings or those with mobility impairments.

4. Custom PVC Windows Measurement and Selection

Measuring Tools and Steps

Tools: Laser rangefinder (accuracy ±0.5mm), level, tape measure.

Steps:

Measure the width of the window opening (minimum of the left, center, and right points).

Measure the height of the window opening (minimum of the top, center, and bottom points).

Check the verticality and horizontality of the window opening. If the error exceeds 5mm, pre-leveling is required.

Key Selection Parameters

Glass Thickness - 5+12A+5 (Double-layer) - Standard Residential Buildings

Number of Locking Points - 5-7 - Low-rise Buildings or Areas with Low Security

Wind Pressure Resistance - ≥3000Pa (Level 9) - High-rise Buildings or Typhoon-prone Areas

Airtightness - Level 8 (Highest Level) - Cold Northern Regions

5. Style Customization Requirements

Traditional Style Compatibility

English Georgian Style: Utilizes a 120mm wide frame, 45° beveled joints, and simulated wood grain transfer (such as the "Golden Oak" color scheme) to preserve the charm of historic architecture.

French Country Style: Utilizes a curved molding (R=50mm) and copper handles to recreate the romantic charm of 19th-century country villas.

Modern Minimalist Design

Narrow-sided Windows: Frame width ≤ 40mm, with 85% glass, creating a "frameless" effect, suitable for modern apartments or commercial spaces.

Concealed Hardware: Utilizes German concealed hinges, enabling a 110° opening angle while maintaining a clean appearance. High-Performance Special Edition

Hurricane-Grade Windows: Tested according to ASTM E1886/E1996 standards, they can withstand 5500Pa wind pressure (equivalent to a Category 17 typhoon), making them suitable for coastal high-rise buildings.

Acoustically Optimized Windows: Featuring triple-glazing with 5+12A+5+12A+5 glass, they achieve a weighted sound insulation rating of 45dB, making them ideal for locations near airports or in busy commercial districts.
