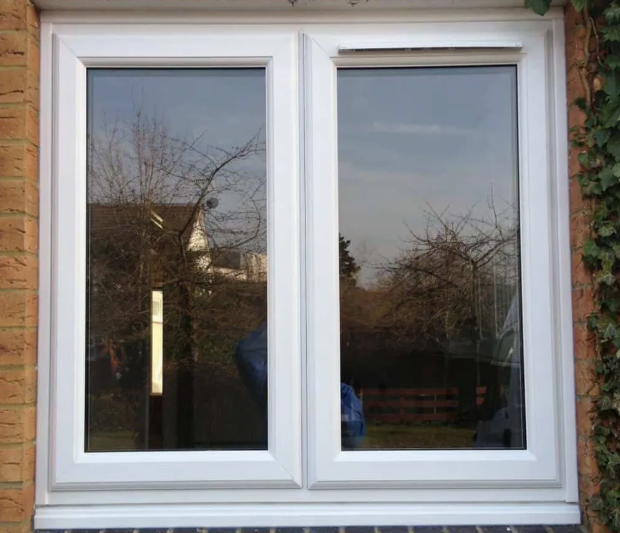

Double Swing PVC Profile Casement Window
$45-85 /Square Meter
Variety Contact Now Share:
- Payment Type: L/C,T/T
- Incoterm: FOB,CFR,CIF,EXW
- Min. Order: 1 Square Meter
- Transportation: Ocean
- Port: shenzhen
DescriptionProduct AttributesModel No.: WD-PCW0025
Brand: Wendou
Warranty Service: More Than 5 Years
Place Of Origin: China
Packaging & DeliverySelling Units: Square Meter Package Type: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate Picture Example:
Supply Ability & Additional InformationPackaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Productivity: 150000㎡/year
Transportation: Ocean
Place of Origin: Made in China
Supply Ability: 10000㎡/ per month
Certificate: NFRC/CE/AS2047
HS Code: 7610100000
Port: shenzhen
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Product DescriptionDouble Swing PVC Profile Casement Window1. Core StructureThe Double Swing PVC Profile Casement Window is a window type primarily made of unplasticized polyvinyl chloride (UPVC). Its core design features a two-way opening structure: the window sash is connected by top and bottom hinges, allowing it to swing inwards or outwards, creating flexible ventilation modes. This design combines the sealing performance of a casement window with the ventilation efficiency of a sliding window, achieving a balance between performance and aesthetics through the combination of multi-chamber PVC profiles and tempered glass.2. Appearance Features: Visual Unity of Simplicity and FunctionalityNarrow Frame DesignPVC Casement Windows typically have a profile width of 60-80mm and employ a multi-chamber structure (3-7 independent chambers). This ensures strength while reducing the visible thickness of the profile (≤50mm), increasing the glass ratio (up to 80% or more). For example, the 65 series window type achieves a "narrow frame + wide view" effect through a 5-chamber design, suitable for modern minimalist architectural styles.Two-way opening without a central pillar: The window sash can swing in both directions, and when open, there is no vertical central pillar to obstruct the airflow, forming a complete ventilation opening. Ventilation efficiency is 30% higher than traditional casement windows. Some models are equipped with retractable screens to meet both mosquito prevention and ventilation needs.Colors and Surface Treatments: Standard colors are white or beige, and custom colors (such as dark gray and coffee) are available from the RAL color chart. Surface treatments include lamination (low cost) and co-extrusion (scratch-resistant). Co-extrusion extends the lifespan by 5 years and is suitable for coastal or high-humidity areas.
3. Material Advantages: Synergistic Performance of PVC and Tempered GlassUPVC Profile Performance: Thermal Insulation: The multi-chamber structure forms an air insulation layer. Combined with the low thermal conductivity of PVC (0.16 W/(m·K)), the overall window heat transfer coefficient (U-value) can be as low as 1.3 W/(m²·K), resulting in energy savings of 40% compared to Aluminum Alloy Windows. Durability: The surface is coated with an anti-UV layer, passes a 6000-hour salt spray test, exhibits strong anti-aging properties, and has a service life of over 20 years.Environmentally Friendly: PVC Profile Windows are 100% recyclable, with 60% lower carbon emissions over their lifecycle compared to aluminum alloy windows, meeting green building standards.Tempered Glass Configuration:Safety Standards: Tempered glass is mandatory for single glass panes larger than 1.5㎡, offering 5 times the impact resistance and producing blunt-angled fragments upon breakage, reducing the risk of injury.Energy Saving Options: Optional Low-E double glazing (5mm+12A+5mm) is available, with a window U-value ≤1.8 W/(m²·K). Combined with PVC profiles, it prevents condensation by keeping the indoor surface temperature ≥17℃ in winter.Sound Insulation: Laminated glass (6mmPVB+12mm+6mm) can reduce noise by 10dB, suitable for buildings near airports or busy commercial areas.
4. Applicable Buildings: Flexibility Covering All ScenariosResidential BuildingsVillas/Townhouses: Large windows (maximum 3m x 2.5m) paired with stone or wood exterior walls, creating a classic European style.High-Rise Apartments: Small to medium-sized windows (1.2m x 1.5m) with double-glazed tempered glass, meeting wind pressure resistance and fire resistance requirements (e.g., Australian BCA standards).Commercial BuildingsHotels/Clubs: Narrow-frame design increases the glass ratio, enhancing indoor lighting and visual transparency.Schools/Hospitals: Antibacterial PVC surface treatment inhibits bacterial growth; child safety locks (opening limit ≤100mm) are optional.Special EnvironmentsCoastal Areas: Fire-resistant options tested to AS1530.8.1, capable of withstanding BAL-40 bushfires (compliant with AS3959-2009 standards).Cold Regions: Triple-glazed, double-cavity structure (Ug value ≤0.6 W/(m²·K)) with PVC profiles, reducing winter energy consumption by 35%.5. Customization Options: Modular design meets individual needsSize and Opening MethodCustom PVC Windows support customization of any size. Standard width ≤ 1.5m, customized width ≤ 3m, requiring a 5-10mm installation gap.Adjustable bidirectional opening angle (0°-45°) to suit different ventilation needs.Glass and Hardware SystemGlass Configuration: Optional single-layer tempered glass, Low-E insulated glass, or laminated glass to meet energy-saving, sound insulation, or safety requirements.Hardware System: Hinges with a load-bearing capacity ≥ 80kg/pane, and over 50,000 opening and closing cycles; handles can be equipped with a multi-point locking system (e.g., 12-point locking), improving airtightness by 30%.Function ExpansionConcealed Drainage: Integrated drainage holes at the bottom of the window frame prevent rainwater leakage.Security Grilles and Fences: Stainless steel security grilles or decorative fences can be added to enhance security.Intelligent Control: Optional electric opening and closing system, supporting remote control or mobile APP operation.
