White UPVC/PVC Profile Plastic Casement Window

$45-85 /Square Meter

Variety	Casement Windows
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: shenzhen

Description

Product Attributes

Model No.: WD-PCW0024

Brand: Wendou

Warranty Service: More Than 5 Years

Place Of Origin: China

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/ per month

Certificate: NFRC/CE/AS2047

HS Code: 7610100000

Port: shenzhen

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

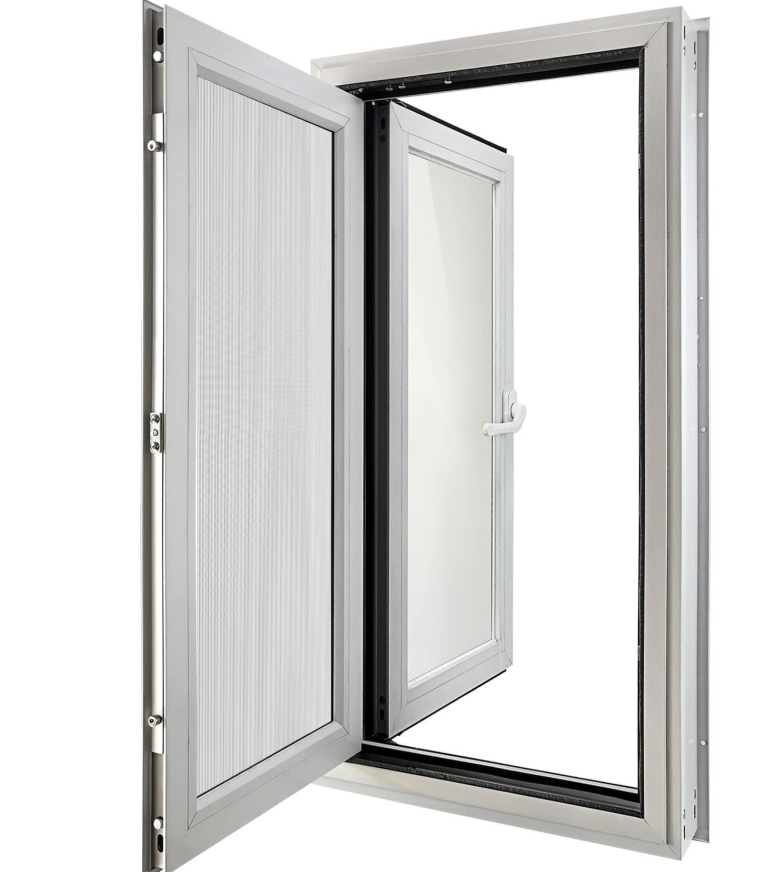

White UPVC/PVC Profile Plastic Casement Window

1. Appearance Features: A Balance of Minimalist Aesthetics and Functionality

Pure White Base Color

White UPVC/PVC Windows are predominantly white with a smooth, textureless surface. While other colors (such as beige, gray, and coffee) can be customized using the RAL color chart, white remains the mainstream choice due to its strong weather resistance, fade resistance, and compatibility with most architectural styles.

Narrow Frame Design

The profile width is typically 50-135mm. A multi-chamber structure optimizes strength, achieving a visual effect of "narrow frame + large glass." For example, the 65 series window uses a 5-chamber design, with the visible profile thickness meeting Class B standards, ensuring structural strength while increasing the glass ratio (up to 80% or more), enhancing indoor lighting.

Swept-Opening Structure Without a Central Column

The typical feature of a French casement window is its double-leaf opening without a vertical central column, forming a complete opening when opened. French Style PVC Casement Window offer 30% higher ventilation efficiency than ordinary casement windows. Some models are equipped with retractable screens, balancing mosquito prevention and ventilation needs.

2. Material Advantages: Performance Breakthrough of PVC Steel-Lined Composite Structure

Insulation Performance

Multi-chamber insulation layer: The profile features 3-7 independent chambers, with PVC windows forming an air insulation barrier. Combined with low thermal conductivity PVC material (thermal conductivity only 0.16 W/(m·K)), the overall window heat transfer coefficient (U-value) can be as low as 1.0 W/(m²·K), meeting passive building standards.

Case Study: The 65 series windows use a 5-chamber structure, reducing indoor heat loss by 45% in winter and reducing air conditioning energy consumption by 30% in summer.

Sealing Performance

Triple sealing strips: EPDM rubber sealing strips provide triple protection of air tightness, water tightness, and sound insulation. Air permeability ≤0.5 m³/(m²·h), water tightness reaches over 700Pa (equivalent to rainstorm-level waterproofing).

Data: In a 900Pa wind pressure test, the window frame deformation was ≤1.5mm, and there was no glass leakage.

Durability and Environmental Friendliness

Anti-aging Coating: The surface is coated with an anti-UV coating and has passed a 6000-hour salt spray test, making it suitable for coastal or high-humidity areas.

No Heavy Metal Additives: The raw materials for the profiles contain zero lead, cadmium, and other heavy metals, complying with RoHS environmental standards.

Recyclability: PVC material is 100% recyclable, with a lifecycle carbon emission 60% lower than Aluminum Alloy Windows.

3. Applicable Buildings: Wide Coverage from Residential to Commercial Spaces

Residential Sector

Villas/Townhouses: Large window sizes (maximum 3m × 2.5m) paired with stone or wood exterior walls, highlighting a classic European style.

High-Rise Apartments: Small to medium-sized window sizes (1.2m × 1.5m) with Low-E double-glazed windows, meeting energy-saving regulations while reducing noise (sound insulation performance of over 35dB).

Commercial Buildings

Hotels/Clubs: Narrow frame design increases the glass ratio, creating a transparent public space.

Schools/Hospitals: Antibacterial PVC surface treatment inhibits bacterial growth, meeting hygiene standards. Special Environments

Cold Regions: PVC Casement Windows can be equipped with a triple-glazed, double-cavity structure (Ug value ≤ 0.6 W/(m²·K)), ensuring an indoor surface temperature ≥ 17℃ in winter and preventing condensation.

Coastal Regions: Passes over 1000 hours of salt spray testing, exhibiting superior corrosion resistance compared to aluminum alloy.

4. Customization Options: Modular design meets individual needs

Size Customization: Supports customization of any size; standard profile length is 5.8-6.0m, which can be cut and spliced according to opening dimensions.

Example: A 2.4m wide opening can use two 1.2m windows with a 20mm opening gap between them.

Glass Configuration

Energy Saving Requirements: Low-E insulated glass (6mm + 12A + 6mm), overall window U-value ≤ 1.8 W/(m²·K).

Sound Insulation Requirements: Laminated glass (6mm PVB + 12mm + 6mm), improving noise reduction by 10dB.

Safety Requirements: Tempered glass (mandatory for single panes > 1.5㎡), offering 5 times the impact resistance.

Color and Surface Treatment: Standard colors are white/beige; custom colors (e.g., dark gray, coffee) are available from the RAL color chart.

Surface treatments include coating (low cost) and co-extrusion (scratch-resistant). Co-extrusion extends the lifespan by 5 years.

Hardware System: Hinges must have a load-bearing capacity ≥ 80kg/pane and withstand over 50,000 opening and closing cycles (equivalent to 10 openings and closings per day for 13 years).

Handles can be equipped with a multi-point locking system (e.g., 12-point locking), improving airtightness by 30%.

5. Cost and Maintenance: Long-Term Cost-Effectiveness Advantage

Initial Cost: Mid-range products are higher than ordinary aluminum alloy windows but lower than high-end system windows.

Maintenance Cost: Sealing strips need replacement every 5 years; no painting or anti-corrosion treatment required.

Life Cycle Cost: Energy savings can cover 120% of the initial investment difference over a 20-year lifespan.

White UPVC/PVC Profile Plastic Casement Windows, with their minimalist design, superior performance, and flexible customization options, are a preferred choice for modern architecture, balancing aesthetics and functionality. Their adaptability has been proven in global markets, from cold Northern Europe to tropical Southeast Asia, and from residential to commercial spaces. When selecting a window, key considerations should be given to glass configuration, hardware systems, and color treatments to achieve a balance between performance and cost.
