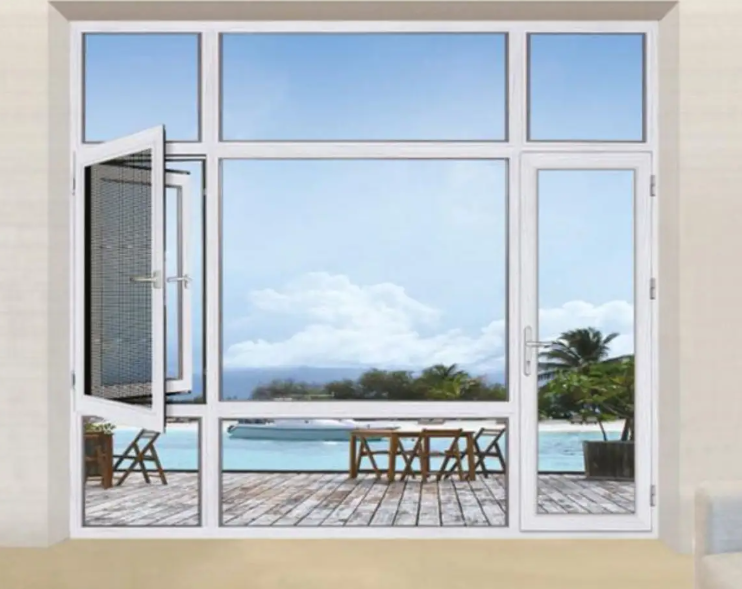

Australian Standard Hurricane Impact Vinyl Casement Window

Australian Standard Hurricane Impact Vinyl Casement Window

$45-85 /Square Meter

Contact Now

Payment Type: L/C,T/T
Incoterm: CFR,CIF,FOB,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: shenzhen

Description

Product Attributes

Model No.: WD-PCW0020

Brand: Wendou

Warranty Service: More Than 5 Years

Place Of Origin: China

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/ per month

Certificate: NFRC/CE/AS2047

HS Code: 7610100000

Port: shenzhen

Payment Type: L/C,T/T

Incoterm: CFR,CIF,FOB,EXW

Product Description

Australian Standard Hurricane Impact Vinyl Casement Window is a window system specifically designed to withstand extreme weather conditions such as hurricanes and strong winds. It must comply with Australian Building Codes AS2047 (Window and Door Performance Standard) and AS2208 (Safety Glass Standard).

1. Core Requirements

Wind Pressure Resistance:The window frame and glass must withstand extreme wind pressure (typically ≥4000Pa) without deformation or breakage.

Impact Protection:Utilizes impact-resistant glass (such as laminated or tempered glass) to withstand impacts from flying debris (such as a 9kg diameter piece of wood traveling at 50km/h).

Water Tightness:Passes a high-pressure water jet test (simulating heavy rain) to ensure no leakage.

2. PVC Casement Windows Appearance and Construction

Casewing Design:The window sash is hinged to one side of the frame and can open inwards or outwards (usually outwards), with an opening angle of up to 90° for easy ventilation and cleaning.

The window sash edges are rounded to reduce the risk of collisions and enhance aesthetics.

Minimalist Frame: The window frame width is typically 60-80mm, with a narrower design (e.g., 45mm) available to maximize glass area and improve light transmission.

Surface finishes include wood grain transfer (e.g., walnut, oak) or solid color coatings (white, gray), suitable for various architectural styles.

Hardware System: Multi-point locking hinges (3-5 locking points) ensure a tight fit between the window sash and frame when closed, improving wind pressure resistance and security.

Folding handle design, hidden within the window frame when open, saves space.

3. Waterproof PVC Profile Casement Window Material Type

Frame Material: Vinyl/PVC: Made of unplasticized polyvinyl chloride (uPVC), formed into a multi-cavity structure (typically 6 cavities) through co-extrusion. It has low thermal conductivity (0.16W/(m·K)), strong corrosion resistance, and can adapt to high-humidity coastal environments without surface treatment. **Steel Lining Reinforcement:** A galvanized steel lining (1.2-1.5mm thick) is embedded inside the window frame, enhancing overall rigidity and providing wind pressure resistance up to 4500Pa.

Glass Configuration:

Laminated Glass:Composed of two layers of 5mm tempered glass with a 0.76mm PVB interlayer, offering five times the impact resistance of ordinary glass. In the event of breakage, glass fragments adhere to the interlayer, preventing shards from flying and causing injury.

Low-e Coating:Optional low-emissivity coated glass reflects infrared radiation, reducing air conditioning load; U-value can be as low as 1.8W/(m²·K).

Sealing System:

EPDM Sealing Strip:Weather resistant (-40℃ to +70℃), airtightness up to Class 8 (GB/T 7106-2008), watertightness conforming to Australian AS1288 standard (Class 3).

Drainage Channel Design:Sloping drainage holes with dust covers are located at the bottom of the window frame to prevent rainwater backflow.

4. Applicable Regions and Building Types for PVC Windows

Climate Adaptability:

Hurricane-prone areas:Such as Queensland and the Northern Territory in Australia, requiring compliance with the "Hurricane Zone" rating requirements in AS2047.

Coastal areas:PVC material is resistant to salt spray corrosion, suitable for coastal cities such as Sydney and Melbourne.

High temperature and humidity environments:Vinyl frames do not deform or mold, suitable for tropical regions such as Darwin.

Building types:

Residential buildings:Bedrooms and living rooms in villas and apartments, balancing ventilation and safety needs.

Commercial buildings:Public areas in hotels and resorts, enhancing views with large-format glass.

Public facilities:Emergency exits in schools and hospitals, meeting fire resistance (Class A) and impact resistance requirements.

5. Functions

Hurricane protection:Laminated glass can withstand impacts from debris traveling at 200 km/h, preventing wind pressure from deforming the window frame or shattering the glass.

A multi-point locking system ensures the window sashes do not detach under extreme wind conditions, protecting the safety of occupants.

Security and Anti-theft: The combination of tempered glass and PVB interlayer increases the difficulty of breaking windows by 3 times. Combined with multi-point locking, it achieves RC2 anti-theft performance (European standard).

Bulletproof glass (e.g., 7mm + 1.52mm PVB + 7mm) is available as an option, suitable for high-risk areas.

Energy Saving and Environmental Protection: Low-e coated glass can reduce air conditioning load by 30%-40%, resulting in annual energy savings of approximately AUD 200-300 (for a 100㎡ residence).

PVC frames are 90% recyclable, and their carbon emissions during production are 35% lower than aluminum alloys.

Noise Control: Laminated glass structures can reduce noise by 25-30dB, making them suitable for buildings near airports and highways.

6. Market Cases and Data Support

Australian Market: 2024 data shows that hurricane-protected windows accounted for 40% of the residential window market, with vinyl casement windows accounting for 25%, representing an annual growth rate of 10%.

Cost-effectiveness: Taking an 80㎡ house as an example, installing this type of window can reduce annual insurance costs by about 15% (due to reduced risk of damage from hurricanes), and the investment payback period is about 5-7 years.
