House Vinyl Windows Double Glazed Insulated PVC Windows

House Vinyl Windows Double Glazed Insulated PVC Windows

$45-85 /Square Meter

Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: shenzhen

Description

Product Attributes

Model No.: WD-PCW0021

Brand: Wendou

Warranty Service: More Than 5 Years

Place Of Origin: China

Material: Pvc

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/ per month

Certificate: NFRC/CE/AS2047

HS Code: 7610100000

Port: shenzhen

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

House Vinyl Windows Double Glazed Insulated PVC Windows

1. Definition and Core Characteristics

House Vinyl double-glazed insulated PVC windows are a modern window system integrating energy saving, sound insulation, waterproofing, and weather resistance. Its core design includes:

Double-glazed structure: Consists of two panes of glass (typically 4-6mm thick) separated by a 6-12mm insulated spacer filled with air or an inert gas (such as argon), forming a highly efficient thermal barrier.

PVC frame: Utilizes unplasticized polyvinyl chloride (uPVC) profiles, employing a multi-cavity design (6-8 cavities) to reduce heat conduction, and reinforced with steel reinforcement to enhance wind pressure resistance.

Sealing system: EPDM sealing strips combined with concealed drainage holes ensure water tightness (up to Class 3) and air tightness (Class 8).

2. Exterior Structure

Window Type Design:

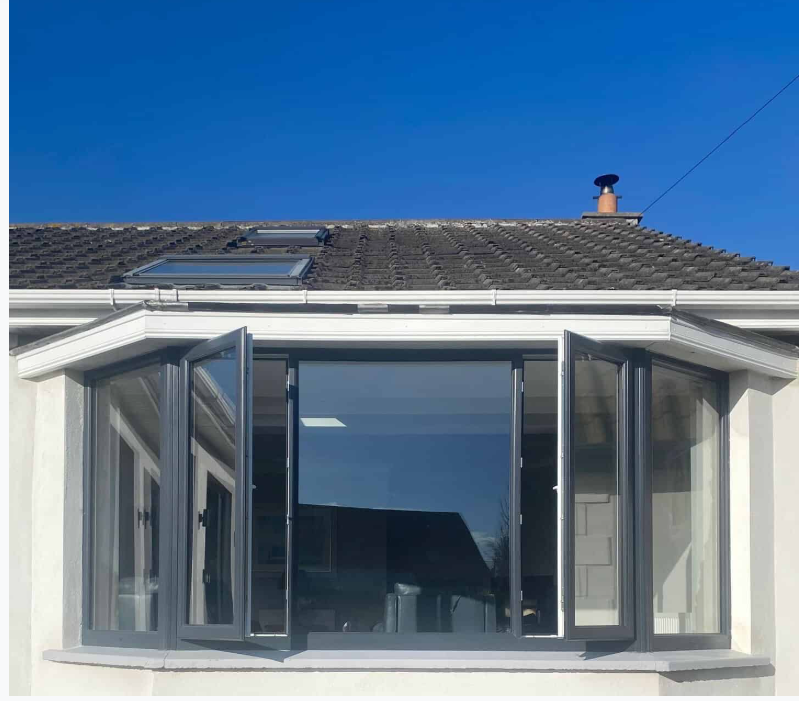

Casement: The window sash is fixed to the window frame by hinges and can open inwards or outwards (outward opening provides better rain protection). The opening angle reaches 90°, suitable for scenarios requiring high ventilation.

Sliding: The window sash slides along a horizontal track, saving space and suitable for balconies or narrow areas.

Fixed: Cannot be opened; used for decoration or lighting, often used in combination with casement/sliding windows.

Frame Details:

Narrow Frame Design: Window frame width can be as low as 45mm, maximizing glass area and improving visual transparency between indoors and outdoors.

Rounded Corners: The window sash edges are rounded to reduce the risk of collision and enhance aesthetics.

Colors and Textures: Supports wood grain transfer (such as walnut, oak) or solid color coatings (white, gray), adapting to various architectural styles.

Hardware System:

Multi-Point Locking Hinges: Casement windows use 3-5 locking points to ensure a tight fit between the window sash and the window frame when closed, improving wind pressure resistance and anti-theft performance. Folding Handle: Concealed within the window frame when open, saving space.

Anti-Pry Lock: Sliding windows are equipped with an anti-pry device to prevent the window sash from being forcibly pushed open.

3. PVC Windows Material Types

Frame Material:

uPVC Profile: Formed through co-extrusion into a multi-cavity structure, with a thermal conductivity of 0.16 W/(m·K), strong corrosion resistance, and suitable for high-humidity coastal environments without surface treatment.

Steel Reinforcement: A galvanized steel lining (1.2-1.5 mm thick) is embedded inside the window frame, improving overall rigidity and providing wind pressure resistance up to 4500 Pa.

Glass Configuration:

Double Insulating Glass: Standard configuration is 5 mm + 12 mm air gap + 5 mm, with optional triple glazing and double cavity structure (U-value ≤ 1.0 W/(m²·K)).

Low-e Coating: The glass surface is coated with a low-emissivity coating that reflects infrared rays, reducing air conditioning load; U-value can be as low as 1.8 W/(m²·K). Tempered Glass Treatment: The compressive stress on the glass surface is ≥90MPa, forming small, obtuse-angled particles upon breakage, meeting ANSI Z97.1 safety standards.

Sealing and Drainage:

EPDM Sealing Strips: Weather resistant (-40℃ to +70℃), airtightness grade 8, watertightness meets AS1288 standards.

Concealed Drainage Holes: An inclined drainage channel is installed at the bottom of the window frame, with a dust cover to prevent rainwater backflow.

4. PVC Profile Windows: Applicable Regions and Building Types

Climate Adaptability:

Temperate and Frigid Zones: Such as Canada and Northern Europe, double-glazed windows and Low-e coating can reduce heating load by 30%-40%, suitable for harsh winter environments.

Tropical and Subtropical Zones: Such as Northern Australia and Southern United States, PVC material is resistant to salt spray corrosion, suitable for high-humidity coastal environments.

Windy Regions: Steel reinforcement and multi-point locking systems can withstand wind pressures exceeding 4000Pa, suitable for hurricane-prone areas.

Building Types:

Residential Buildings: Bedrooms and living rooms in villas and apartments, balancing ventilation, lighting, and energy efficiency.

Commercial Buildings: Public areas in hotels and resorts, enhancing views with large-format glass.

Public Facilities: Emergency exits in schools and hospitals, meeting fire safety (Class A) and impact resistance requirements.

5. Custom PVC Windows Functions

Energy Saving and Environmental Protection:

Optimized Thermal Performance: Double-glazed configurations can achieve a U-value as low as 1.0 W/(m²·K), reducing annual energy costs by approximately AUD 200-300 (for a 100㎡ residence).

Material Sustainability: PVC frames are 90% recyclable, and their carbon emissions during production are 35% lower than aluminum alloys.

Sound Insulation and Comfort:

Noise Reduction: Double-glazed structures can reduce noise by 25-30 dB, suitable for buildings near airports and highways.

Improved Airtightness: EPDM sealing strips reduce air infiltration, preventing cold air penetration and condensation.

Safety and Protection:

Anti-theft Performance: Tempered glass and a multi-point locking system increase the difficulty of breaking windows by 3 times, achieving an RC2 anti-theft rating.

Impact Resistance: Optional laminated glass (PVB interlayer) protects against impacts from flying debris, suitable for hurricane-prone areas.

Weather Resistance and Maintenance:

Corrosion Resistance: PVC material is resistant to salt spray and acid rain, with a lifespan of over 30 years.

Low Maintenance Costs: No painting or anti-corrosion treatment is required; cleaning simply requires wiping with a damp cloth.
