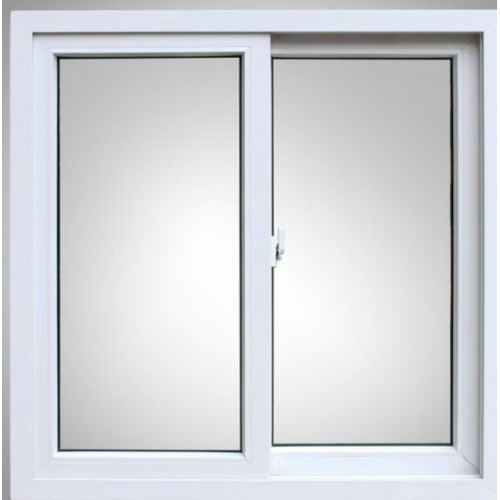

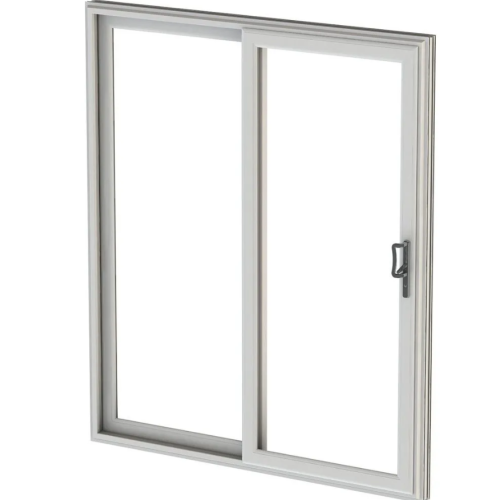

Luxury UPVC Double Glazed Window

$45-85 /Square Meter

Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-PVCS013

Brand: Wendou

Warranty Service: More Than 5 Years

Place Of Origin: China

Border Material: Plastic

Material: Pvc, PVC Profile+Tempered glass+Hardware

PVC Screen Netting Material: PVC/Stainless steel/Fiberglass

Main Material: PVC+Glass+Accessories

Glass: Tempered glazing+Laminated glazing+Low-E glazing+Reflective glazing+Frosted glazing

Color: Customized color based on your needs

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

Luxury UPVC Double Glazed Windows are a high-performance window and door system featuring UPVC (unplasticized polyvinyl chloride) as the main frame material and double-glazed insulating glass. UPVC is treated through a special process to remove the plasticizers found in traditional PVC, resulting in enhanced rigidity, weather resistance, and chemical stability. Double-glazed windows, on the other hand, utilize a hollow layer (typically filled with an inert gas) to achieve superior thermal and acoustic insulation. This combination ensures industry-leading thermal insulation, noise reduction, and airtightness, while also meeting the demands of modern architecture for environmental friendliness, energy efficiency, and longevity.

1. PVC Sliding Windows: Minimalist Lines

UPVC window frames utilize a one-piece molding process, resulting in a smooth, seamless surface and clean, streamlined lines that seamlessly blend seamlessly into architectural styles such as modern minimalist, Nordic, and industrial. Frame colors are available through lamination technology, including premium colors like matte white, space gray, and champagne gold. These colors are long-lasting, fade-resistant, and UV-resistant. Narrow Bezel Visual Effect

By optimizing the window frame structure, some high-end models achieve an extremely narrow bezel design (e.g., a frame width of only 30-50mm). This maximizes the glass ratio, improves indoor lighting efficiency, and creates a sense of "panoramic vision" transparency, making it suitable for high-end residences such as villas and large apartments.

Concealed Hardware System

Hardware accessories (such as hinges and locks) are recessed and flush with the window frame, eliminating the aesthetic impact of traditional exposed hardware and enhancing theft protection. Customized hardware color matching is also available, allowing you to choose the same color as the window frame or trendy colors such as rose gold and gunmetal gray.

2. Design Advantages: Comprehensively upgraded performance and functionality

Superior Thermal Insulation

UPVC material characteristics: Low thermal conductivity (only 1/1250 of aluminum alloy), effectively blocking heat transfer between indoor and outdoor spaces. Double-glazed structure: The hollow layer (typically 12-20mm) is filled with an inert gas such as argon. Combined with warm-edge spacers, this further reduces heat conduction, resulting in a K-value (heat transfer coefficient) of as low as 0.8-1.5W/(m²·K) across the entire window, far exceeding national energy-saving standards.

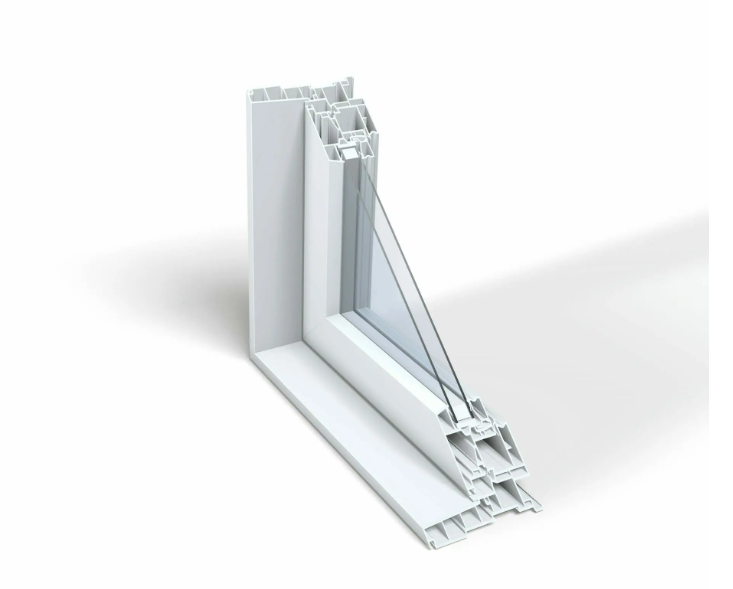

Multi-chamber sealing design: The window frame utilizes a multi-chamber structure, combined with automotive-grade EPDM sealing strips, to create a multi-layered airtight barrier, reducing heat loss by over 50% in winter and air conditioning energy consumption by over 30% in summer.

Excellent sound insulation

Double-glazed sound insulation: The hollow layer effectively blocks mid- and high-frequency noise (such as traffic and human voices). Laminated glass (e.g., 5+0.76PVB+5) further absorbs low-frequency noise (such as airplanes and trains). The total sound insulation across the entire window can reach 35-40dB, creating a tranquil indoor environment. Sealed Structure for Noise Reduction: The sealing strip forms an elastic seal with the window frame, reducing the path for sound waves. This design is particularly suitable for areas with severe noise pollution, such as those near streets, airports, and high-speed rail lines.

Weather-Resistant and Low-Maintenance

Corrosion Resistance: UPVC is impervious to acid rain and salt spray, making it suitable for coastal areas or areas with high humidity.

Aging Resistance: The addition of antioxidants and UV absorbers ensures a window frame lifespan of over 30 years without deformation, cracking, or fading.

Easy Cleaning: The smooth surface resists dust accumulation and can be kept clean with just clean water. Maintenance costs are only one-fifth of those of wooden or aluminum alloy doors and windows.

Eco-Friendly and Energy-Saving: Eco-friendly PVC Sliding Windows

Recyclable: UPVC is 100% recyclable, reducing construction waste.

Energy-Efficient Certification: Most high-end models are Passive House certified (such as PHI), meeting green building standards and helping projects achieve international environmental ratings such as LEED and BREEAM.

3. Type Differences: Customized PVC Sliding Windows can meet diverse building needs.

Classification by Opening Method:

Casement Windows: Offer excellent sealing, suitable for cold northern regions; inward-opening models facilitate cleaning, while outward-opening models minimize interior space.

Sliding Windows: Easy to operate, space-saving, suitable for humid southern regions; however, sealing is slightly inferior to casement windows.

Top-hung Windows: Open with a top hinge, allowing ventilation on rainy days while preventing rainwater intrusion, suitable for humid areas such as kitchens and bathrooms.

Smart Electric Windows: Integrated sensors and motors enable remote control and automatic closing based on wind and rain, enhancing living convenience.

Classification by Glass Configuration:

Double-glazed insulating glass: Basic configuration, meeting daily sound insulation and thermal insulation needs.

Triple-glazed insulating glass: Improves sound insulation and thermal insulation by 50%, suitable for extremely cold or noisy environments.

Low-E Glass: Coated with a low-emissivity coating, it reflects infrared rays, reducing heat loss while allowing visible light to pass through, balancing daylighting and energy savings. Laminated Glass: PVB film sandwiched between two layers of glass provides safety and explosion-proofing, while also providing enhanced sound insulation.

By Design Style

Modern Minimalist: Narrow frames, large glass, and concealed hardware are ideal for high-end urban residences.

Retro European: Thicker window frames with imitation wood grain coating are suitable for villas, estates, and other buildings.

Curved Special-Shaped Windows: Curved window frames are created using a heat-bending process, and combined with round or oval glass, they enhance the architectural aesthetic.

4. Suitable Building Type: Ideal for high-end residential and commercial spaces

High-end Residences

Villas/Large Flats: Large floor-to-ceiling windows, combined with narrow frames and triple-glazing, enhance the sense of airiness and luxury.

Passive House: Ultra-low energy consumption (e.g., K value ≤ 0.8W/(m²·K)) meets passive building standards and reduces energy dependence.

Street-facing Residences: Double-glazed + laminated glass effectively isolates traffic noise and improves living comfort.

Commercial Buildings

Hotels/Office Buildings: Large glass curtain walls paired with UPVC window frames provide optimal daylighting and energy savings, reducing operating costs.

Schools/Hospitals: Excellent soundproofing provides a quiet environment for students and patients, while a sealed design prevents dust and germs from entering.

Retail Spaces: Customizable colors and shapes (such as curved windows and logo windows) enhance brand recognition and attract customers.

Specialty Environment Buildings

Coastal Areas: UPVC is resistant to salt spray corrosion, making it ideal for beachfront villas or resorts.

Altitude Areas: Triple-glazed windows with warm-edge spacers ensure stable indoor temperatures in winter.

Historic Building Renovations: Imitation wood-grain cladding and vintage hardware enhance performance while preserving traditional character.
