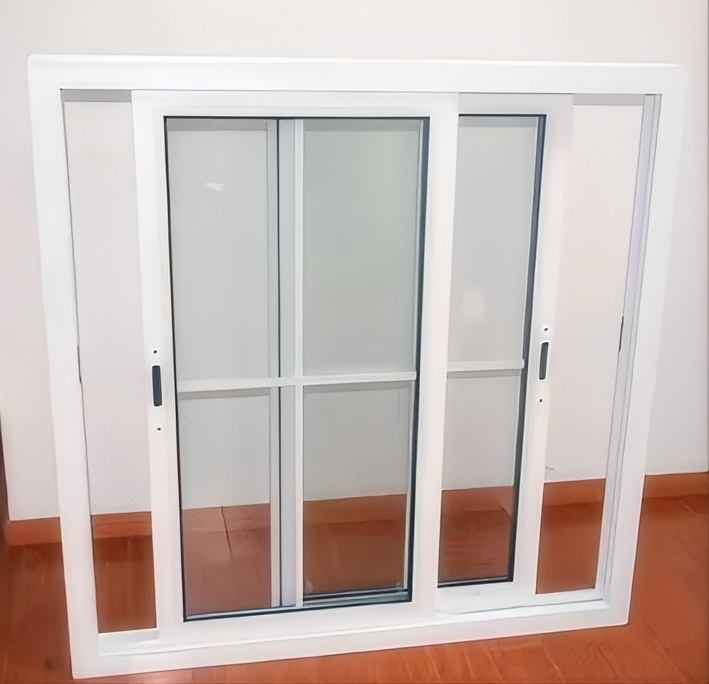

Latest Design Rainproof UPVC Sliding Windows

Latest Design Rainproof UPVC Sliding Windows

$45-85 /Square Meter

Variety	Sliding Windows
Contact Now

Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: shenzhen

Description

Product Attributes

Model No.: WD-PVCS018

Brand: Wendou

Warranty Service: More Than 5 Years

After-sales Service: Free Spare Parts, Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection

Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Workshop

Design Style: French, Chinese, European, Asian, Modern, Contemporary

Place Of Origin: China

Border Material: Plastic

Switch Way: Sliding

Additional Functionality: Windproof, Anti-Theft, Dust-Proof, Heat Insulation, Insect Control, Invisible, Soundproof

Material: Pvc, PVC Profile+Tempered glass+Hardware

PVC Screen Netting Material: PVC/Stainless steel/Fiberglass

Main Material: PVC+Glass+Accessories

Glass: Tempered glazing+Laminated glazing+Low-E glazing+Reflective glazing+Frosted glazing

Color: Customized color based on your needs

Hardware: Germany brand/Chinese brand/American brand

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: China

Supply Ability: 10000㎡/ per month

Certificate: NFRC/CE/AS2047

HS Code: 7610100000

Port: shenzhen

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CFR,CIF,EXW

Product Description

Latest Design Rainproof UPVC Sliding Windows are sliding window systems designed using unplasticized polyvinyl chloride (UPVC) and incorporating modern rainproof sealing technology.

1. Core Features:

Efficient Rainproofing: Through an optimized window frame structure and sealing system, rainwater penetration is effectively prevented, ensuring a dry interior.

Improved Airtightness: The multi-chamber profile and triple-sealing design achieve an airtightness rating of GB/T 7106 standard level 5 or higher, a 40% improvement over traditional structures.

Low Maintenance: UPVC is corrosion-resistant and age-resistant, requiring no regular painting or rust-proofing treatment, and boasts a service life of 20-30 years.

2. Appearance: A fusion of modern design and practicality

Narrow Frame Design:

The window frame width is compressed to 60-100mm, maximizing the visible glass area and enhancing indoor lighting.

Concealed drainage holes prevent rainwater backflow and maintain a clean appearance.

Diverse Surface Finishes:

Color Options: Offers over 200 RAL colors, including wood grain transfer printing (e.g., oak and walnut), simulating the look of natural materials.

Surface Texture: A co-extrusion process creates a 0.2-0.5mm wear-resistant layer, increasing scratch resistance threefold and making it suitable for frequent use.

Integrated Design:

The sash and frame utilize a built-in sliding rail system with a 15-20mm track depth, reducing sliding resistance to 30% of traditional structures and significantly improving opening and closing smoothness.

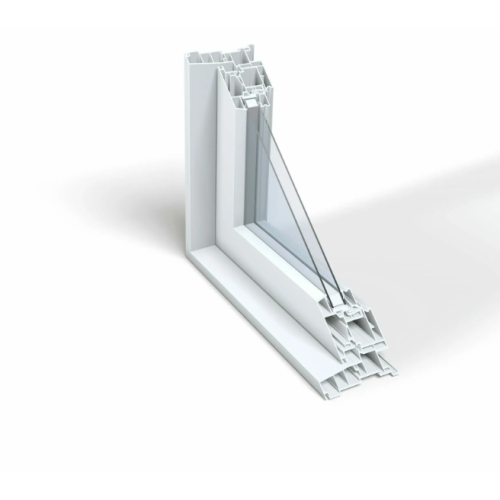

3. PVC Profile Windows Structure

Multi-Cell Profile:

UPVC profiles feature a 5-7-cell internal structure with a thermal break design, resulting in a thermal conductivity as low as 0.16 W/m·K, surpassing aluminum alloy's 1.8 W/m·K insulation performance.

Triple Sealing System:

First Sealing: EPDM rubber sealing strips surround the sash to prevent direct rainwater penetration. Secondary Seal: Silicone sealant is used between the window frame and sash to fill minor gaps and enhance airtightness.

Thirdary Seal: A concealed drain hole design, combined with a gutter, quickly drains rainwater out of the window, preventing backflow.

Drainage System Optimization:

The drain hole diameter is controlled to 3-5mm, ensuring efficient drainage while preventing insects from entering.

A sloped water deflector is installed at the bottom of the window frame to guide rainwater toward the drain hole, reducing the risk of stagnation.

4. Design Types: Meeting Diverse Scenario Needs

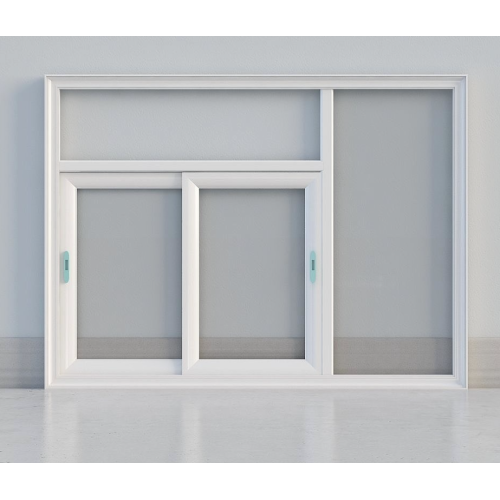

Basic Sliding Windows:

Single, double, or triple track designs are available, with an opening area of up to 50% of the window. Suitable for balcony partition doors, kitchens, and other applications.

Folding Sliding Windows:

The sash folds and retracts, allowing for an opening area of nearly 100%. Suitable for commercial spaces or public buildings requiring high ventilation.

Tilt-and-Slide Windows:

Combining tilt and slide functions, they support micro-ventilation mode to prevent strong winds. Suitable for bedrooms, children's rooms, and other applications. Lift-and-Slide Windows:

Motor-controlled window sash lift and lowering, with intelligent sensor support, suitable for high-rise buildings or spaces requiring barrier-free design.

5. Rainproof Material Advantages

UPVC Material Characteristics:

Weatherproof: UV-resistant and corrosion-resistant, suitable for coastal areas or high-humidity areas, with a wind pressure resistance of up to 5000 Pa (typhoon level 12).

Excellent Waterproofing: UPVC is a non-absorbent material with a water absorption rate of less than 0.1%, effectively preventing deformation or mold caused by rainwater penetration.

Glass Upgrades:

Double-layer insulating glass: Argon-filled design improves thermal insulation by 15% while reducing the risk of condensation.

Tempered glass: Impact resistance is five times that of ordinary glass, and even if broken, it forms blunt-angled particles, eliminating the risk of scratches.

6. Customized PVC Sliding Windows

Size Customization:

Non-standard sizes are available, with a minimum width of 300mm and a maximum height of 2400mm to accommodate special window shapes or unique architectural requirements. Color and Texture Customization:

Two-color co-extrusion technology is available, with the exterior window frame finished in dark gray (stain-resistant) and the interior in a light wood color (warm and inviting), catering to diverse decor styles.

Functional Upgrades:

Intelligent Control: Integrated electric opening and closing system, supporting remote control via a mobile app or voice assistant.

Security: Equipped with a multi-point locking system with up to eight locking points, achieving an RC2 security rating.

7. PVC Sliding Windows Application Scenarios

Residential Buildings:

Coastal Residences: UPVC's salt spray resistance makes it a top choice for marine climates. Paired with double-glazed insulating glass, it effectively resists wind and rain erosion.

Low-Energy Residential Buildings: Combined with triple-glazed, double-chambered glass and warm-edge spacers, it achieves Passive House standards (U-value ≤ 0.8 W/m²·K) and reduces air conditioning energy consumption by over 30%.

Commercial Buildings:

Office Buildings: The narrow frame design enhances the overall aesthetics of the curtain wall while reducing summer cooling energy consumption by 25%.

Hotels: Support for electric opening and closing systems or smart sensors enhances the user experience and complies with fire regulations.
