North American Latest Design Grill PVC Sliding Window

North American Latest Design Grill PVC Sliding Window

$45-85 /Square Meter

Variety	Basement Windows
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: shenzhen

Description

Product Attributes

Model No.: WD-PVCS019

Brand: Wendou

Warranty Service: More Than 5 Years

After-sales Service: Online Technical Support, Free Spare Parts, Onsite Installation, Onsite Training, Onsite Inspection

Application Scenario: Workshop, School, Mall, Hospital, Office Building, Apartment, Villa, Hotel

Design Style: Modern, Contemporary, European, Asian, Chinese, French

Place Of Origin: China

Additional Functionality: Windproof, Anti-Theft, Dust-Proof, Heat Insulation, Insect Control, Invisible, Soundproof

Material: Pvc, PVC Profile+Tempered glass+Hardware

PVC Screen Netting Material: PVC/Stainless steel/Fiberglass

Main Material: PVC+Glass+Accessories

Glass: Tempered glazing+Laminated glazing+Low-E glazing+Reflective glazing+Frosted glazing

Color: Customized color based on your needs

Hardware: Germany brand/Chinese brand/American brand

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/ per month

Certificate: NFRC/CE/AS2047

HS Code: 7610100000

Port: shenzhen

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

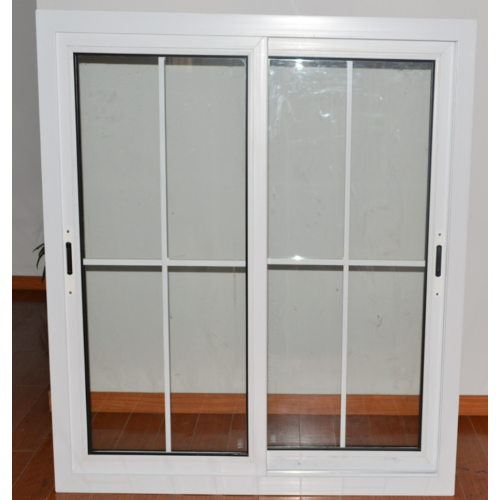

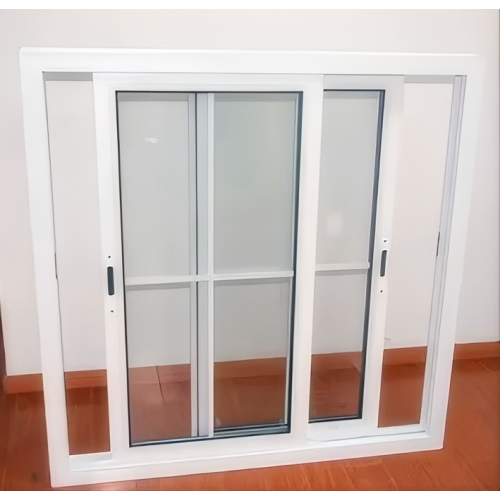

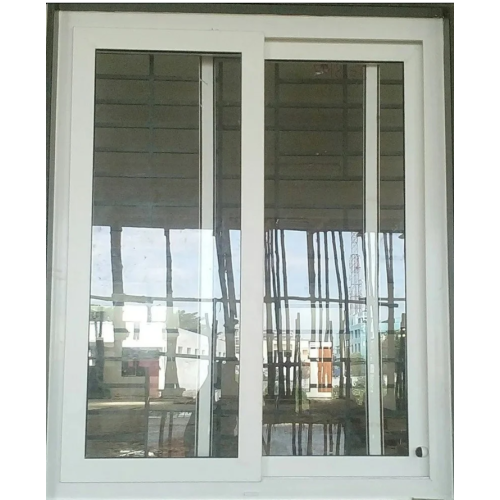

North American Latest Design Grill PVC Sliding Window

1. Core Features

The North American Latest Design Grill PVC Sliding Window combines modern aesthetics with practical functionality. It features a PVC (polyvinyl chloride) frame with a stainless steel reinforcement structure, integrating customizable grille patterns and a magnetic screen system.

Its core design includes:

Sliding Opening: The window sash slides along a horizontal track, saving space and offering convenient operation, suitable for narrow areas or high-frequency use scenarios.

Grille Decoration: Available in louvered or geometric grille patterns, combining ventilation control and aesthetics. This can simulate the visual effect of traditional wooden windows.

Magnetic screens: Made of stainless steel or plastic mesh, they are magnetically secured for easy removal and cleaning, and also provide insect protection and basic security.

2. Applicable Regions and Building Types

Climate Adaptability:

Temperate and Subtropical Regions: Such as the southern United States and coastal Mexico, the sliding design is suitable for rainy or humid environments. The PVC material is highly corrosion-resistant.

Optimized for Cold Regions: Some models utilize double-glazed windows (e.g., 5mm + 12mm air gap + 5mm) to improve thermal insulation, achieving a U-value as low as 1.8. W/(m²·K), suitable for cold regions such as Canada.

Building Types:

Residential Buildings: Villas, apartments, townhouses, etc., especially suitable for kitchens, balconies, bathrooms, etc.

Commercial and Public Buildings: Hotels, restaurants, schools, etc., achieving a balance between ventilation and privacy through grille design.

Industrial Buildings: Warehouses, factories, etc., PVC frames are resistant to chemical corrosion and have low maintenance costs.

3. Functional Roles

Ventilation and Lighting Optimization:

Grill Control: Adjustable grille angle enables directional ventilation, preventing strong winds from blowing directly into the room.

Light Transmittance: Utilizing low-iron glass (light transmittance ≥90%), combined with a grille design, it reduces glare while maintaining natural light.

Safety and Protection: Anti-theft Design: The magnetic screen window incorporates a steel mesh (0.8mm diameter), with a shear strength of up to 1200N. Combined with the rigid structure of the PVC frame, it enhances overall safety.

Child Safety Lock: Optional sliding window limiter prevents the window sash from fully opening, avoiding the risk of children climbing.

Energy Saving and Environmental Protection: Thermal Performance: Double-glazed configuration can reduce air conditioning load by 30%-40%, meeting US ENERGY standards. STAR® Certification Standard.

Material Sustainability: PVC frames are 90% recyclable, and their carbon emissions during production are 40% lower than aluminum alloys.

4. Material Types and Processes

Frame Materials:

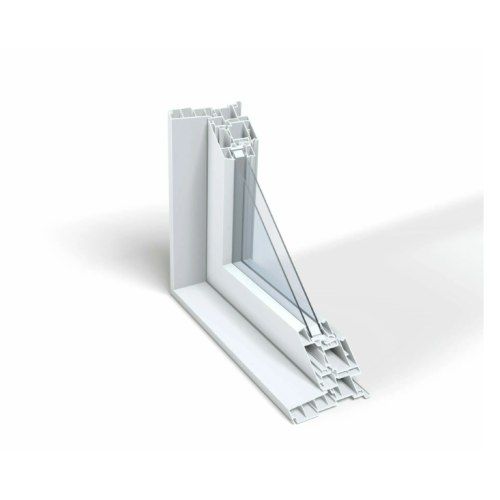

PVC Profiles: PVC Profile Windows use unplasticized polyvinyl chloride (uPVC), co-extruded to form a multi-cavity structure (typically 6-8 cavities), enhancing sound insulation and thermal insulation performance.

Stainless Steel Reinforcement: 304 stainless steel profiles (1.2-1.5mm thick) are embedded inside the frame, improving wind pressure resistance (up to 4000Pa).

Glass Configuration:

Double Insulating Glass: Filled with argon gas (thermal conductivity 0.016 W/(m·K)), combined with a Low-e coating (emissivity ≤0.15), achieving highly efficient thermal insulation.

Temperature Treatment: The compressive stress on the glass surface is ≥90MPa, forming small, blunt-angled particles upon breakage, meeting ANSI safety standards. Z97.1 Standard.

Sealing System: Ethylene propylene diene monomer (EPDM) rubber sealing strip: Weather resistant (-40℃ to +70℃), airtightness up to grade 8 (GB/T 7106-2008).

Brush Seal: Nylon brushes are installed at the bottom of the window sash to reduce dust and rainwater penetration.

5. PVC Sliding Windows Customization Options

Size and Shape:

Non-standard Customization:Supports irregularly shaped windows (e.g., curved, trapezoidal) with a maximum width of 3000mm and a height of 2500mm. An additional 15%-20% fee applies.

Multi-pane Combination:Configurable with 2-6 sliding windows to meet large-area window requirements.

Color and Surface Treatment:

Frame Colors:Standard colors include white, brown, and gray. RAL color card customization is supported (minimum order quantity 50㎡).

Grate Colors:Black, white, and bronze are available. Surface treatments include electrophoretic coating and powder coating.

Function Upgrades:

Smart Control:Integrated electric sliding system (supports remote control via APP). Optional weather sensor-activated closing function.

Sound Insulation Upgrade:Uses triple-layered laminated glass (6mm + 0.76mm PVB + 6mm), achieving a noise reduction of up to 35dB.

Certifications and Standards:Complies with US AAMA 101 standards and Canadian CSA standards. A440 standard, some models have passed European CE certification.

10-year warranty (frame), 5-year warranty (glass and hardware).

6. PVC Windows Market Case Studies and Data

North American Market: 2024 data shows that PVC sliding windows accounted for 35% of the residential window market, with grille designs accounting for 18%, and an annual growth rate of 6%.

Cost-effectiveness: Taking a 20㎡ residence as an example, using this type of window can reduce annual air conditioning costs by approximately $200 (calculated according to U.S. Department of Energy data), with an investment payback period of approximately 4-6 years.
