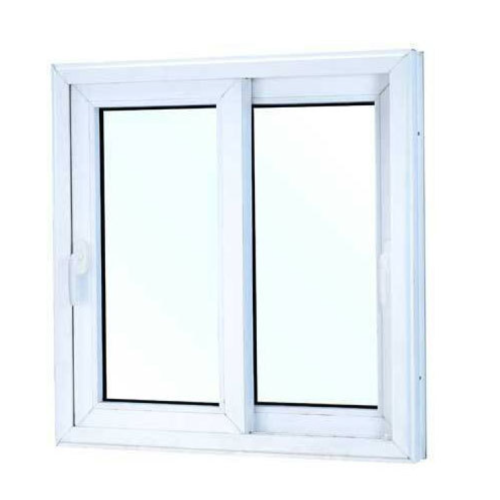

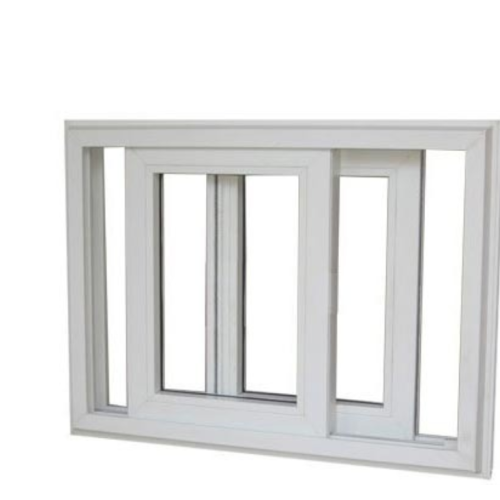

Horizontal Vertically Air-proof Sliding Windows

Horizontal Vertically Air-proof Sliding Windows

$45-85 /Square Meter

Variety	Sliding Windows
Contact Now

Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-PVCS017

Brand: Wendou

Warranty Service: More Than 5 Years

Border Material: Plastic

Material: Pvc

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

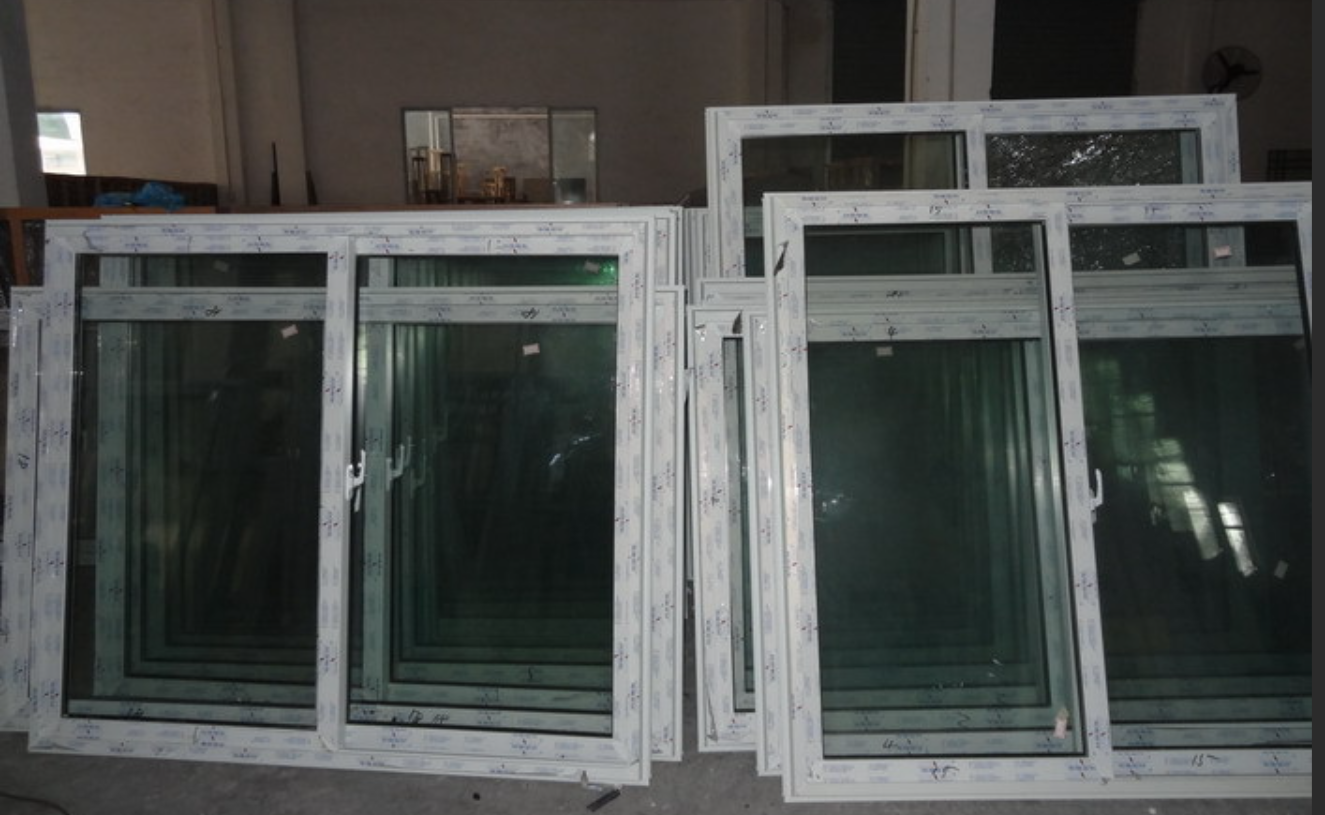

Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CFR,CIF,EXW

Product Description

Horizontal & Vertically Air-Proof Sliding Windows are window systems that open and close by sliding horizontally or vertically. Their core advantage lies in their airtight design, effectively preventing air infiltration, rainwater backflow, and noise interference.

1. Sliding Direction

Horizontal Sliding: The sash moves left and right along the plane of the window frame. This is commonly found in balconies, kitchens, and other locations.

Vertical Sliding: The sash moves up and down along the window frame. This is often used in buildings with limited space or requiring specialized ventilation.

2. PVC Sliding Windows: A fusion of simplicity and functionality

Integrated Design:

The sash and frame utilize a recessed sliding rail system. The track groove depth is generally between 15-20 mm, reducing the sliding resistance coefficient to less than 30% of traditional structures, significantly improving opening and closing smoothness.

Narrow Frame Design:

The window frame width is typically compressed to 60-100 mm, maximizing the visible glass area and improving indoor lighting.

Concealed drainage holes prevent rainwater backflow and maintain a clean appearance.

Surface Treatment:

Rich Colors: Available in over 200 RAL color options, with wood grain transfer printing (such as oak and walnut) available to simulate natural textures.

Surface Texture: A co-extrusion process creates a 0.2-0.5mm wear-resistant layer on the profile surface, increasing scratch resistance by three times.

3. Structural Design: A Technological Breakthrough in Airtightness

Multi-Cavity Profile:

UPVC or aluminum alloy profiles utilize a multi-chamber structure with a thermal break design, resulting in a thermal conductivity as low as 0.16 W/m·K (UPVC) or 1.8 W/(m·K) (aluminum alloy), significantly improving thermal insulation performance.

Sealing System:

Triple Sealing Design: EPDM rubber sealing strips are installed around the sash, combined with the track drainage holes, achieving an airtightness rating of GB/T 7106 standard level 5 or higher, approximately 40% higher than traditional structures.

Concealed Drainage: The drainage holes are concealed at the bottom of the window frame to prevent rainwater backflow and maintain a clean appearance.

Hardware System:

Utilizes stainless steel or zinc alloy hinges and locks, with a load capacity of over 80kg and tested for over 100,000 openings and closings, ensuring long-term deformation-free use.

4. Custom PVC Windows Design Types

Basic Sliding Windows:

Single-, double-, or triple-track designs are available, with an opening area of up to 50% of the window. Suitable for balcony partition doors, balcony enclosures, and kitchens.

Folding Sliding Windows:

The sashes fold and retract, allowing for an opening area of nearly 100%. Suitable for commercial spaces or public buildings requiring high ventilation.

Tilt-and-Slide Windows:

Combining tilt and slide functions, they support micro-ventilation mode to prevent strong winds. Suitable for bedrooms, children's rooms, and other environments.

Lift-and-Slide Windows:

Motor-controlled sash raising and lowering, with intelligent sensor support, are suitable for high-rise buildings or spaces requiring barrier-free design.

5. PVC Profile Windows Material Advantages

UPVC Material:

Weather Resistance: UV and corrosion resistant, suitable for coastal areas or high-humidity regions, with a service life of up to 20-30 years.

Environmentally Sustainable: 100% recyclable, with production energy consumption only one-third that of aluminum alloy, meeting green building standards (such as LEED and BREEAM).

Aluminum Alloy Material:

High Strength: Window frame wall thicknesses reach 1.4-2.0 mm, suitable for high-rise buildings or areas with high wind pressure.

Various Surface Finishes: Available in powder coating, anodizing, or fluorocarbon spraying, offering excellent weather resistance.

6. Compatible Building Types

Residential Buildings:

Low-Energy Residential Buildings: Combined with triple-glazed, double-chambered glass and warm-edge spacers, UPVC can achieve Passive House standards (U-value ≤ 0.8 W/m²·K).

Coastal Residential Buildings: UPVC's salt spray corrosion resistance makes it the preferred choice for maritime climates, with a wind pressure resistance of up to 5000 Pa (typhoon level 12).

Commercial Buildings:

Office Buildings: Narrow bezel designs enhance the overall aesthetics of curtain walls while reducing air conditioning energy consumption (cooling energy consumption is reduced by 25% in summer).

Hotels: Support for electric opening and closing systems or smart sensors enhances the user experience and complies with fire regulations.

Public Buildings:

Schools and Hospitals: UPVC's non-toxic material and antibacterial surface treatment meet public health standards, while offering excellent sound insulation (RW ≥ 35 dB), creating a quiet environment.

7. Suitable Buyer Type: Targeted Matching

High-End Residential Developers:

Needs: Pursue a combination of aesthetic design and high performance to increase project premiums.

Recommendation: Choose a wood-grain finish with a curved window top, paired with triple-glazed, dual-chamber Low-E glass, to meet Passive House certification requirements.

Commercial Real Estate Operators:

Needs: Reduce long-term operation and maintenance costs and improve the building's energy efficiency rating.

Recommendation: Choose a minimalist bezel design with an electric opening and closing system, supporting BMS (Building Management System) integration for real-time energy consumption data monitoring.
